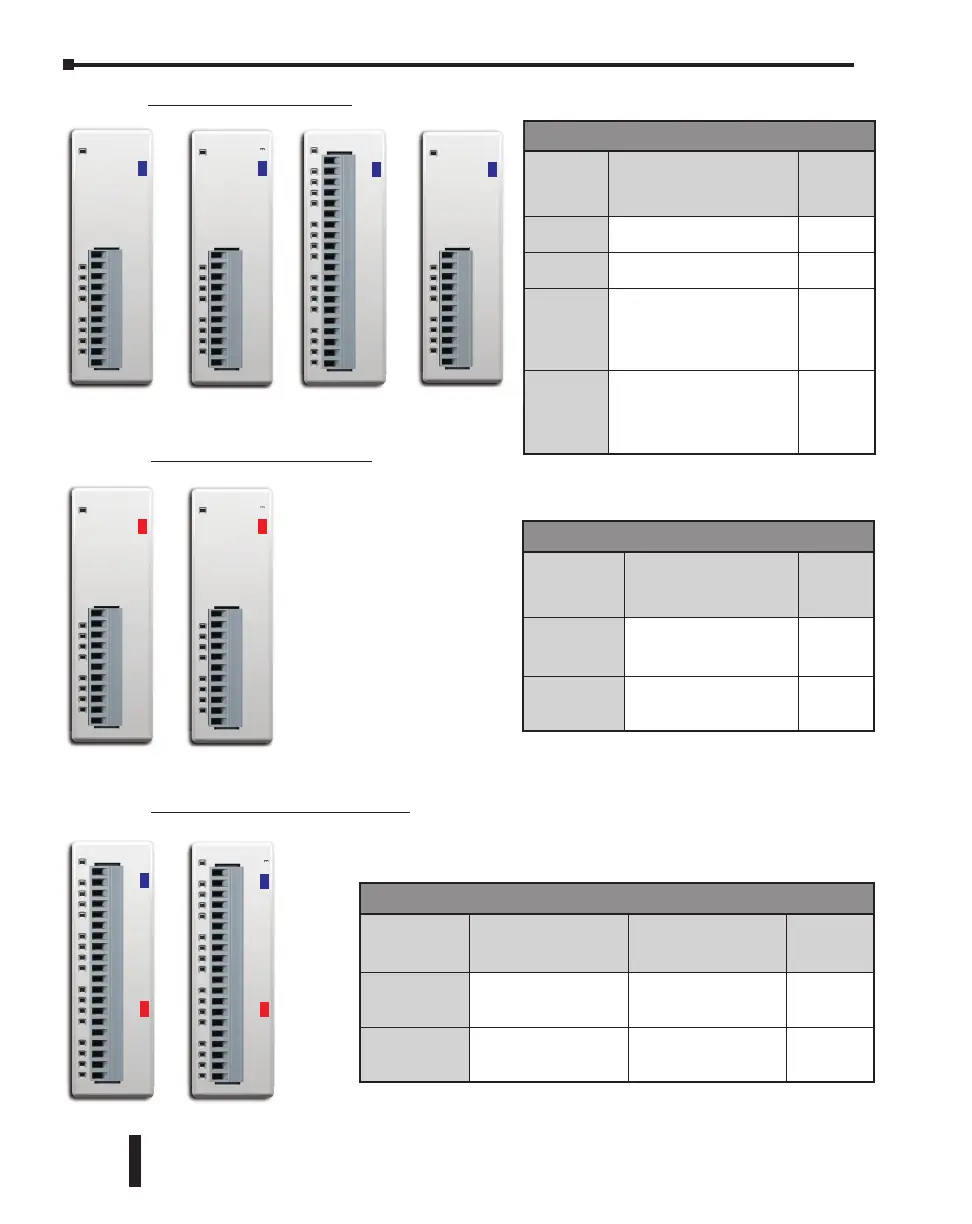

Analog Input Modules
Part
Number
Analog Input Types
External
Power
Required
C0-04AD-1
4 channel, current
(0–20 mA), 13-bit
24VDC
C0-04AD-2
4 channel, voltage
(0–10 V), 13-bit
24VDC
C0-04RTD
4 channel RTD input (0.1
degree °C/°F resolution),
or resistive input
(0–3125 q, 0.1 q or 0.01 q
resolution)
None
C0-04THM
4 channel thermocouple input
(0.1 degree °C/°F resolution),
or voltage input
(-156.25 mV to 1.25 V, 16-bit)
None
Analog Output Modules
Part Number Analog Output Types
External
Power
Required
C0-04DA-1
4 channel, current
sourcing (4–20 mA), 12-bit
24VDC
C0-04DA-2
4 channel,
voltage (0–10 V), 12-bit
24VDC
Analog Combo I/O Modules
Part Number Analog Input Type Analog Output Type
External
Power
Required
C0-4AD2DA-1
4 channel, current
(0–20 mA), 13-bit
2 channel, current
sourcing (4–20 mA),
12-bit
24VDC
C0-4AD2DA-2
4 channel, voltage
(0–10 V), 13-bit
4 channel, voltage
(0–10 V), 12-bit
24VDC
C0-04RTD
Pt, Cu, Ni, RES
INPUT
COM
R1+
R1–
R1C
COM
COM
R2+
R2–
R2C
COM
COM
R3+
R3–
R3C
COM
COM
R4+
R4–
R4C
COM
C0-04RTD
CH1
CH2
CH3
CH4
0V
0V
0V
0V
0V
24V
0V
C0-04AD-1
0-20mA
INPUT
CH1
CH2
CH3
CH4
0V
0V
0V
0V
0V
24V
0V
C0-04AD-2
0-10V
INPUT
COM
TC1+
TC1–
TC2+
TC2–
COM
TC3+
TC3–
TC4+
TC4–
COM
C0-04THM
J,K,E,R,S,T,B,N,C,mV
INPUT
C0-04AD-1 C0-04AD-2 C0-04THM
Analog Input Modules
CH1
CH2
CH3
CH4
0V
0V
0V
0V
0V
24V
0V
C0-04DA-1
4-20mA
OUTPUT
CH1
CH2
CH3
CH4
0V
0V
0V
0V
0V
24V
0V
C0-04DA-2
0-10V
OUTPUT
Analog Output Modules
C0-04DA-1
C0-04DA-2
C0-4AD2DA-1
0-20mA In
4-20mA Out
OUTPUT
INPUT
CH1
0V
CH2
0V
CH3
0V
CH4
0V
CH1
0V
CH2
0V
24V
0V
C0-4AD2DA-2
0-10V
OUTPUT
INPUT
CH1
0V
CH2
0V
CH3
0V
CH4
0V
CH1
0V
CH2
0V
24V
0V
Analog Combo I/O Modules
C0-4AD2DA-1
C0-4AD2DA-2
