AutomationDirect CLICK Series User Manual

Input Specifications
Inputs per Module
8 (Sink/Source)
Operating Voltage Range
12–24 VDC
Input Voltage Range
10.8–26.4 VDC
Input Current
Typ 5mA @ 24VDC
Maximum Input Current
7mA @ 26.4 VDC
Input Impedance
4.7 kq @ 24VDC
ON Voltage Level
> 8.0 VDC
OFF Voltage Level
< 3.0 VDC
Minimum ON Current
1.4 mA
Maximum OFF Current
0.5 mA
OFF to ON Response
Max 3.5 ms, Typ 2ms
ON to OFF Response
Max 4 ms, Typ 2.5 ms
Status Indicators
Logic Side (8 points, green LED)
Power Indicator (green LED)
Commons
2 (4 points/common) Isolated
Bus Power Required (24VDC)
Max. 30mA (All Inputs On)
Terminal Block Replacement
AutomationDirect p/n C0-8TB
Weight
2.8 oz (80g)

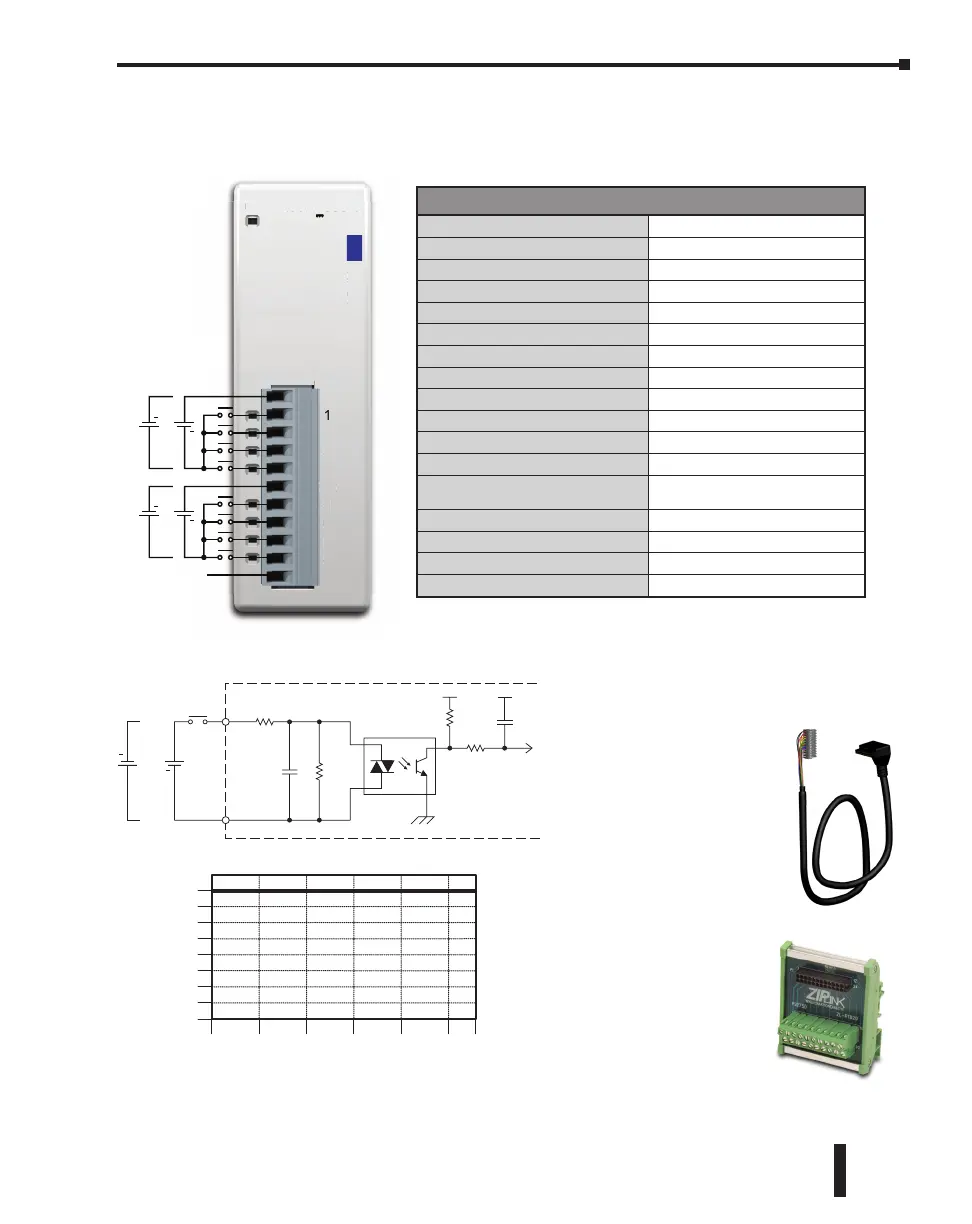

C0-08ND3 – 8-Point Sink/Source DC Input Module
8-point 12–24 VDC current sinking or sourcing input module, 2 commons, isolated,
removable terminal block included.
0
Surrounding Temperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131
°F
2
4
6
8
Points
Input Module Temperature Derating Chart
0
INPUT
COM
Internal Module Circuitry
Optical Isolator
24 VDC
+
+
Equivalent Input Circuit
C2
7
3
2
5
4
8
6
1
C1
C0-08ND3
12-24V 2.5-5mA
PWR
INPUT
C
2
7
3
2
5
4
8
6
1
C1
C0
-
08ND3
12-24V 2.5-5mA
PWR
INPU
T
12-24VDC
+
+
N.C.
N.C. = Not Connected
12-24VDC
+
+
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
ZL-RTB20
20-pin feed-through
connector module
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
Wiring Diagram
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–115
Chapter 2: Specifications
