Built-in I/O Specifications - Inputs
Inputs per Module
8 (Sink/Source)
Operating Voltage Range
24VDC
Input Voltage Range
21.6–26.4 VDC
Input Current
X1-2: Typ 5mA @ 24VDC
X3-8: Typ 4mA @ 24VDC
Maximum Input Current
X1-2: 6.0 mA @ 26.4 VDC
X3-8: 5.0 mA @ 26.4 VDC
Input Impedance
X1-2: 4.7 kq @ 24VDC
X3-8: 6.8 kq @ 24VDC
ON Voltage Level
X1-2: > 19VDC
X3-8: > 19VDC
OFF Voltage Level
X1-2: < 4VDC
X3-8: < 7VDC
Minimum ON Current
X1-2: 4.5 mA
X3-8: 3.5 mA
Maximum OFF Current
X1-2: 0.1 mA
X3-8: 0.5 mA
OFF to ON Response
X1-2: Typ 5μs Max 20μs
X3-8: Typ 2ms Max 10ms
ON to OFF Response
X1-2: Typ 5μs Max 20μs
X3-8: Typ 3ms Max 10ms
Status Indicators
Logic Side (8 points, green LED)
Commons
2 (4 points/common) Isolated
General Specifications
Current Consumption at 24VDC
140mA
Terminal Block Replacement Part No.
C0-16TB
Weight
5.6 oz (160g)

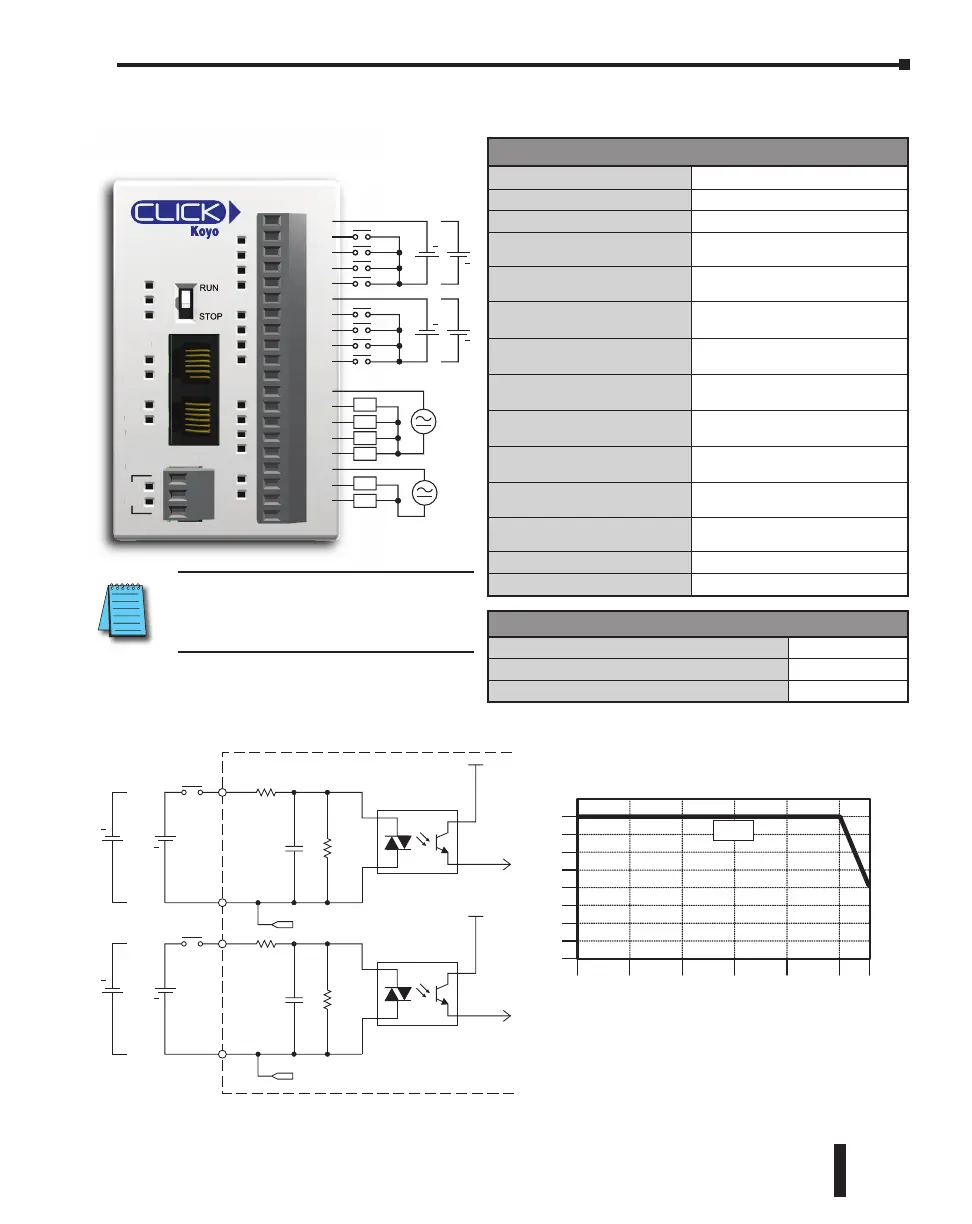

C0-01DR-D – 8 DC Input/6 Relay Output Micro PLC
RS-485
PORT3
PORT2
PORT1
PWR
RUN
ERR
TX2
RX2
TX1
RX1
TX3
RX3
-4
RT
RT
RT
TX
X2
TX
X1
TX
X3
6 - 240V
+ +
24VDC
L
6-27VDC
L
L
L
L
L
6 - 240V
6-27VDC
C0-01DR-D
C1
X1
X2
X3
X4
C2
X5
X6
X7
X8
C3
Y1
Y2
Y3
Y4
C4
Y5
Y6
0
Surrounding Air Temperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131
2
4
6
8
C0-01DR-D Temperature Derating Chart
0
* Use every other input.
*
Inputs
INPUT
X1-X4
Typical
COM
Internal Module Circuitry
Optical Isolator
24 VDC
+
Equivalent Input Circuit
INPUT
X5-X8
Typical
COM
Optical Isolator
24 VDC
+
C1
C2
To X6-X8
commons
To X2-X4
commons
Wiring Diagram
NOTE: When using Standard PLCs, you
must use CLICK programming software
version V1.20 or later.
