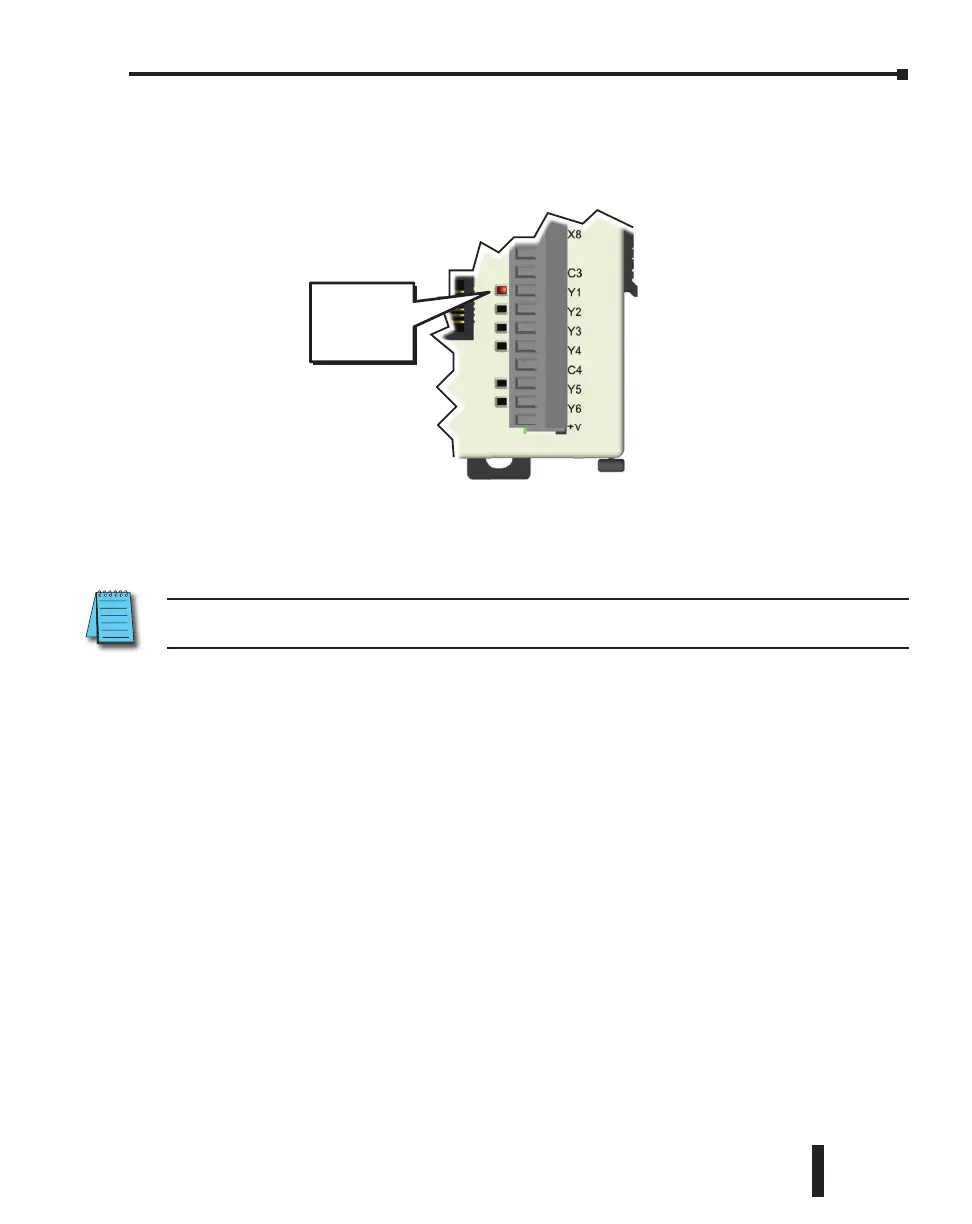

Step 10: Y001 Output On?
CLICK PLC output Y001 (labeled Y1 on the PLC unit) will turn on 5 seconds after you write
the ON state to the C1 bit using Data View in the Edit mode.
If you missed viewing the transition of the Y001 status LED from OFF to ON, write an OFF
state to the C1 bit and then an ON state in the Data View Monitor to do it again.
NOTE: Also, try changing the status of the internal C2 bit. The results should be the same because the C2
bit is in parallel with the C1 bit. The ladder logic reads: “Enable timer T1, if either C1 or ‘C2 is true.”
Congratulations!
You have now learned how to create, compile and transfer a ladder logic project to a CLICK
PLC, and then run and test the project. There are additional instructions available for the
CLICK PLC. Please refer to the programming software online help topics for details on these
instructions.
Again, thank you very much for using the CLICK PLC system.
Y001
ON
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
1–27
Chapter 1: Getting Started
