Output Specifications
Outputs per Module
4
Operating Voltage Range
6–24 VDC / 6–240 VAC
Peak Voltage
24VDC / 264VAC
Output Type
Relay, form A (SPST)
AC Frequency
47–63 Hz
Maximum Current
10A / point, 10A / common
Minimum Load Current
100mA @ 5VDC
Maximum Inrush Current
16A for 10ms
OFF to ON Response
< 15ms
ON to OFF Response
< 15ms
Status Indicators
Logic Side (4 points, red LED)
Power Indicator (green LED)
Commons
4 (1 point/common) Isolated
Bus Power Required (24VDC)
Max. 120mA (All Outputs On)
Protection Circuit
Not built into the module - Install
protection elements such as external fuse.
Terminal Block Replacement
AutomationDirect p/n C0-8TB-1
Weight
5.22 oz (148g)
Typical Relay Life (Operations)
at Room Temperature
Voltage & Load Type Relay Life
24VDC, 10A Resistive 120,000 cycles
24VDC, 10A Inductive 60,000 cycles
110VAC, 10A Resistive 120,000 cycles
110VAC, 10A Inductive 35,000 cycles
220VAC, 10A Resistive 120,000 cycles
220VAC, 10A Inductive 35,000 cycles
ON to OFF = 1 cycle

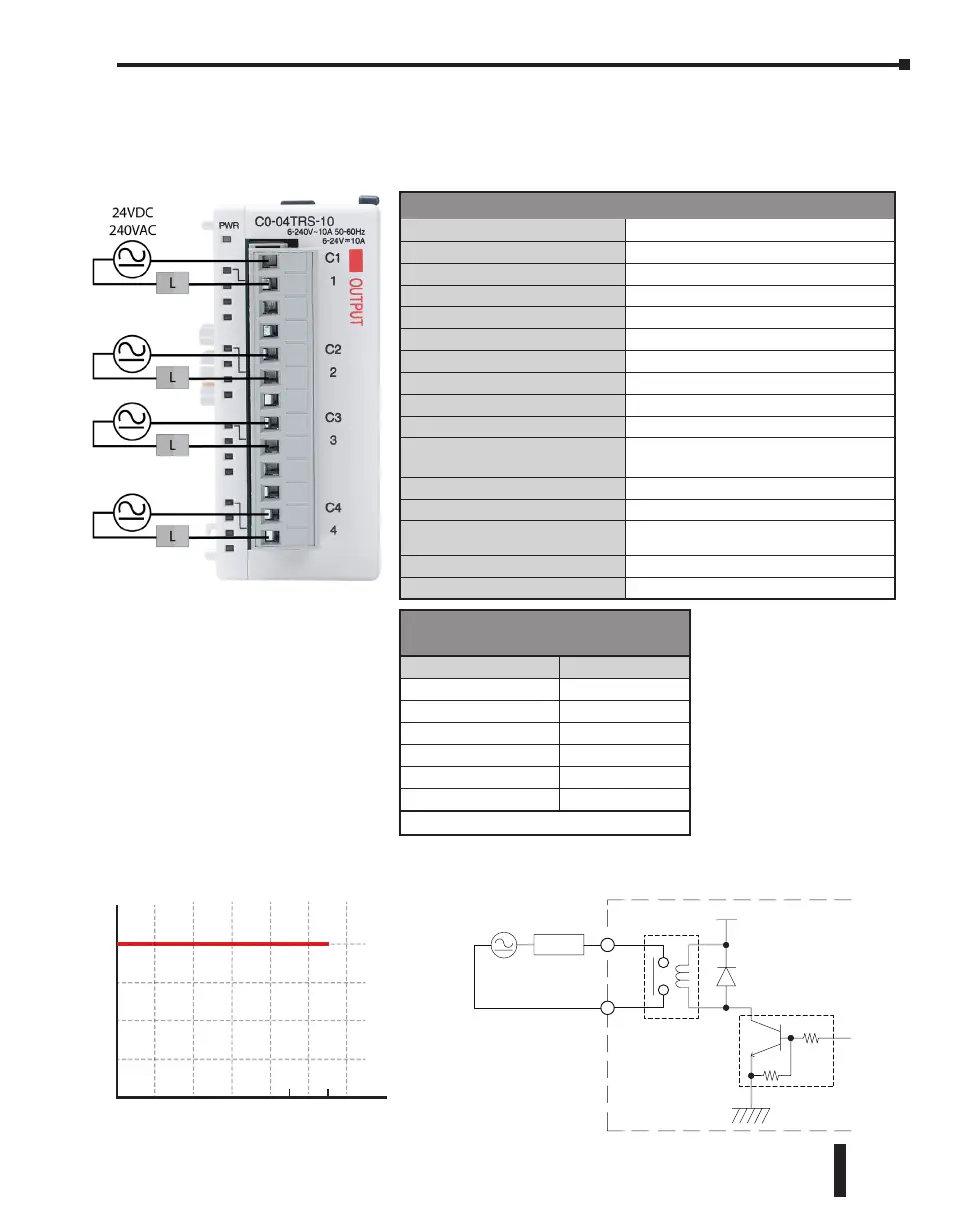

C0-04TRS-10 – 4-Point Relay Output Module
4-point 6–240 VAC / 6–24 VDC Isolated relay output module, 4 Form A (SPST) relays,
4 isolated commons, 10A/point, removable terminal block included.
Wiring Diagram
Output Points
Ambient Temperature (ºC)
4
3
2
1
0
0 10 20 30 40 50 60
45 55
24VDC
24V
Internal Module Circuitry
240VDC
OUTPUT
Load
COM
Equivalent Output CircuitOutput Temperature Derating Chart
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–127
Chapter 2: Specifications

AutomationDirect CLICK Series Specifications
