AutomationDirect CLICK Series User Manual

Input Specifications
Inputs per Module
8
Operating Voltage Range
100–120 VAC
Input Voltage Range
80–144 VAC
AC Frequency
47–63 Hz
Input Current
Typ 8.5 mA @ 100VAC (50Hz)
Typ 10mA @ 100VAC (60Hz)
Maximum Input Current
16mA @ 144VAC
Input Impedance
15kq (50 Hz), 12kq (60Hz)
ON Voltage Level
> 70VAC
OFF Voltage Level
< 20VAC
Minimum ON Current
5mA
Maximum OFF Current
2mA
OFF to ON Response
< 40ms
ON to OFF Response
< 40ms
Status Indicators
Logic Side (8 points, green LED)
Power Indicator (green LED)
Commons
2 (4 points/common) Isolated
Bus Power Required (24VDC)
Max. 30mA (All Inputs On)
Terminal Block Replacement
AutomationDirect p/n C0-8TB
Weight
2.8 oz (80g)

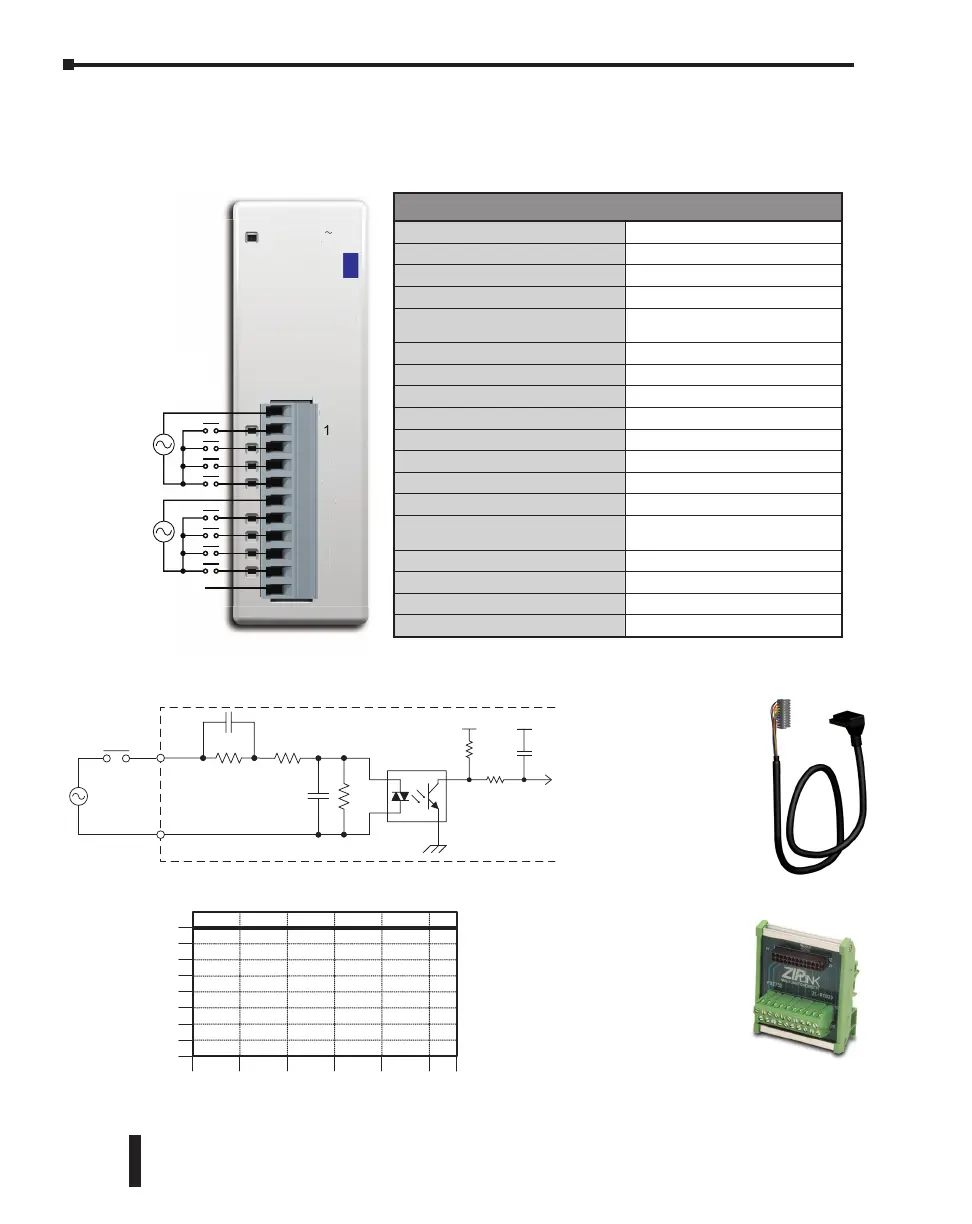

C0-08NA – 8-Point AC Input Module
8-point 100–120 VAC input module, 2 commons, isolated, removable terminal block included.
0
Surrounding Temperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55
°C
131
°F
2
4
6
8
Points
Input Module Temperature Derating Chart
0
C2
7
3
2
5
4
8
6
1
C1
C0-08NA
100-120V 10mA
50-60Hz
PWR
〜
INPUT
C2
7
3
2
5
4
8
6
1
C1
C0
-
08N
A
100
-
120
V
10
mA
5
0
-
60
H
z
PWR
〜
INPUT
N.C.
100 - 120VAC
100 - 120VAC
N.C. = Not Connected
INPUT
COM
100-120 VAC
Internal Module Circuitry
Optical Isolator
Equivalent Input Circuit
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
ZL-RTB20
20-pin feed-through
connector module
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
Wiring Diagram
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–120
Chapter 2: Specifications
