AutomationDirect CLICK Series User Manual

General Specifications
Field to Logic Side Isolation
No isolation
External DC Power Required
None
Bus Power Required (24VDC)
25mA
Thermal Dissipation
2.047 BTU per hour
Terminal Block Replacement
AutomationDirect p/n C0-16TB
Weight
3.1 oz (86g)
Input Specifications
Inputs per Module
4
Common Mode Range
±2.5 V
Common Mode Rejection
100dB at DC and 100 dB at 50/60 Hz
Input Impedance
>5Mq
Maximum Ratings
Fault protected inputs to ±50VDC
Resolution
±0.1°C or °F, 0.1 q or 0.01 q
Input Ranges*
Pt100: -200 to 850°C (-328 to 1562°F)
Pt1000: -200 to 595°C (-328 to 1103°F)
jPt100: -100 to 450°C (-148 to 842°F)
10q Cu: -200 to 260°C (-328 to 500°F)
25q Cu: -200 to 260°C (-328 to 500°F)
120q Ni: -80 to 260°C (-112 to 500°F)
0 to 3125.0 q : Resolution 0.1 q
0 to 1562.5 q : Resolution 0.1 q
0 to 781.2 q : Resolution 0.1 q
0 to 390.62 q : Resolution 0.01 q
0 to 195.31 q : Resolution 0.01 q
RTD Linearization
Automatic
Excitation Current (All
Ranges)
210μA
C0-04RTD – 4-Channel RTD Input Module
4-channel RTD input module, 16-bit resolution (±0.1 degrees Celsius or Fahrenheit), supports:
Pt100, Pt1000, jPT100, Cu10, Cu25, Ni120. Resistive ranges also supported, removable
terminal block included.
C0-04RTD
Pt, Cu, Ni, RES
INPUT
COM
R1+
R1–
R1C
COM
COM
R2+
R2–
R2C
COM
COM
R3+
R3–
R3C
COM
COM
R4+
R4–
R4C
COM
C0-04RTD
Pt,
C
u, Ni, RE
S
INPUT
COM
R1
+
R
1–
R
1
C
CO
M
CO
M
R2
+
R2
–
R
2
C
COM
COM
R
3+
R
3–
R
3C
CO
M
CO
M
R
4+
R4
–
R
4
C
COM
Rn+
Rn-
RnC
Connect
unused
channels

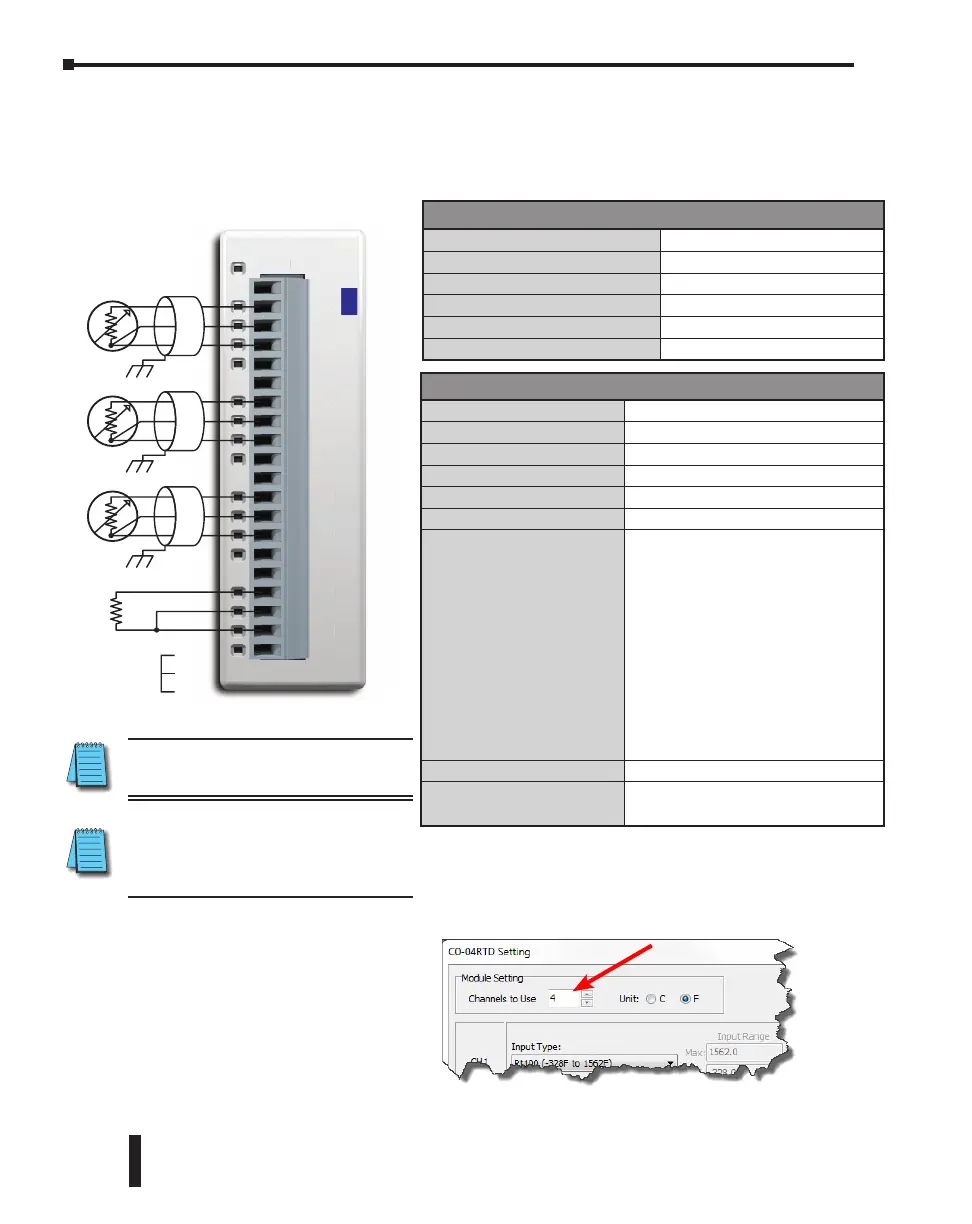

Wiring Diagram
* While it is possible to use different resistive ranges, we recommend using the
narrowest range that covers the resistance being measured. For example,
if measuring approximately 100 ohms resistance, use the 0 to 195.31ohms
range. While the resolution is the same as the 0 to 390.62 ohms range,
output RMS noise will be lower and stability will be improved.
These COM terminals are
isolated.
NOTE: The C0-04RTD module cannot
be used with thermistors.
NOTE: When using this module you
must also use CLICK programming
software and PLC firmware version
V1.40 or later.
If there are any unused channels,
make sure to select the correct
number of channels that you
actually use in the C0-04RTD
Setting window.
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–138
