AutomationDirect CLICK Series User Manual

Input Specifications
Inputs per Module
16 (Sink/Source)
Operating Voltage Range
24VDC
Input Voltage Range
21.6–26.4 VDC
Input Current
Typ 4.0 mA @ 24VDC
Maximum Input Current
5.0 mA @ 26.4 VDC
Input Impedance
6.8 kq @ 24VDC
ON Voltage Level
> 19VDC
OFF Voltage Level
< 7VDC
Minimum ON Current
3.5 mA
Maximum OFF Current
0.5 mA
OFF to ON Response
Max. 10ms Typ 2ms
ON to OFF Response
Max. 10ms Typ 3ms
Status Indicators
Logic Side (16 points, green LED)
Power Indicator (green LED)
Commons
4 (4 points/common) Isolated
Bus Power Required (24VDC)
Max. 40 mA (All Inputs On)
Terminal Block Replacement
AutomationDirect p/n C0-16TB
Weight
3.2 oz (90g)

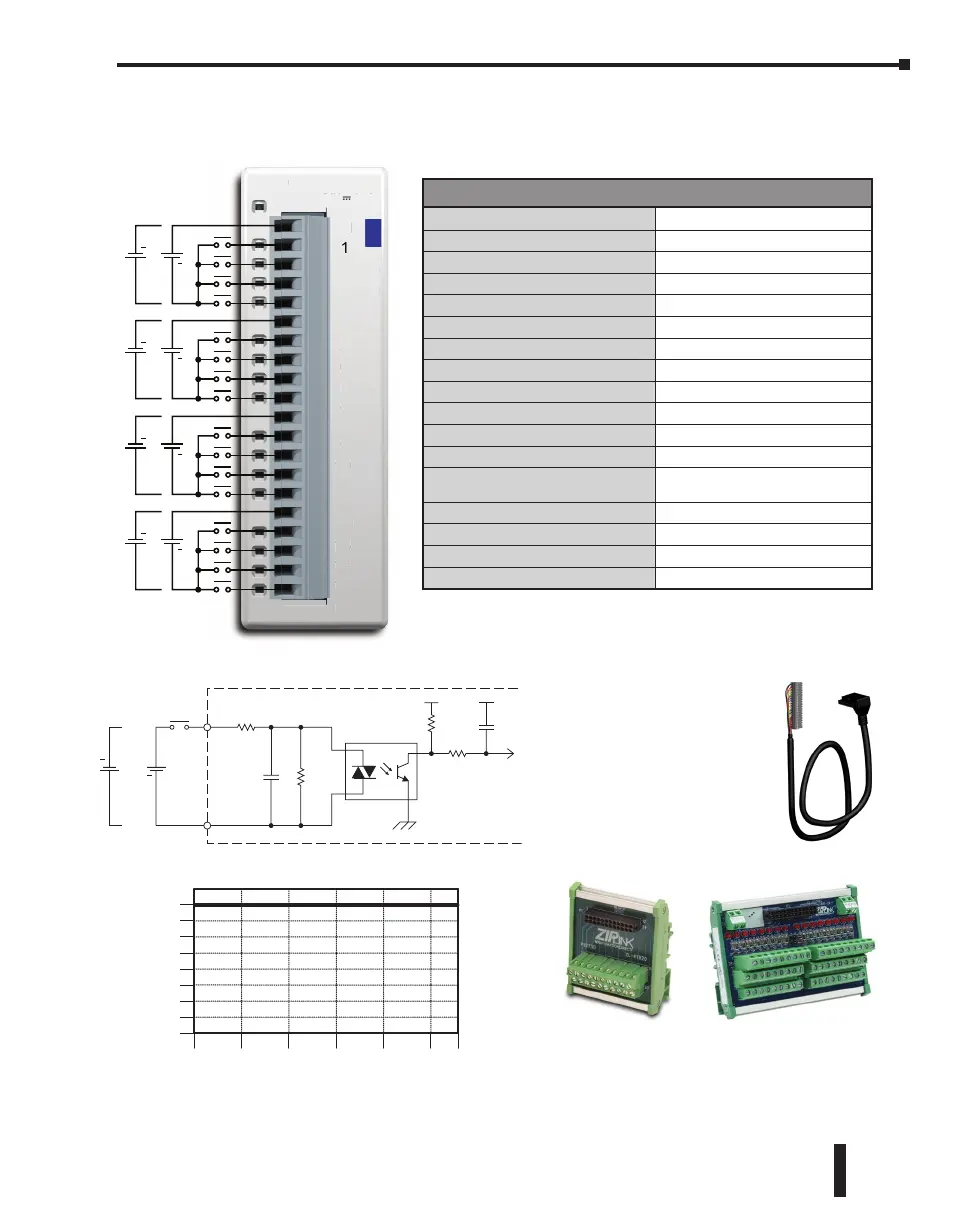

C0-16ND3 – 16-Point Sink/Source DC Input Module
16-point 24VDC current sinking or sourcing input module, 4 commons, isolated, removable
terminal block included.
12
C4
14
10
9
11
15
16
13
C3
C2
7
3
2
5
4
8
6
1
C1
C0-16ND3
24V 4mA
PWR
INPUT
12
C
4
1
4
10
9
11
15
16
13
C
3
C
2
7
3
2
5
4
8
6
1
C1
C0
-1
6
ND
3
24V 4mA
PWR
I
NPUT
24VDC
+
+
24VDC
+
+
24VDC
+
+
24VDC
+
+
0
Surrounding Temperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131
°F
4
8
12
16
Points
Input Module Temperature Derating Chart
0
INPUT
COM
Internal Module Circuitry
Optical Isolator
24 VDC
+
+
Equivalent Input Circuit
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
20-pin connector cable
ZL-C0-CBL20 (0.5 m length)
ZL-C0-CBL20-1 (1.0 m length)
ZL-C0-CBL20-2 (2.0 m length)
Wiring Diagram
ZL-LTB16-24-1
sensor input
module
ZL-RTB20 20-pin
feed-through
connector module
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–117
Chapter 2: Specifications
