AutomationDirect CLICK Series User Manual

Output Specifications
Outputs per Module
4
Operating Voltage Range
6–27 VDC / 6–240 VAC
Output Voltage Range
5–30 VDC / 5–264 VAC
Output Type
Relay, form C (SPDT)
AC Frequency
47–63 Hz
Maximum Current
7A / point, 7A / common
Minimum Load Current
100mA @ 5VDC
Maximum Leakage Current
0.1 mA @ 264VAC
Maximum Inrush Current
12A
OFF to ON Response
< 15ms
ON to OFF Response
< 15ms
Status Indicators
Logic Side (4 points, red LED)
Power Indicator (green LED)
Commons
4 (1 point/common) Isolated
Bus Power Required (24VDC)
Max. 100mA (All Outputs On)
Protection Circuit
Not built into the module - Install protection
elements such as external fuse.
Terminal Block Replacement
AutomationDirect p/n C0-16TB
Weight
4.4 oz (125g)
Typical Relay Life (Operations)
at Room Temperature
Voltage & Load Type Relay Life
30VDC, 7A Resistive 100,000 cycles
250VAC, 7A Resistive 100,000 cycles
250VAC, 4.9 A Solenoid 90,000 cycles
250VAC, 2.9 A Solenoid 100,000 cycles
ON to OFF = 1 cycle

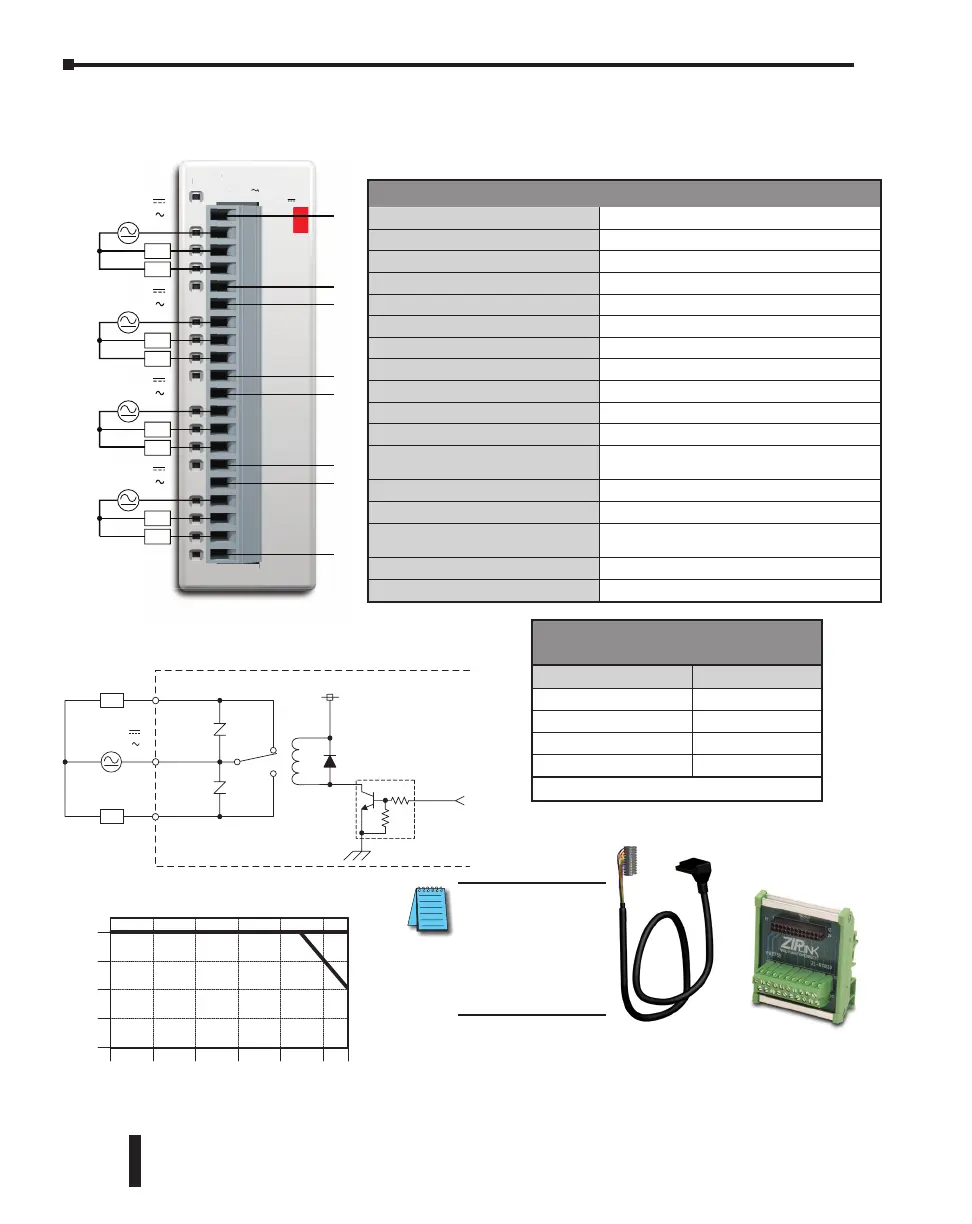

C0-04TRS – 4-Point Relay Output Module
4-point 6–240 VAC / 6–27 VDC Isolated relay output module, 4 Form C (SPDT) relays,
4 isolated commons, 7 A/point, removable terminal block included.
0
Surrounding Air Te mperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131 °F
1
2
3
4
Points
Output Temperature Derating Chart
0
5 A/pt.
7 A/pt.
*
*
No derating when the load current is 5A
or less for each output point.
ZIPLink Pre-Wired PLC Connection
Cables and Modules
for CLICK PLC
ZL-RTB20
20-pin feed-through
connector module
20-pin connector cable
ZL-C0-CBL20 (0.5 m length)
ZL-C0-CBL20-1 (1.0 m length)
ZL-C0-CBL20-2 (2.0 m length)
C0-04TRS
250V 7A 50-60Hz
30V 7A
OUTPUT
PWR
〜
C
0-04TR
S
250V 7A 50-
60Hz
30V
7A
O
UTPU
T
PWR
V
7
V 7
L
L
6 - 27VDC
6 - 240VAC
L
L
6 - 27VDC
6 - 240VAC
L
L
6 - 27VDC
6 - 240VAC
L
L
6 - 27VDC
6 - 240VAC
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
NC1
NO1
C1
NC2
NO2
C2
NC3
NO3
C3
NC4
NO4
C4
N.C. = Not Connected
Wiring Diagram
L
Internal Module Circuitry
Equivalent Output Circuit
NO
COM
NC
L
6-27 VDC
6-240 VAC
* Varistor Joule Rating: 20 J
*
*
NOTE: The CO-04TRS
relay output module
is derated to 2A per
point maximum when
used with the ZIPLink
wiring system.
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–126
Chapter 2: Specifications
