AutomationDirect CLICK Series User Manual

Typical Relay Life (Operations)
at Room Temperature
Voltage & Load Type Relay Life
24VDC, 3A Resistive 100,000 cycles
24VDC, 3A Inductive 50,000 cycles
110VAC, 3A Resistive 100,000 cycles
110VAC, 3A Inductive 25,000 cycles
220VAC, 3A Resistive 100,000 cycles
220VAC, 3A Inductive 25,000 cycles
ON to OFF = 1 cycle
24VDC
240VAC
L
L
L
L
L
L
L
L
Wiring Diagram
Output Specifications
Outputs per Module
8
Operating Voltage Range
6–27 VDC / 6–240 VAC
Peak Voltage
30 VDC / 264 VAC
Output Type
Relay, form A (SPST)
AC Frequency
47–63 Hz
Maximum Current (resistive)
3A /point, 6A /common
Minimum Load Current
5mA @ 5VDC
Maximum Inrush Current
5A for 10ms
OFF to ON Response
< 15ms
ON to OFF Response
< 15ms
Status Indicators
Logic Side (8 points, red LED)
Power Indicator (green LED)
Commons
4 (2 points/common) Isolated
Bus Power Required (24VDC)
Max. 90mA (All Outputs ON)
Protection Circuit
Not built into the module - Install
protection elements such as external fuse.
Terminal Block Replacement
AutomationDirect p/n C0-8TB-1
Weight
4.12 oz (117g)
Output Points
Ambient Temperature (ºC)
8
6
4
2
0
0 10 20 30 40 50 60
45 55
24VDC
24V
Internal Module Circuitry
240VDC
OUTPUT
Load
COM
Equivalent Output CircuitOutput Temperature Derating Chart

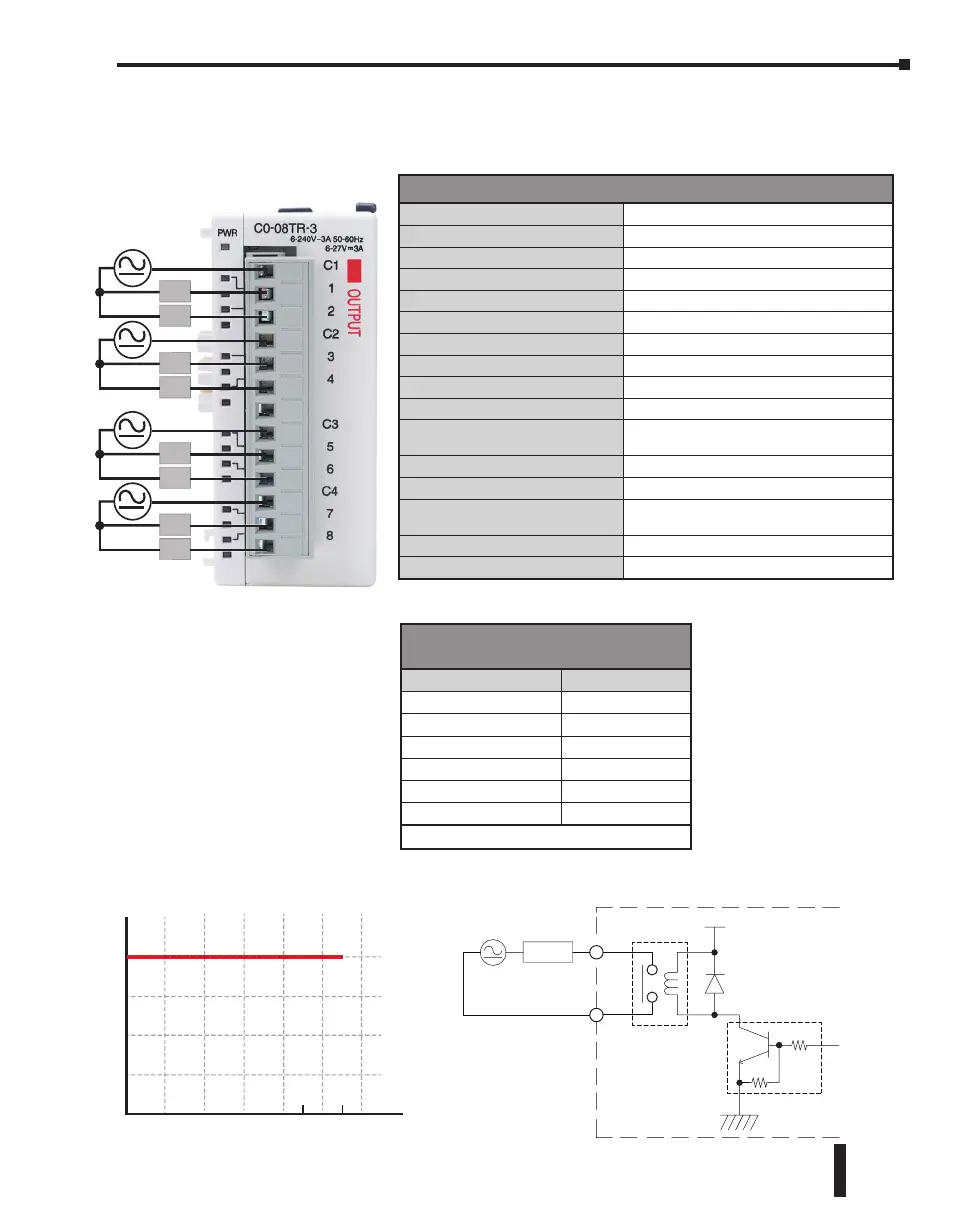

C0-08TR-3 – 8-Point Relay Output Module
8-point 6–240 VAC /6–27 VDC relay output module, 8 Form A (SPST) relays, 4 commons,
isolated, 3A/point, removable terminal block included.
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–129
Chapter 2: Specifications
