AutomationDirect CLICK Series User Manual

Output Specifications
Outputs per Module
8 (Source)
Operating Voltage Range
12–24VDC
Output Voltage Range
9.6–30 VDC
Maximum Output Current
0.3 A/point , 1.2 A/common
Minimum Output Current
0.5 mA
Maximum Leakage Current
0.1 mA @ 30.0 VDC
On Voltage Drop
1.5 VDC @ 0.3 A
Maximum Inrush Current
1A for 10ms
OFF to ON Response
< 1ms
ON to OFF Response
< 1ms
Status Indicators
Logic Side (8 points, red LED)
Power Indicator (green LED)
Commons
1 (8 points/common)
Bus Power Required (24VDC)
Max. 50mA (All Outputs On)
Terminal Block Replacement
AutomationDirect p/n C0-8TB
Weight
2.8 oz (80g)

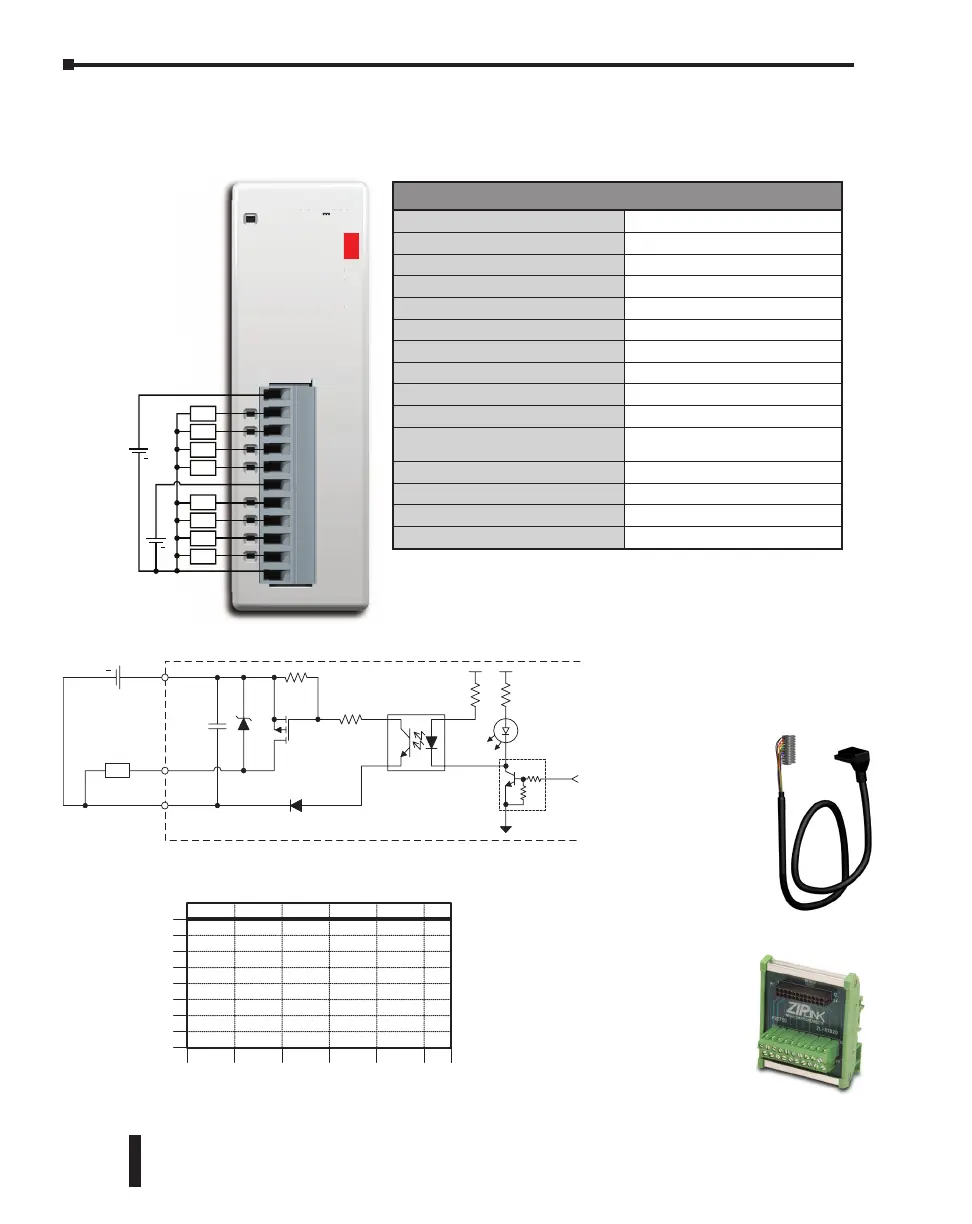

C0-08TD2 – 8-Point Sourcing DC Output Module
8-point 12–24VDC current sourcing output module, 1 common, 0.3 A/pt, removable terminal
block included.
0
Surrounding Temperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131
°F
2
4
6
8
Points
Output Module Temperature Derating Chart
0
C0-08TD2
12-24V 0.3A
PWR
OUTPUT
C0
-
08TD2
12-24V 0.3
A
PWR
O
UTPU
T
12 - 24VDC
L
L
L
L
L
L
L
L
+
12 - 24VDC
+
V2
7
3
2
5
4
8
C
6
1
V1
12-24 VDC
L
Internal Module Circuitry
Optical Isolator
+
Equivalent Output Circuit
OUTPUT
COM
+V
* Zener Diode Power Dissipation: 200 mW
*
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
ZL-RTB20
20-pin feed-through
connector module
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
Wiring Diagram
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–122
Chapter 2: Specifications
