Input Specifications
Inputs per Module
16 (Sink/Source)
Operating Voltage Range
24 VAC/VDC
Input Voltage Range
20.4β27.6 VAC/VDC
Peak Voltage
27.6 VAC/VDC
AC Frequency
47-63 Hz
Input Current
Typ 3.4 mA @ 24 VAC/VDC
Maximum Input Current
5.0 mA @ 27.6 VAC/VDC
Input Impedance
6.8 kq @ 24 VAC/VDC
ON Voltage Level
> 18.0 VAC/VDC
OFF Voltage Level
< 4.0 VAC/VDC
Minimum ON Current
2.5 mA
Maximum OFF Current
0.5 mA
OFF to ON Response
5β40 ms
ON to OFF Response
10β50 ms
Status Indicators
Logic Side (16 points, green LED)
Power Indicator (green LED)
Commons
4 (4 points/common) Isolated
Bus Power Required (24VDC)
Max. 40mA (All Inputs On)
Terminal Block Replacement
AutomationDirect p/n C0-16TB
Weight
3.2 oz (90g)

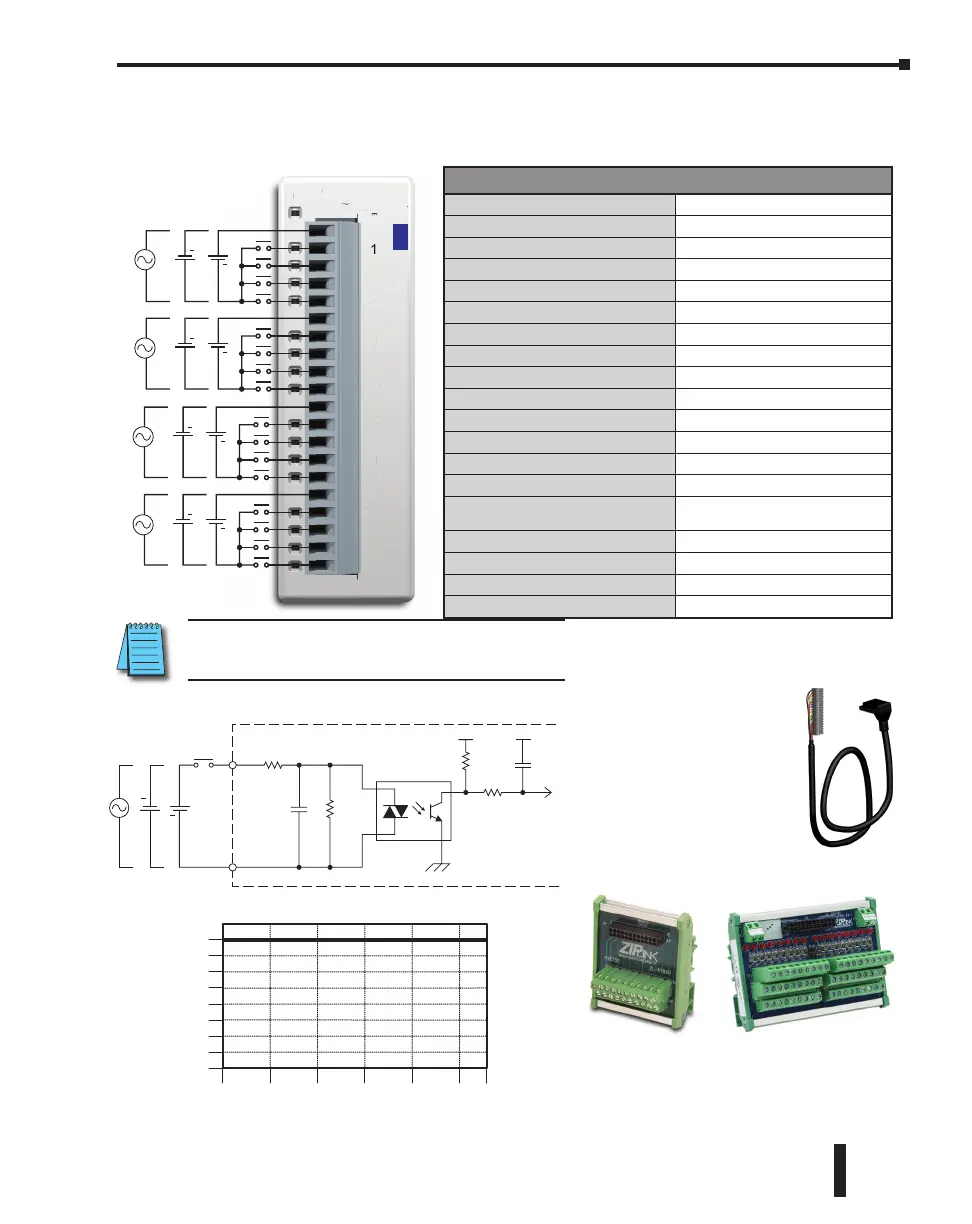

C0-16NE3 β 16-Point Sink/Source AC/DC Input Module
16-point 24VAC / 24VDC current sinking or sourcing input module, 4 commons, 4 points
per common, removable terminal block included.
12
C4
14
10
9
11
15
16
13
C3
C2
7
3
2
5
4
8
6
1
C1
C0-16NE3
PWR
INPUT
24V 3.4mA/pt.
24V
γ
50/60Hz 3.4mA/pt.
4
3
2
1
-1
NE
.4mA
pt
4
0/60Hz 3.4mA/
t
24VDC
+
+
24VDC
+
+
24VDC
+
+
24VDC
+
+
24VAC
24VAC
24VAC
24VAC
0
Surrounding Temperature (Β°C/Β°F)
32
10
50
20
68
30
85
40
104
50
122
55
131
4
8
12
16
Points
Input Module Temperature Derating Chart
0
INPUT
COM
Internal Module Circuitry
Optical Isolator
+
+
24 VDC
VAC
Equivalent Input Circuit
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
20-pin connector cable
ZL-C0-CBL20 (0.5 m length)
ZL-C0-CBL20-1 (1.0 m length)
ZL-C0-CBL20-2 (2.0 m length)
Wiring Diagram
ZL-LTB16-24-1
sensor input
module
ZL-RTB20 20-pin
feed-through
connector module
NOTE: When using this module you must also use
CLICK programming software version V1.20 or later.
CLICK PLC Hardware User Manual, 6th Edition, Rev. G β C0-USER-M
2β119
Chapter 2: Speciο¬cations
