AutomationDirect CLICK Series User Manual

Discrete Combo I/O Modules
Part
Number
Input Type
Input
Voltage
Output
Type
Output
Voltage /
Current
Ratings
C0-16CDD1
8 DC
(sink/source)
24VDC 8 DC (sink)
5–27 VDC / 0.1 A
C0-16CDD2
8 DC
(sink/source)
24VDC
8 DC
(source)
12–24 VDC / 0.1 A
C0-08CDR
4 DC
(sink/source)
12–24 VDC 4 (relay)
6.25–24 VDC / 1A
6–240 VAC / 1A
Discrete Output Modules
Part Number Output Type
Voltage/Current
Ratings
C0-08TD1
8 DC (Sink) 3.3–27 VDC / 0.3 A
C0-08TD2
8 DC (Source) 12–24 VDC / 0.3 A
C0-16TD1
16 DC (Sink) 5–27 VDC / 0.1 A
C0-16TD2
16 DC (Source) 12–24 VDC / 0.1 A
C0-08TA
8 AC 17–240 VAC / 0.3 A
C0-04TRS
4 Relay
6–27 VDC / 7A
6–240 VAC / 7A
C0-04TRS-10
4 Relay
6–24 VDC / 10A
6–240 VAC / 10A
C0-08TR
8 Relay
6–27 VDC / 1A
6–240 VAC / 1A
C0-08TR-3
8 Relay
6–27 VDC / 3A
6–240 VAC / 3A
C0-16CDD2
PWR
24V 4mA
OUTPUT
INPUT
C1
1
2
3
4
5
6
7
8
+V
1
2
3
4
C2
5
6
7
8
12-24V 0.1A
C0-16CDD2
C0-16CDD1
PWR
24V4mA
OUTPUT
INPUT
C1
1
2
3
4
5
6
7
8
C2
1
2
3
4
+V
5
6
7
8
5-27V 0.1A
C1
1
2
3
4
C2
1
2
3
4
250V 〜 1A 50-60Hz
C0-08CDR
PWR
12-24V 2.5-5mA
30V1A
INPUT
OUTPUT
C0-16CDD1
C0-08CDR

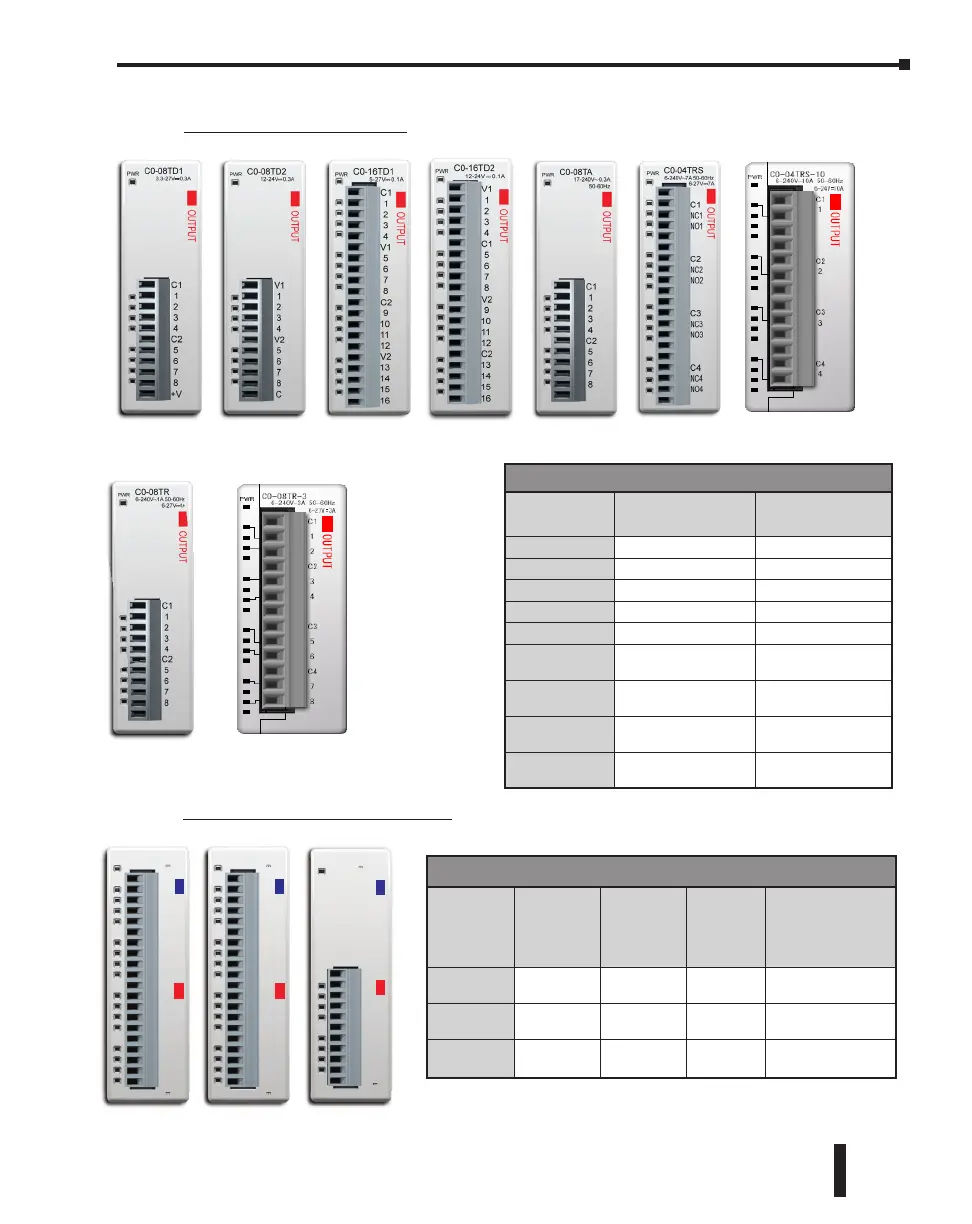

C0-08TD1 C0-08TD2 C0-16TD2 C0-08TA C0-04TRS
Discrete Output Modules
C0-04TRS-10
C0-08TR-3
Discrete Combo I/O Modules
C0-08TR
C0-16TD1
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–11
Chapter 2: Specifications

AutomationDirect CLICK Series Specifications
