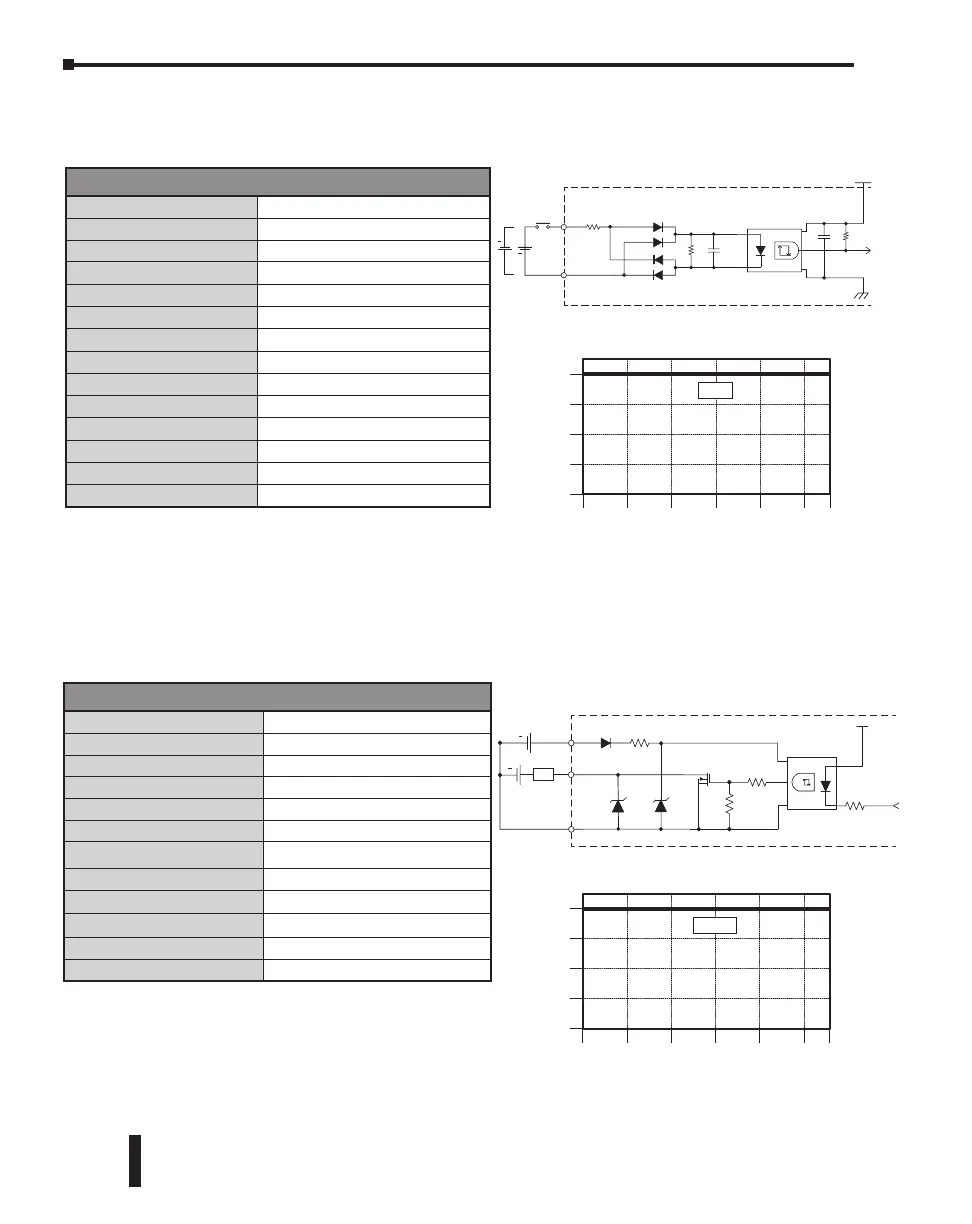

AutomationDirect CLICK Series - Page 147

Discrete I/O Specifications - Outputs
Outputs per Module
4 (Source)
Operating Voltage Range
24VDC
Output Voltage Range
19.2–30 VDC
Maximum Output Current
0.1 A/point , 0.4 A/common
Minimum Output Current
0.2 mA
Maximum Leakage Current
0.1mA @ 30VDC
On Voltage Drop
0.5 VDC@ 0.1 mA
Maximum Inrush Current
150mA for 10ms
OFF to ON Response
< 5μs
ON to OFF Response
< 5μs
Status Indicators
Logic Side (4 points, red LED)
Commons
1 (4 points/common)
C0-12DD2E-2-D (continued)
Y1 - Y4
X1 - X4 (High-Speed)
0
Surrounding Air Te mperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131
°F
1
2
3
4
Points
C0-12DD2E-2-D Temperature Derating Chart
0
Inputs
Discrete I/O Specifications - Inputs
Inputs per Module
4 (Source/Sink)
Operating Voltage Range
24VDC
Input Voltage Range
21.6–26.4 VDC
Input Current
Typ 6.5 mA @ 24VDC
Max. Input Current
7mA @ 26.4 VDC
Input Impedance
3.9 kq @ 24VDC
ON Voltage Level
>19VDC
OFF Voltage Level
< 2VDC
Minimum ON Current
4.5 mA
Maximum OFF Current
0.5 mA
OFF to ON Response
Typ 3μs Max 5μs
ON to OFF Response
Typ 1μs Max 3μs
Status Indicators
Logic Side (4 points, green LED)
Commons
1 (4 points/common)
INPUT
X1-X4
C1
COM
Internal Module Circuitry
Optical Isolator
3.3 V
VCC
GND
24 VDC
+
+
Equivalent Discrete Input Circuit
Equivalent Discrete Output Circuit
Y1–Y4
24VDC
L
+V
VCC
GND
3.3 V
Optical Isolator
+
C2
5–27
VDC
+
Internal Module Circuitry
0
Surrounding Air Te mperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131
°F
1
2
3
4
Points
C0-12DD2E-2-D Temperature Derating Chart
0
Outputs
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–104
Chapter 2: Specifications
