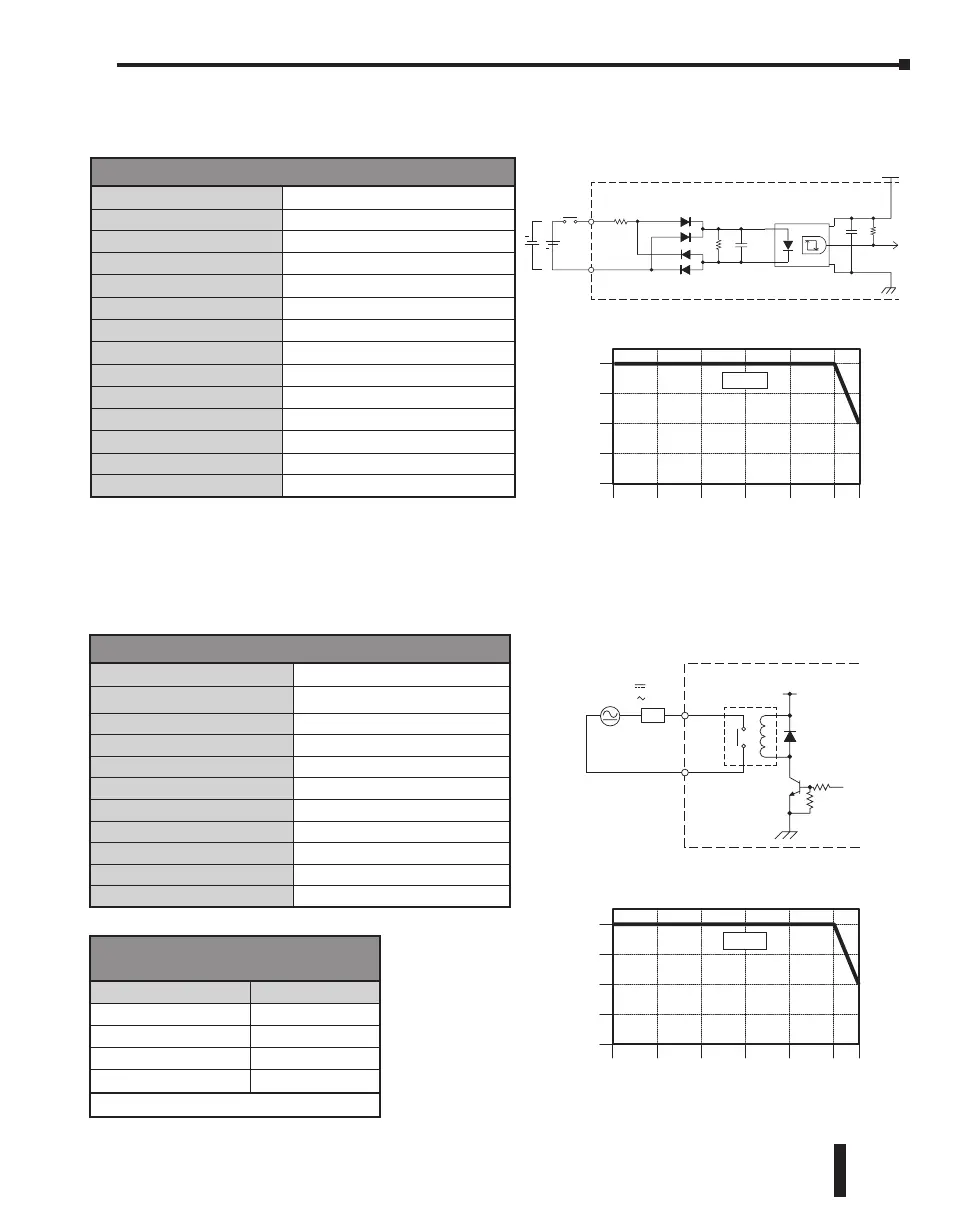

AutomationDirect CLICK Series User Manual

Discrete I/O Specifications - Outputs
Outputs per Module
4
Operating Voltage Range
6–27 VDC, 6–240 VAC
Output Type
Relay, form A (SPST)
AC Frequency
47–63 Hz
Maximum Current
1A/point (resistive)
Minimum Load Current
5mA @ 5VDC
Maximum Inrush Current
3A for 10ms
OFF to ON Response
< 15ms
ON to OFF Response
< 15ms
Status Indicators
Logic Side (4 points, red LED)
Commons per Module
1 (4 points/common)
C0-12DRE-2-D (continued)
Y1 - Y4
X1 - X4 (High-Speed)
Typical Relay Life (Operations)
at Room Temperature
Voltage & Load Type Relay Life
30VDC, 1A Resistive 300,000 cycles
30VDC, 1A Solenoid 50,000 cycles
120VAC, 1A Resistive 500,000 cycles
120VAC, 1A Solenoid 200,000 cycles
ON to OFF = 1 cycle
Discrete I/O Specifications - Inputs
Inputs per Module
4
Operating Voltage Range
24VDC
Input Voltage Range
21.6–26.4 VDC
Input Current
Typ 6.5 mA @ 24VDC
Max. Input Current
7mA @ 26.4 VDC
Input Impedance
3.9 kq @ 24VDC
ON Voltage Level
>19VDC
OFF Voltage Level
< 2VDC
Minimum ON Current
4.5 mA
Maximum OFF Current
0.5 mA
OFF to ON Response
Typ 3μs Max 5μs
ON to OFF Response
Typ 1μs Max 3μs
Status Indicators
Logic side (4 points, green LED)
Commons
1 (4 points/common)
INPUT
X1-X4
C1
COM
Internal Module Circuitry
Optical Isolator
3.3 V
VCC
GND
24 VDC
+
+
Equivalent Discrete Input Circuit
6-27 VDC
24 VDC
L
Internal Module Circuitry
Equivalent Discrete Output Circuit
6-240
VAC
0
Ambient Air Te mperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55
°C
131 °F
1
2
3
4
Points
C0-12DRE-2-D Temperature Derating Chart
0
Inputs
0
Ambient Air Te mperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55
°C
131
°F
1
2
3
4
Points
C0-12DRE-2-D Temperature Derating Chart
0
Outputs
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–107
Chapter 2: Specifications
