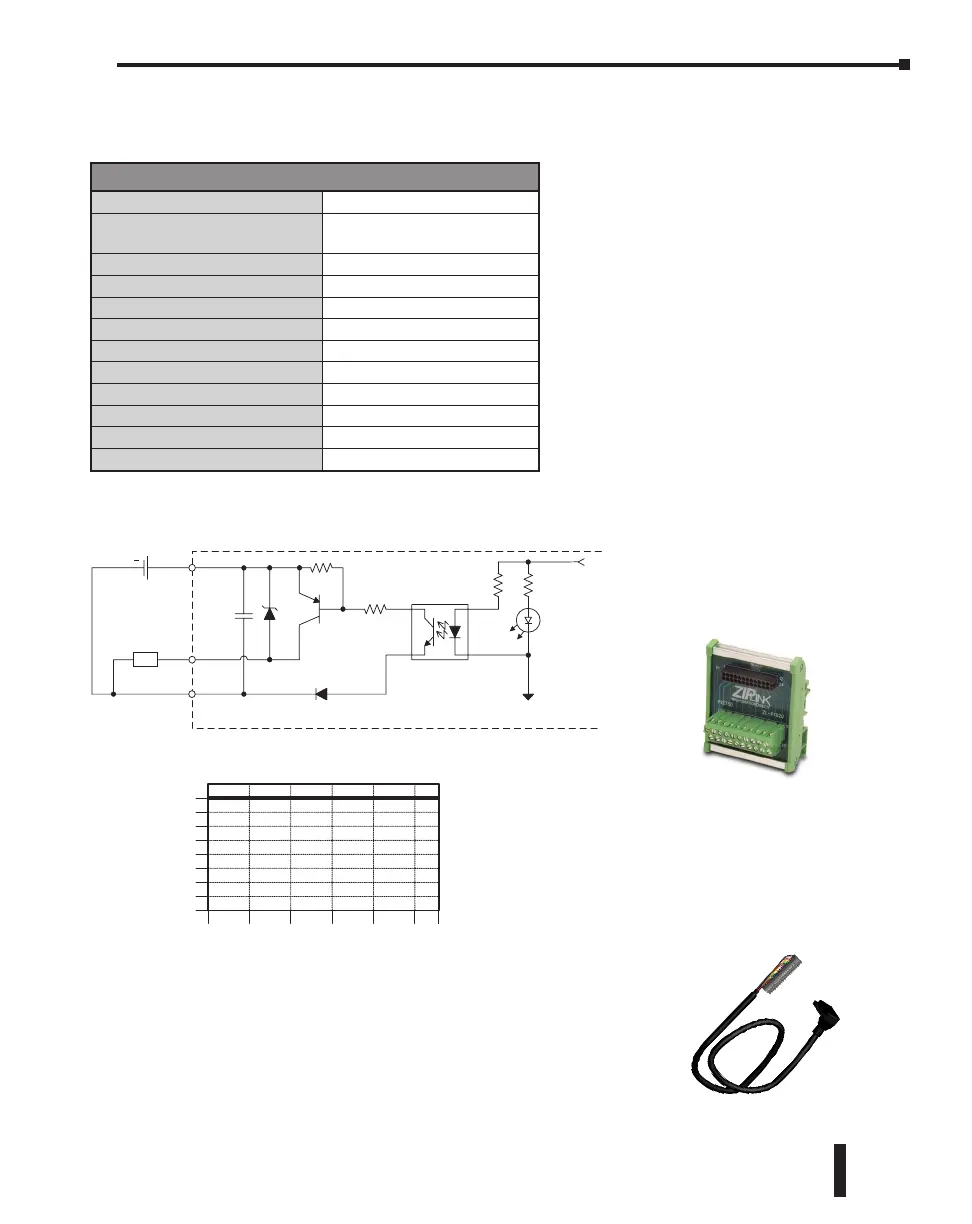

AutomationDirect CLICK Series User Manual

Output Specifications
Outputs per Module
8 (Source)
Operating Voltage Range
CE: 12–24 VDC (-15%/+20%)
UL: 12–24 VDC (-20%/+25%)
Output Voltage Range
9.6–30 VDC
Maximum Output Current
0.1 A/point , 0.8 A/common
Minimum Output Current
0.2 mA
Maximum Leakage Current
0.1 mA @ 30VDC
On Voltage Drop
0.6 VDC @ 0.1 A
Maximum Inrush Current
0.15 A for 10ms
OFF to ON Response
<0.5 ms
ON to OFF Response
<0.5 ms
Status Indicators
Logic Side (8 points, red LED)
Commons
1 (8 points/common)
C0-16CDD2 (continued)
0
Surrounding Temperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131 °F
2
4
6
8
Points
Output Module Temperature Derating Chart
0
12-24 VDC
L
Internal Module Circuitry
Optical Isolator
+
Equivalent Output Circuit
OUTPUT
COM
+V
* Zener Diode Power Dissipation: 200 mW
*
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
20-pin connector cable
ZL-C0-CBL20 (0.5 m length)
ZL-C0-CBL20-1 (1.0 m length)
ZL-C0-CBL20-2 (2.0 m length)
ZL-RTB20
20-pin feed-through
connector module
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
