AutomationDirect CLICK Series User Manual

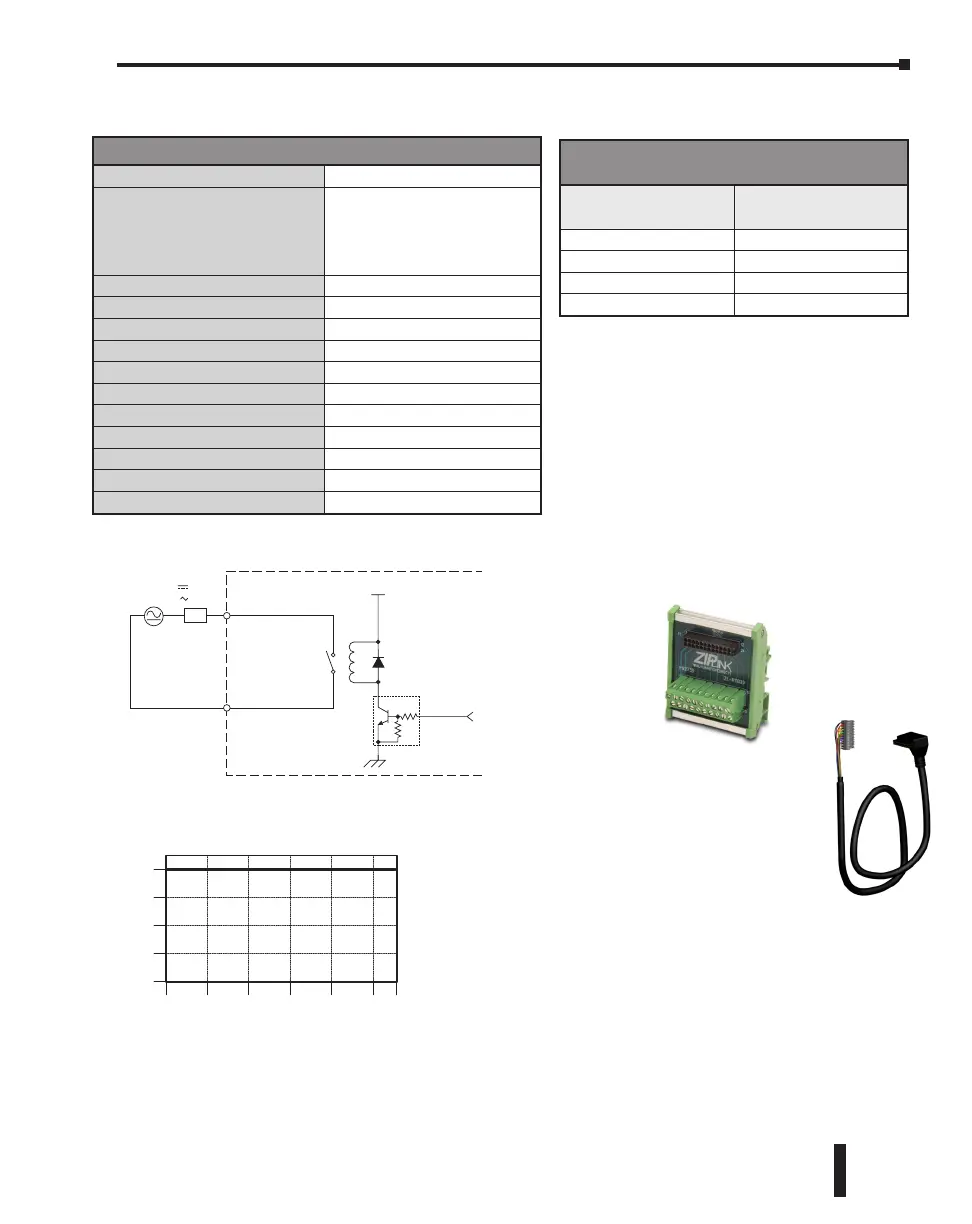

Output Specifications
Outputs per Module
4 (Relay)
Operating Voltage Range
CE: 6.25–24 VDC (-15%/+10%) /
6–240 VAC (-15%/+10%)
UL: 24VDC (-15%/+10%) /
240VAC (-10%/+10%)
Peak Voltage
30VDC / 264VAC
Output Type
Relay, Form A (SPST)
AC Frequency
47–63 Hz
Maximum Current
1A /point, 4 A/common
Minimum Load Current
5mA @ 5VDC
Maximum Leakage Current
0.1 mA @ 264VAC
Maximum Inrush Current
3A for 10ms
OFF to ON Response
<15ms
ON to OFF Response
<15ms
Status Indicators
Logic Side (4 points, red LED)
Commons
1 (4 points/common)
Typical Relay Life
(Operations) at Room Temperature
Voltage & Load Type*
Relay Life
(ON to OFF = 1 cycle)
30VDC, 1A, Resistive 80,000 cycles
30VDC, 1A, Solenoid 80,000 cycles
250VAC, 1A, Resistive 80,000 cycles
250VAC, 1A, Solenoid 80,000 cycles
C0-08CDR (continued)
0
Surrounding Air Te mperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131 °F
1
2
3
4
P
o
i
nts
Output Temperature Derating Chart
0
OUTPUT
COM
24 VDC
L
Internal Module Circuitry
Equivalent Output Circuit
240 VAC
* These relay outputs support both inductive (solenoid)
and resistive loads.
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
ZL-RTB20
20-pin feed-through
connector module
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–135
Chapter 2: Specifications
