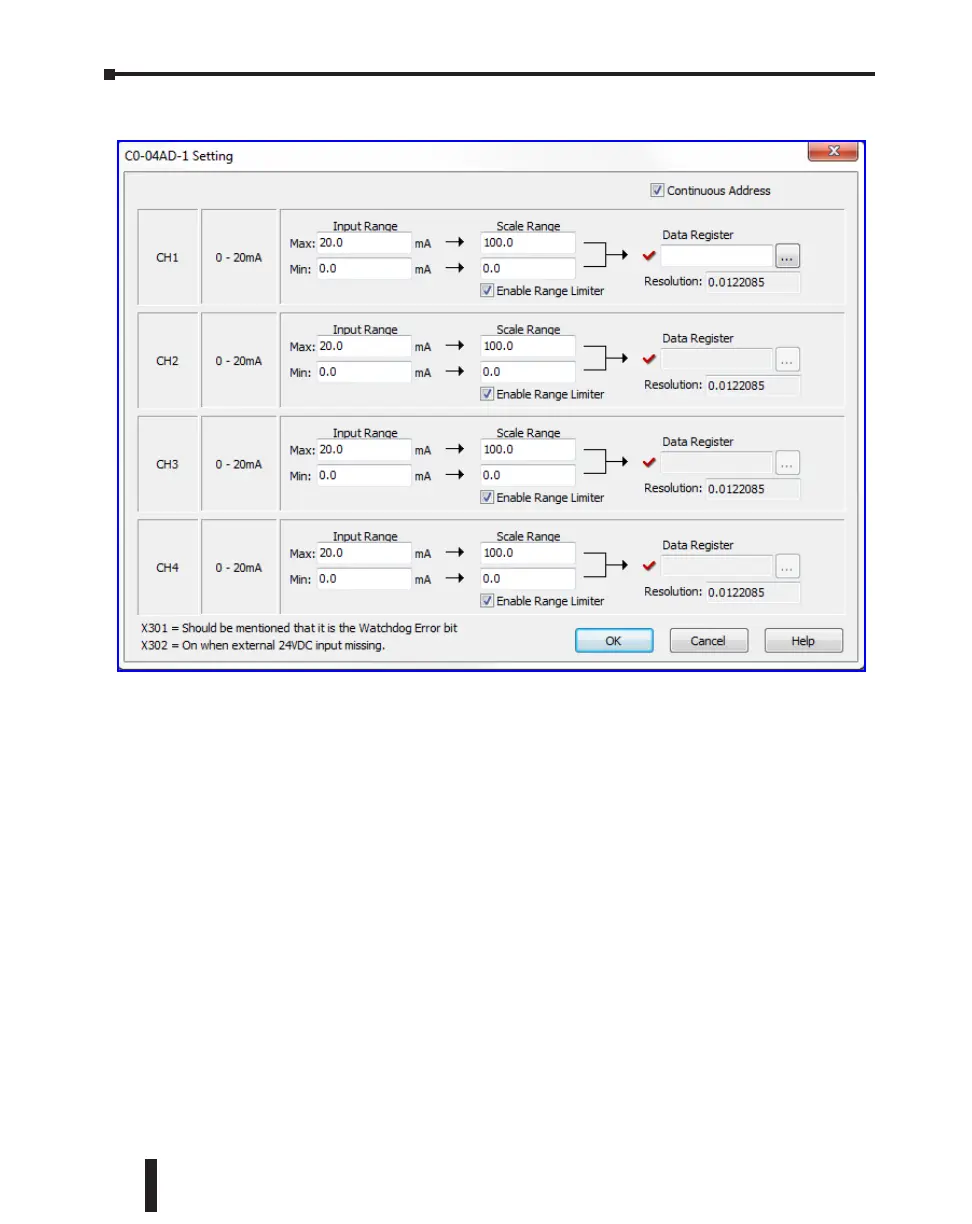

The following is the configuration window for the C0-04AD-1 current input I/O module.
In the CLICK PLC, all analog data is stored in the DF memory addresses. Assign DF memory
addresses to the Data Register fields. You can also set up the scaling in this configuration
window. For more detailed explanation about this configuration window, refer to the help
topic by clicking the Help button on the bottom right corner.
After configuring all the analog I/O modules, download the CLICK project into the CLICK
PLC.
CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M
3–42
Chapter 3: Installation and Wiring
