BESTlogic Settings for Reclosing
BESTlogic settings are made from the BESTlogic Function Element screen in BESTCOMS.

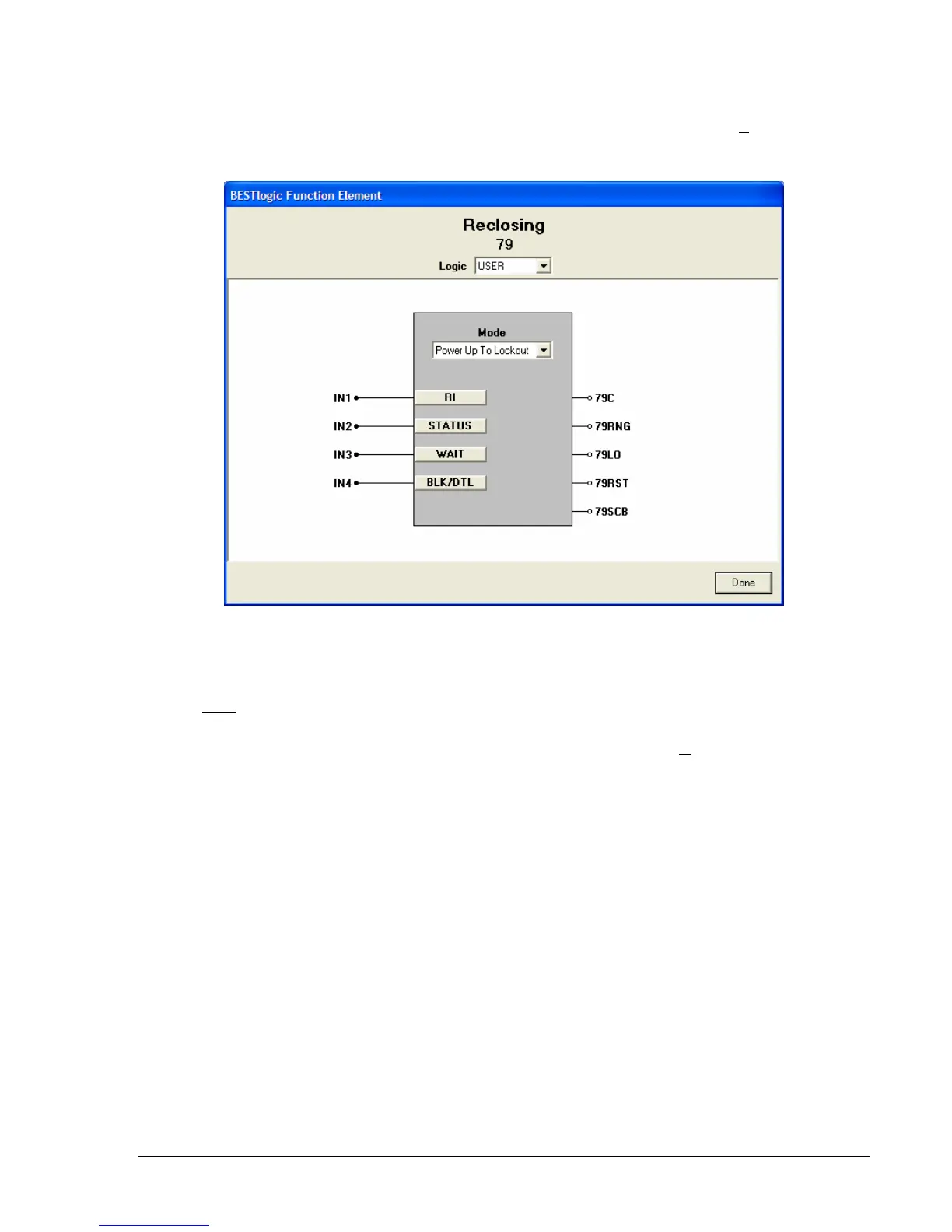

Figure 4-56
illustrates the BESTCOMS screen used to select BESTlogic settings for the reclosing element. To open
the BESTlogic Function Element screen for Reclosing (79), select Reclosing from the S
creens pull-down
menu. Alternately, settings may be made using the SL-79 ASCII command.
Figure 4-56. BESTlogic Function Element Screen, 79
At the top center of the BESTlogic Function Element screen is a pull-down menu labeled Logic. This
menu allows viewing of the BESTlogic settings for each preprogrammed logic scheme. A custom logic
scheme must
be created and selected in the Logic pull-down menu at the top of the screen before
BESTlogic settings can be changed. See Section 7, BESTlogic Programmable Logic.
Enable the reclosing function by selecting its mode of operation from the M
ode pull-down menu. To
connect the element’s inputs, select the button for the corresponding input in the BESTlogic Function
Element screen. The BESTlogic Expression Builder screen will open. Select the expression type to be
used. Then, select the BESTlogic variable, or series of variables to be connected to the input. Select
Save when finished to return to the BESTlogic Function Element screen. For more details on the
BESTlogic Expression Builder, see Section 7, BESTlogic Programmable Logic. Select Done after the
settings have been completely edited.
Table 4-34 summarizes the BESTlogic settings for Reclosing.
