Basler BE1-951 - Input (IG) Connected for Tertiary and System Ground Fault Protection

To Next Page

To Previous Page

9328900990 Rev L BE1-951 Installation 12-25

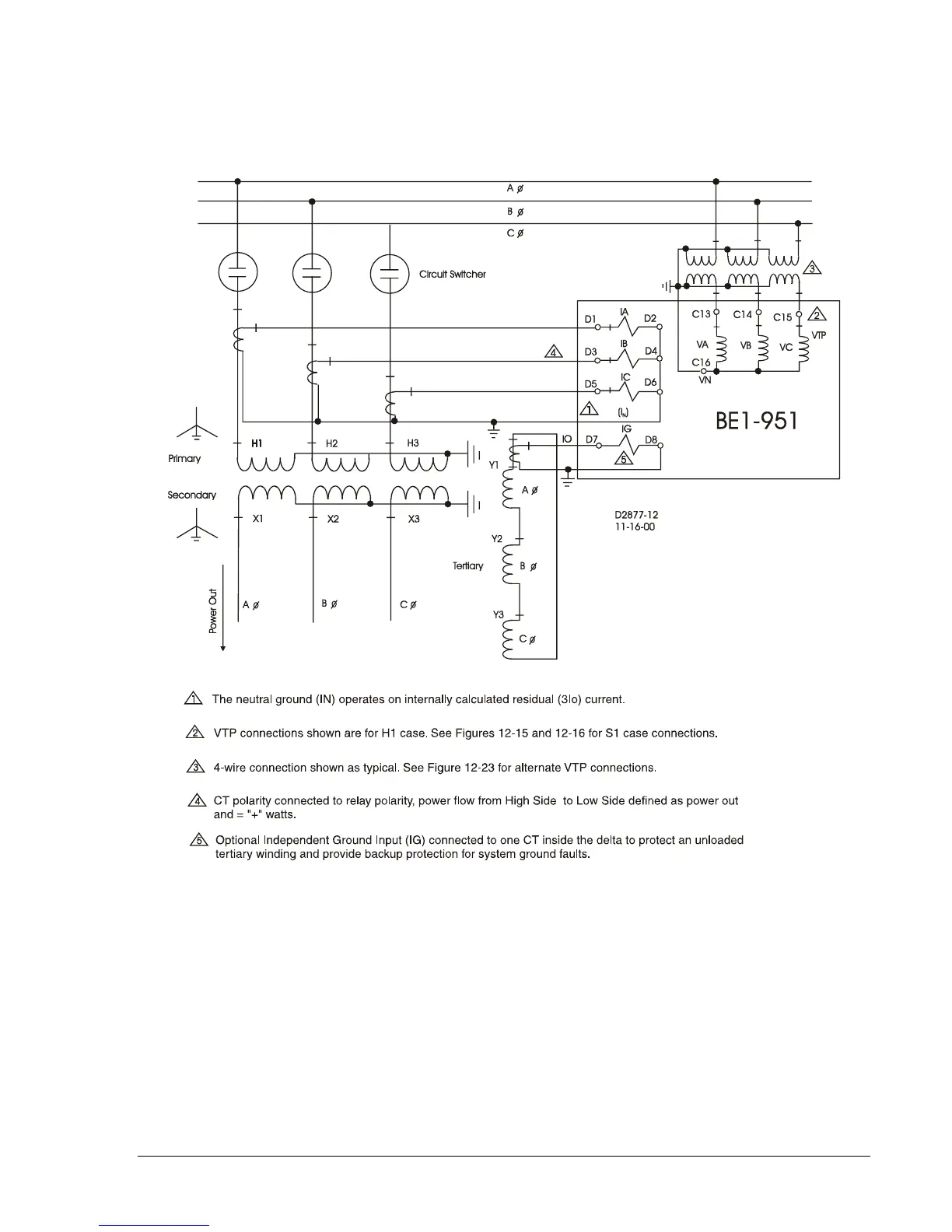

Figure 12-26. Backup OC Protection of a Three-Winding Transformer with Optional Independent Ground

Input (IG) Connected for Tertiary and System Ground Fault Protection
