12-24 BE1-951 Installation 9328900990 Rev L

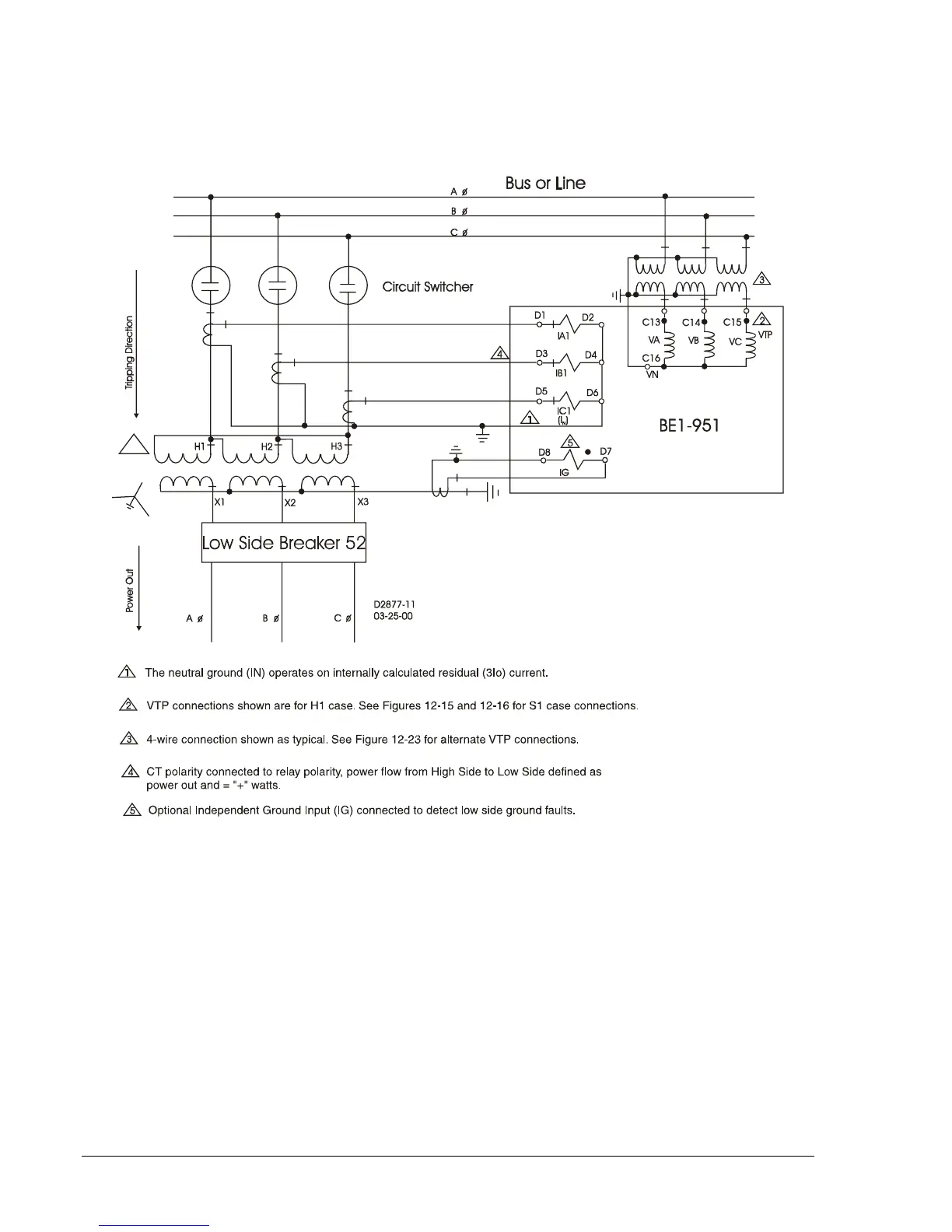

Figure 12-25. OC Protection of a Delta-Wye Grounded Transformer (Radial Load) with Optional

Independent Ground Input (IG) connected for low side Ground Fault Protection
