14-36 BE1-951 BESTCOMS Software 9328900990 Rev L
SETTINGS COMPARE
BESTCOMS has the ability to compare two different settings files. To use this feature, pull down the
R
eports menu and select Settings Compare. The BESTCOMS Settings Compare Setup dialog box
appears. See
Figure 14-50. Select the location of the first file to compare under Left Settings Source and
select the location of the second file to compare under Right Settings Source. If you are comparing a
Settings file on disk, click on the folder box and browse for the file. If you wish to Download settings from
unit to compare, click on the RS-232 box to setup the Com Port and Baud Rate. Click on the Compare
box to compare the settings files that you have selected.

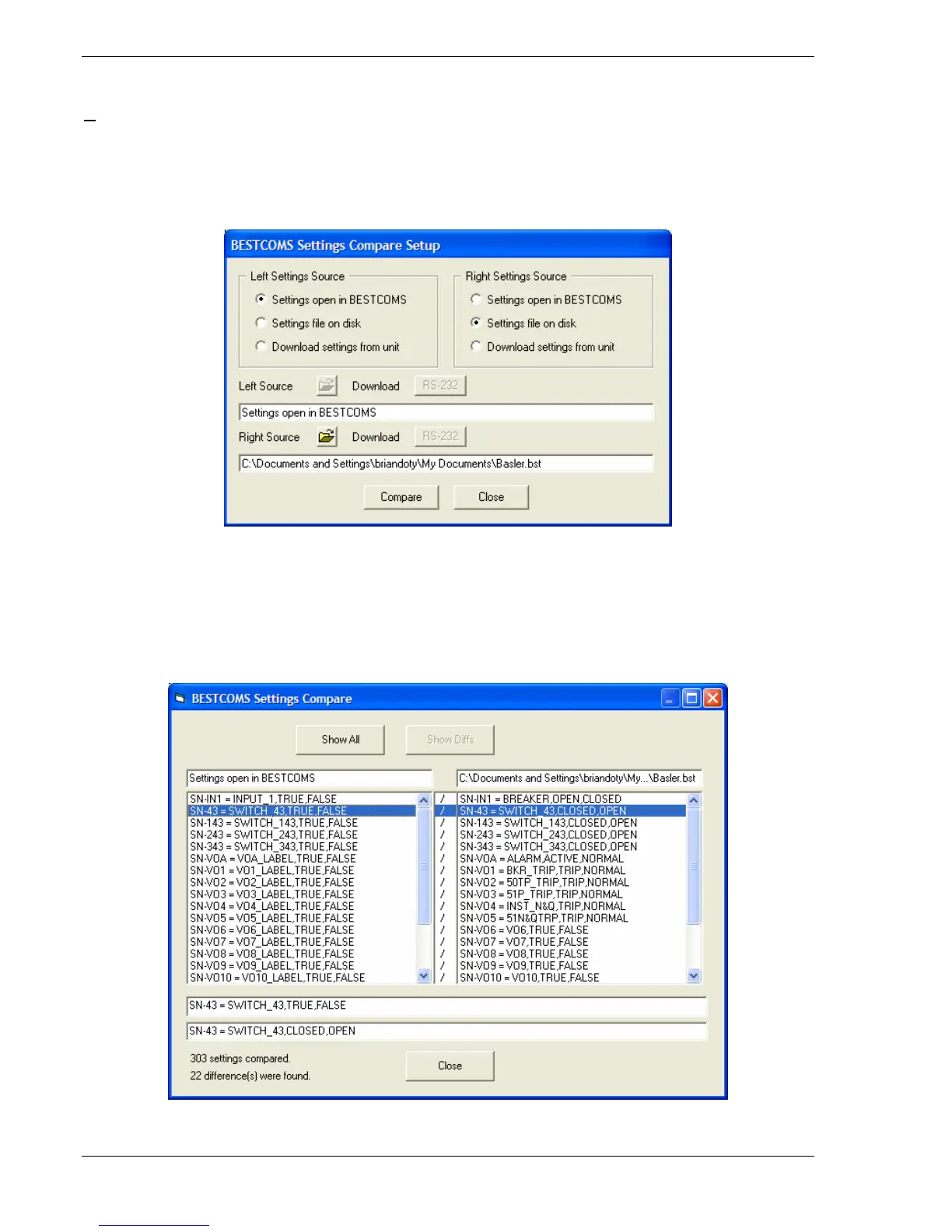

Figure 14-50. BESTCOMS Settings Compare Setup Dialog Box
If there are any differences in the two files, a dialog box will pop up notifying you that Differences Are
Found. The BESTCOMS Settings Compare dialog box pops up (
Figure 14-51) where you can select to
Show All or Show Diffs.
Figure 14-51. BESTCOMS Settings Compare Dialog Box
