Virtual Switches
Pull down the S
creens menu and select Virtual Switches or click on the Virtual Switches icon that
is shown at the right margin of this paragraph. This screen has no folder tabs and is labeled
Virtual Switches.
Virtual Switches (x43 & 101)
You can assign a meaningful name or label to each of the four virtual switches (
Figure 14-38). This
makes sequential events reports easier to analyze. To assign a meaningful label to Virtual Switch 43,
click in the Label field and enter the new name. To change the label for the True State, click on the True
State field and enter the new name. To change the label for the False State, click on the False State field
and enter the new name. The remaining four virtual switches function the same way.
The mode logic setting for Virtual Switch 43 can be made by clicking on the BESTlogic button and, with
your custom logic selected, select the mode logic by using the Mode pull-down menu. The remaining
three virtual switches have the same functions.
The Virtual Breaker Control Switch (101) provides manual control of a circuit breaker or switch without
using physical switches and/or interposing relays. The mode logic setting for Virtual Breaker Control
Switch 101 can be made by clicking on its associated BESTlogic button and, with your custom logic
selected, select the mode logic by using the Mode pull-down menu. Trip outputs include Trip, Close, and
Slip Contact.

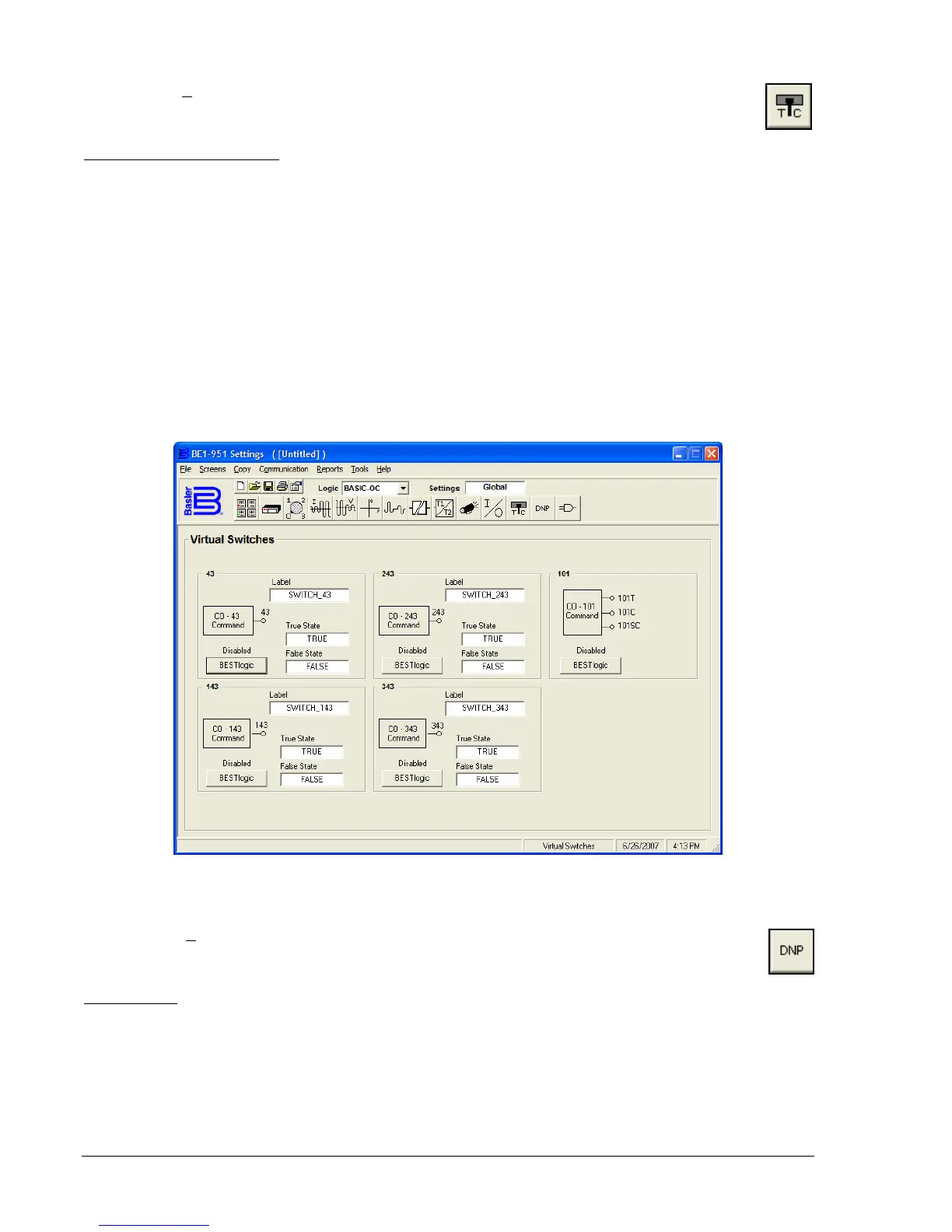

Figure 14-38. Virtual Switches Screen
DNP
Pull down the S
creens menu and select DNP Settings or click on the DNP Settings icon that is
shown at the right margin of this paragraph. This screen has two folder tabs and the first tab is
DNP Settings.
DNP Settings
If the BE1-951 has DNP 3.0, you may use this tab (
Figure 14-39) to select the options for Analog Input
Default or Zero Variation and Change Event Dead Band (% of nominal value).
