9328900990 Rev L BE1-951 BESTCOMS Software 14-27
You can assign a meaningful name to each input. This makes sequential events reports easier to
analyze. To assign a meaningful name to Input 1, click in the Name field and enter the new name. To
change the label for the Energized State, click on the Energized State field and enter the new name. To
change the label for the De-Energized State, click on the De-Energized State field and enter the new
name. The remaining three inputs have the same functions.

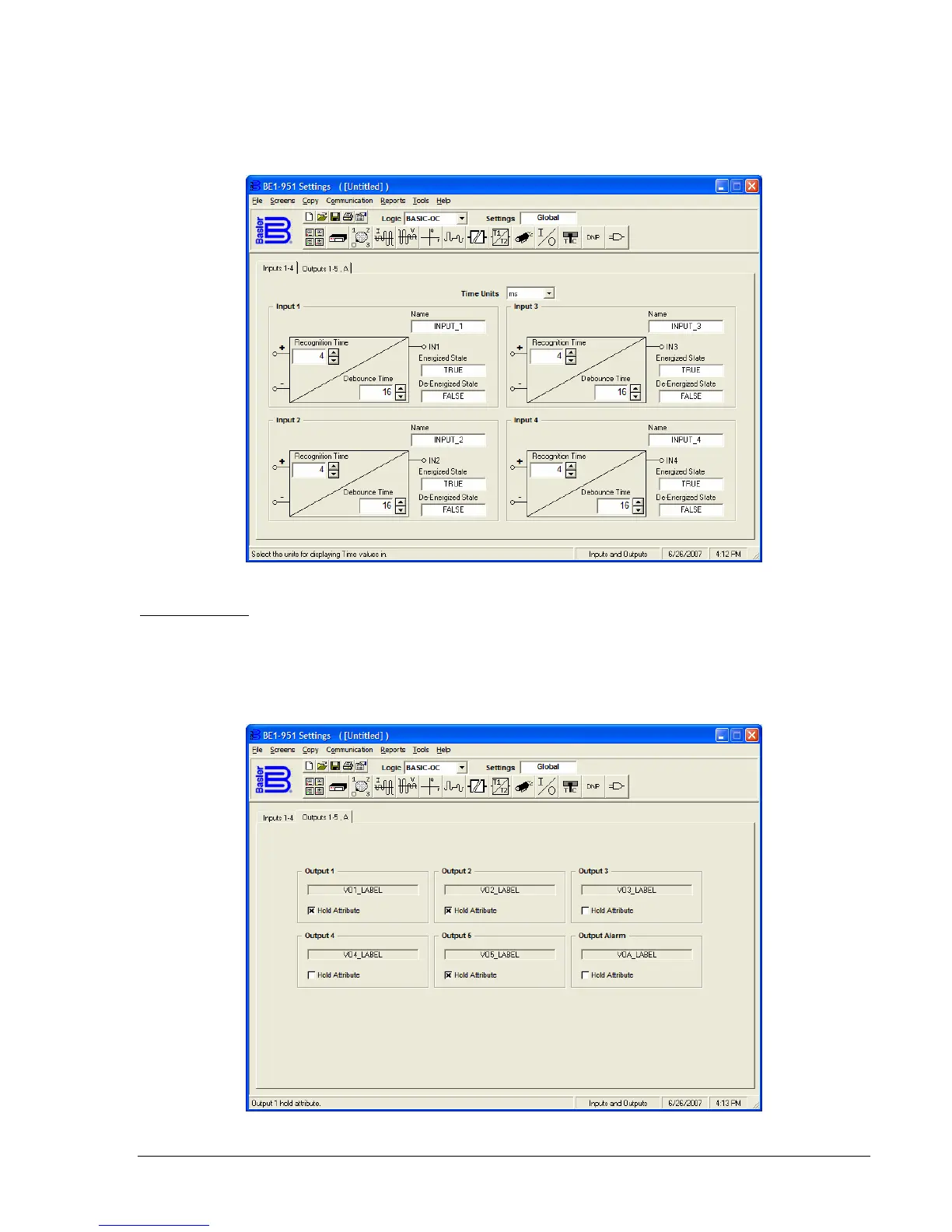

Figure 14-36. Inputs and Outputs Screen, Inputs 1 - 4 Tab
Outputs 1 - 5, A
On this tab (
Figure 14-37), the only feature that you may change is to select the programmable hold
attribute. To select the hold attribute (contacts remain closed for 200 milliseconds) for any output, click on
the Hold Attribute field for one of the six outputs. To change the label for any of the virtual outputs, see
the paragraph under BESTlogic, Virtual Outputs, later in this section of the manual.
Figure 14-37. Inputs and Outputs Screen, Outputs 1 - 5, A Tab
