14-22 BE1-951 BESTCOMS Software 9328900990 Rev L
86/186 (Virtual Lockout Function)
Virtual lockout protection (
Figure 14-29) has two elements: 86 and 186. Both independent elements have
the same logic inputs, outputs, and functions.
Logic settings for the virtual lockout function can be made by clicking on the BESTlogic button and with
your custom logic selected, select the mode and other input logic by using the Mode pull-down menu and
clicking on the logic inputs to set the logic.

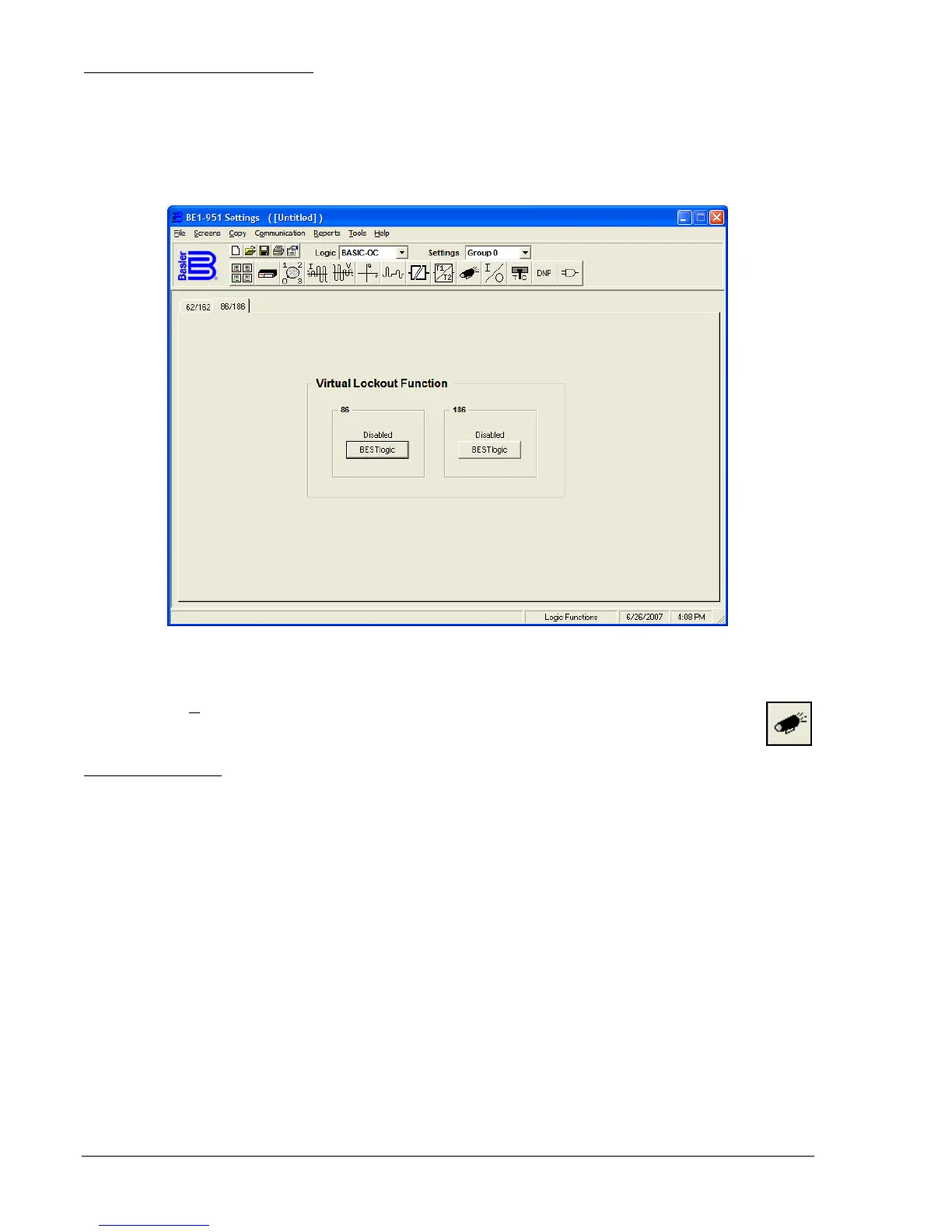

Figure 14-29. Logic Functions Screen, 86/186 (Virtual Lockout) Tab
Reporting and Alarms
Pull down the S
creens menu and select Reporting and Alarms or click on the Reporting and
Alarms icon that is shown at the right margin of this paragraph. This screen has seven folder
tabs and the first tab is Clock Display Mode.
Clock Display Mode
Use the Time Format and Date Format pull-down menus (see
Figure 14-30) to set the current time and
date in the preferred format. Twice a year adjustment for the start or end of daylight savings time may be
made by selecting the Automatic Daylight Savings box.
