12-26 BE1-951 Installation 9328900990 Rev L

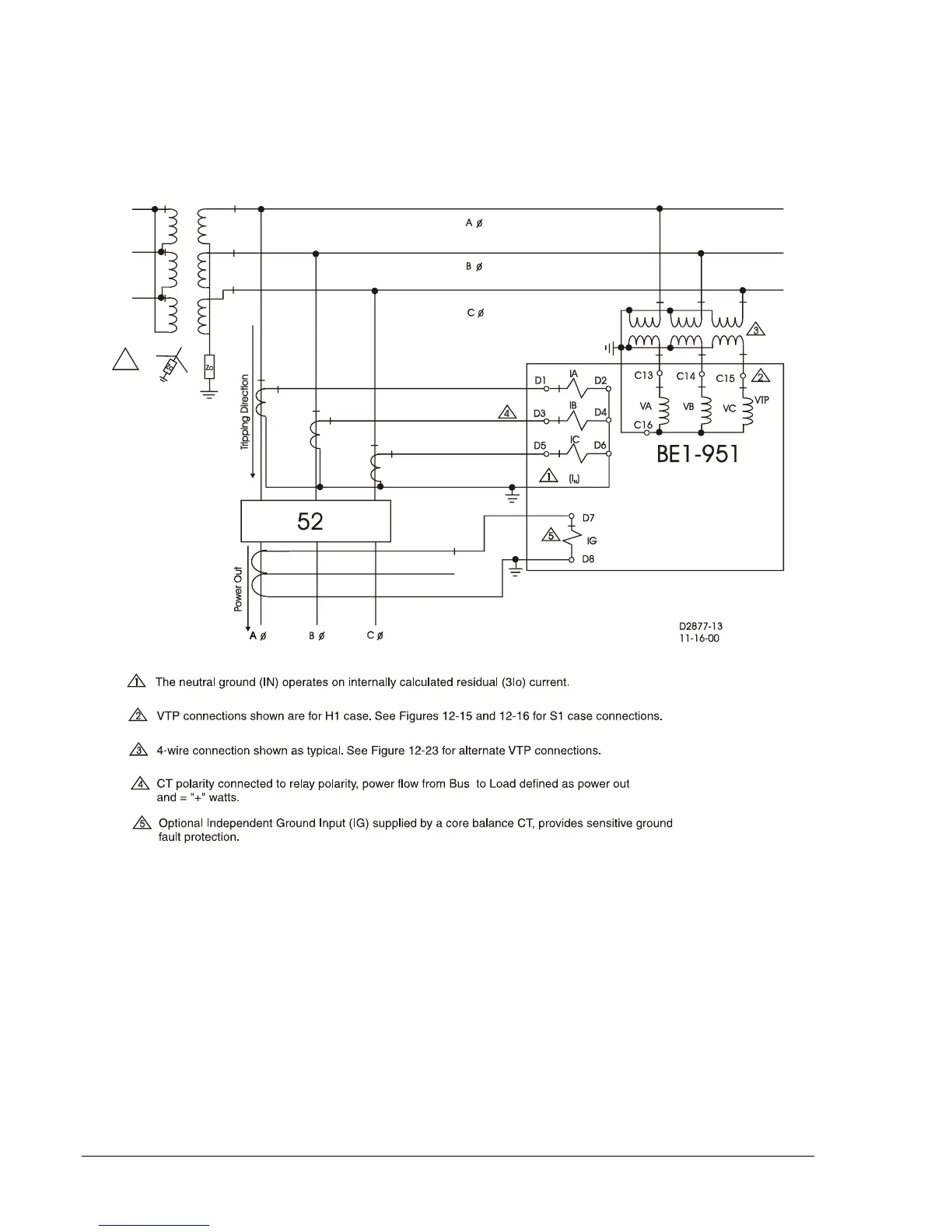

Figure 12-27. OC Protection of an Industrial Feeder (Radial Load) with Optional Independent Ground (IG)
Connected to Core Balance CT for Sensitive Ground Fault Protection
