9328900990 Rev L BE1-951 BESTCOMS Software 14-21

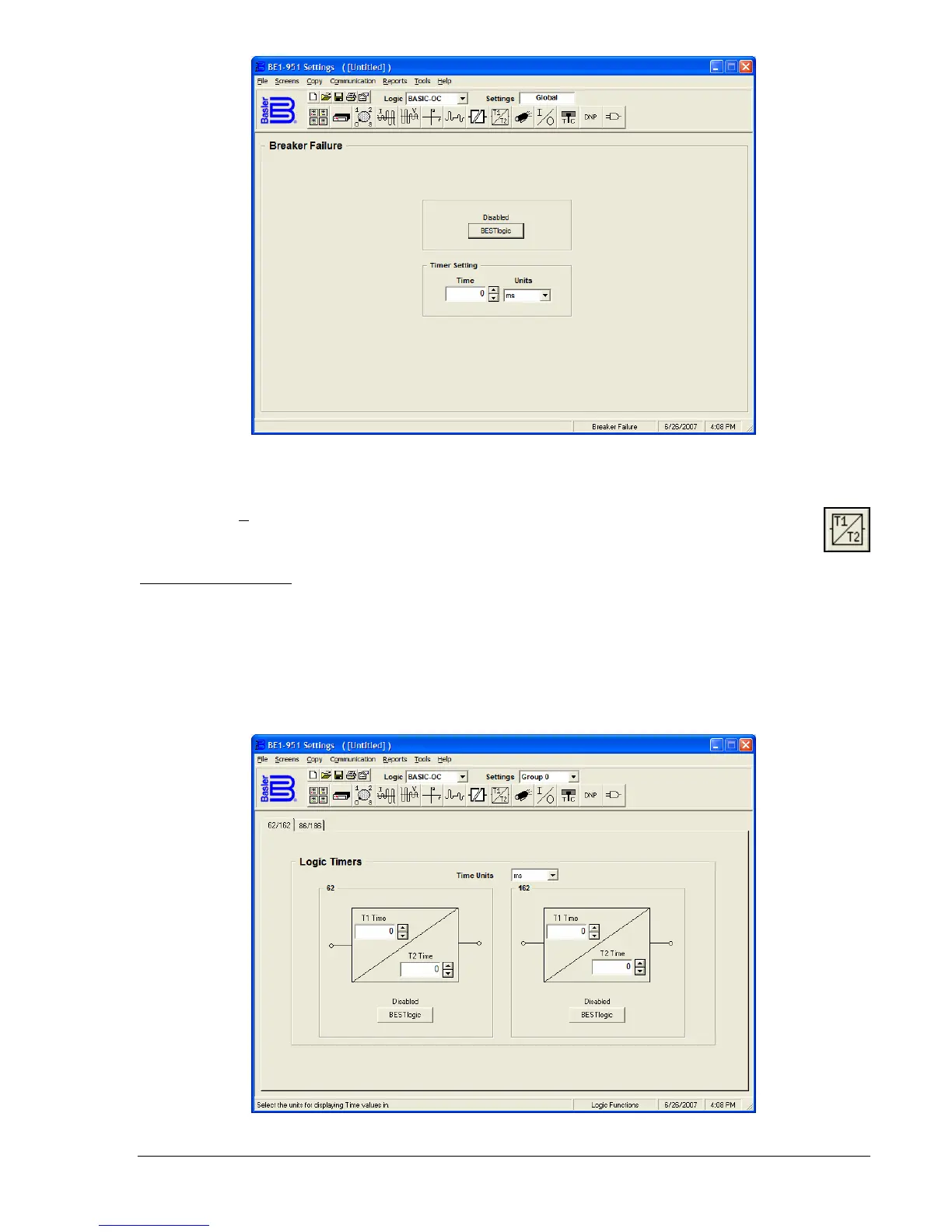

Figure 14-27. Breaker Failure Screen
Logic Functions
Pull down the S
creens menu and select Logic Functions or click on the Logic Functions icon that
is shown at the right margin of this paragraph. This screen has two folder tabs and the first tab is
62/162.
62/162 (Logic Timers)
Logic timers 62 and 162 (
Figure 14-28) are general-purpose timers with six operating modes. Each
operating mode has a T1 and T2 setting. The function of these settings depends on the type of timer
(mode) selected. For a description of the setting functions, see Section 4, Protection and Control.
Logic settings for the logic timers can be made by clicking on the BESTlogic button and with your custom
logic selected, use the Mode pull-down menu and select one of the six timer modes or disable the logic
timers. Select other input logic by clicking on the logic inputs to set the logic.
Figure 14-28. Logic Functions Screen, 62/162 (Logic Timers) Tab
