9328900990 Rev L
BE1-951 BESTCOMS Software
14-29

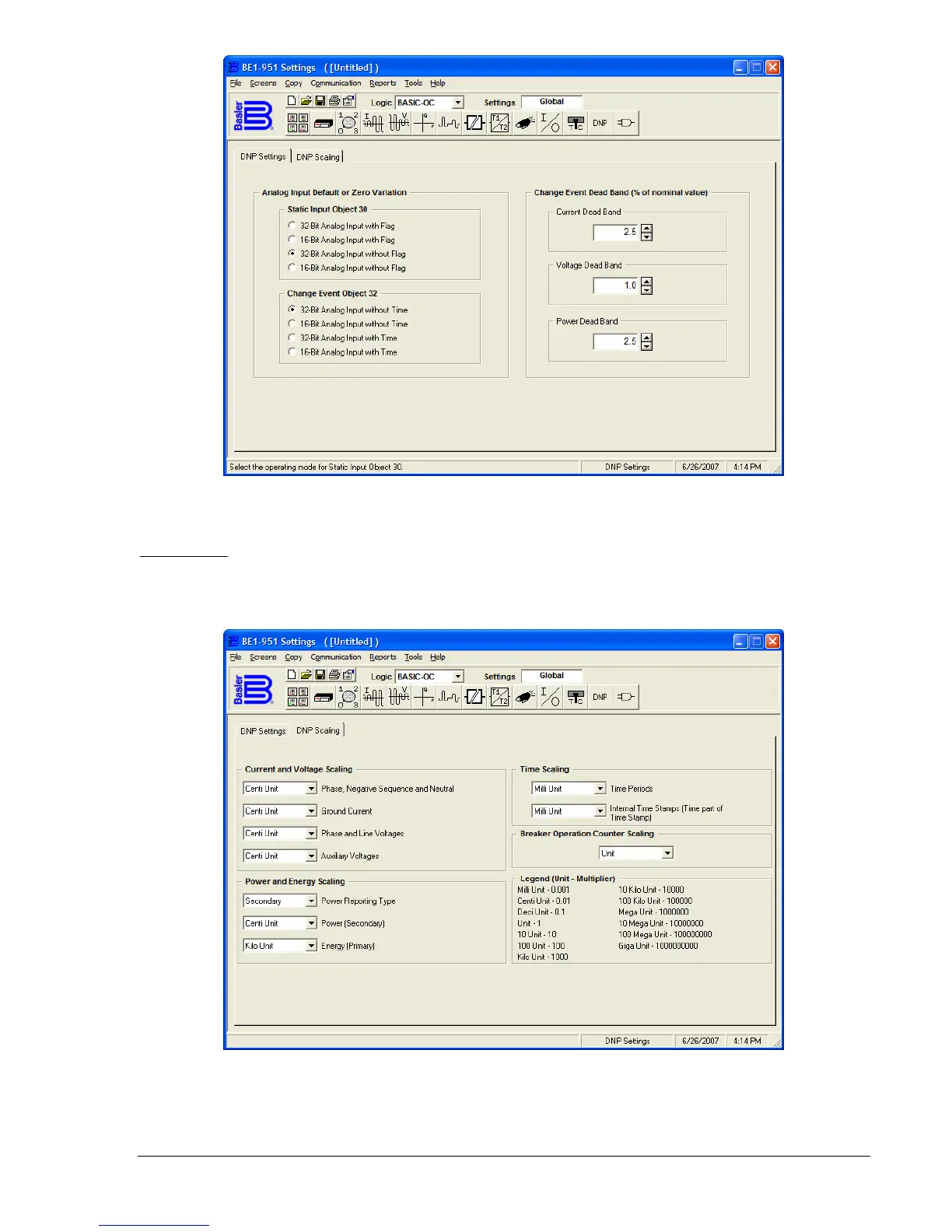

Figure 14-39. DNP Settings Screen
DNP Scaling
If the BE1-951 has DNP 3.0, you may use this tab (
Figure 14-40) to select the options for
Current and
Voltage Scaling, Power and Energy Scaling, Tim
e Scaling,
and
Breaker Operation Counter Scaling.
Figure 14-40. DNP Settings Screen, DNP Scaling Tab
456
