5-2 BE1-951 Metering 9328900990 Rev L

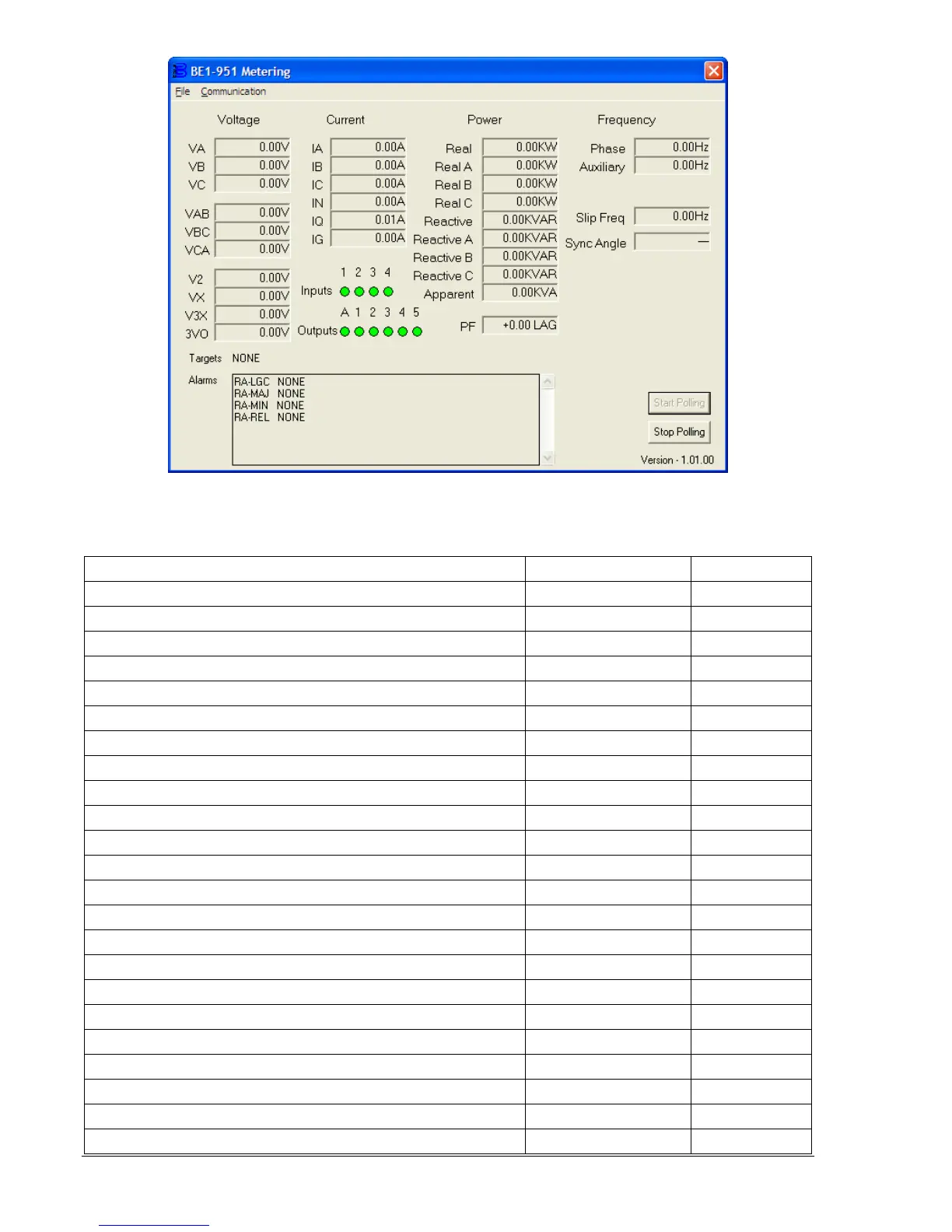

Figure 5-1. Metering Screen
Table 5-2. Metering Functions Summary
Metering Function Serial Command HMI Screen
All metered values M 3.1 – 3.11
Voltage, all values M-V 3.1 – 3.4
Voltage, A-phase M-VA 3.1
Voltage, B-phase M-VB 3.1
Voltage, C-phase M-VC 3.1
Voltage, A-phase to B-phase M-VAB 3.2
Voltage, B-phase to C-phase M-VBC 3.2
Voltage, A-phase to C-phase M-VAC 3.2
Voltage, Auxiliary M-VX 3.3
Voltage, 3
RD
Harmonic Auxiliary M-V3X 3.3
Voltage, Negative-Sequence M-V2 3.4
Voltage, Zero-Sequence M-3V0 3.4
Current, all values M-I 3.5 – 3.7
Current, A-phase M-IA 3.5
Current, B-phase M-IB 3.5
Current, C-phase M-IC 3.5
Current, Ground M-IG 3.6
Current, Neutral M-IN 3.7
Current, Negative-Sequence M-IQ 3.7
Power, True M-WATT 3.8
Power, True, Three-phase M-WATT3 3.8
Power, True, A-phase M-WATTA 3.8.1
Power, True, B-phase M-WATTB 3.8.2
