9328900990 Rev L BE1-951 Reporting and Alarm Functions 6-15

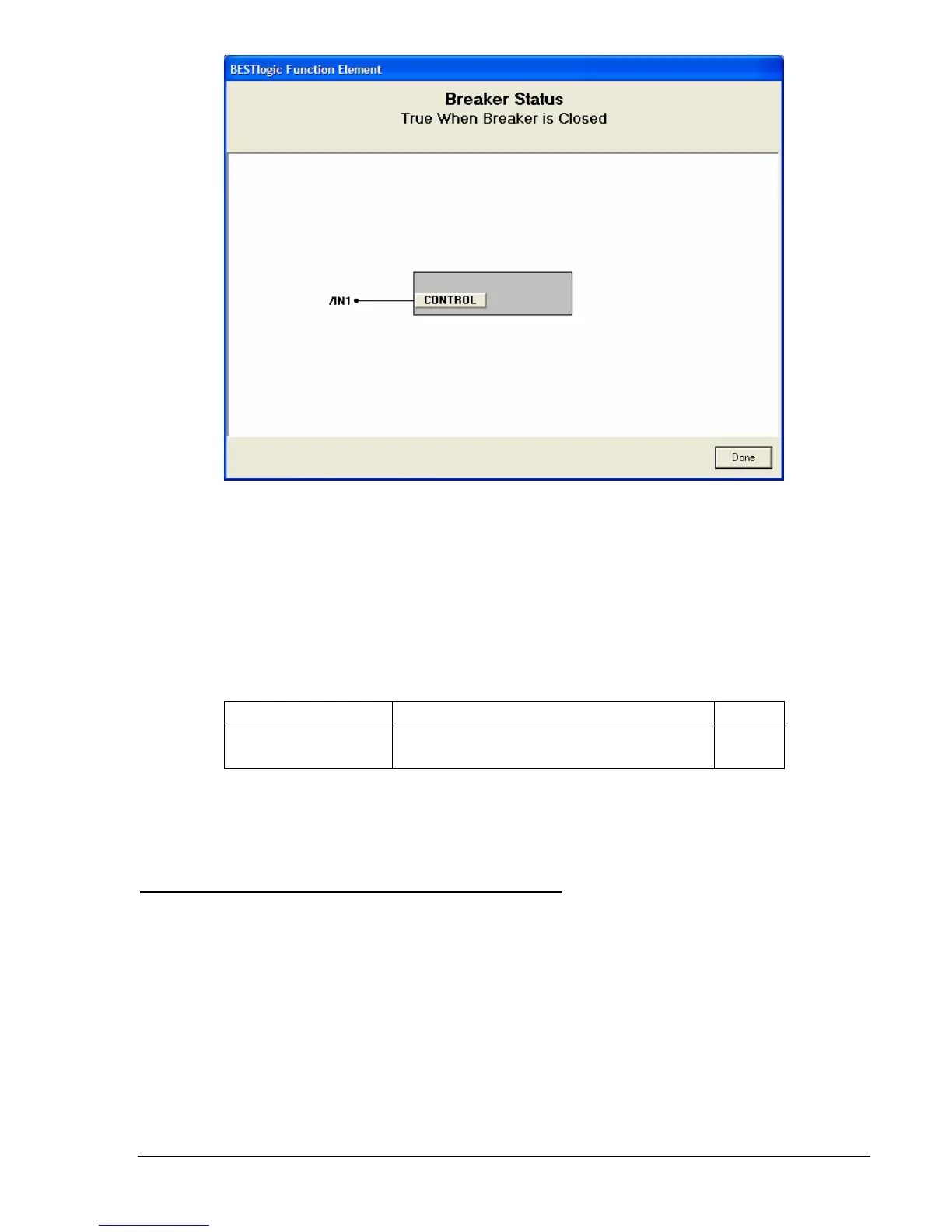

Figure 6-5. BESTlogic Function Element Screen, Breaker Status
To connect the Breaker Status's CONTROL input, select the CONTROL button. The BESTlogic
Expression Builder screen will open. Select the expression type to be used. Then, select the BESTlogic
variable, or series of variables to be connected to the input. Select Save when finished to return to the
BESTlogic Function Element screen. For more details on the BESTlogic Expression Builder, See Section
7, BESTlogic Programmable Logic. Select Done when the settings have been completely edited.
Table 6-7 lists the settings for the Breaker Status logic.
Table 6-7. Breaker Status Reporting BESTlogic Settings
Setting Range/Purpose Default
Breaker Closed Logic
OR logic expression that is TRUE when the
breaker is closed (e.g., 52a logic).
/IN1
Example 1. Make the following settings to the Breaker Status logic. Refer to
Figure 6-5.
CONTROL: /IN1
Retrieving Breaker Status and Operation Counter Information
Current breaker status can be read from HMI Screen 1.5.7 and through the communication ports using
the RG-STAT command. The General Status Reporting subsection provides more information about this
command.
The number of breaker operations can be read at HMI Screen 4.3.1. The counter value can be adjusted
using the Edit key. This allows the relay counter value to be matched to an existing mechanical
cyclometer on a breaker mechanism. Write access to the reports functions must be gained to edit this
value at the HMI. Breaker operations can be read or set through the communication ports using the RB-
OPCNTR (report breaker, operations counter) command.
