6-20 BE1-951 Reporting and Alarm Functions 9328900990 Rev L

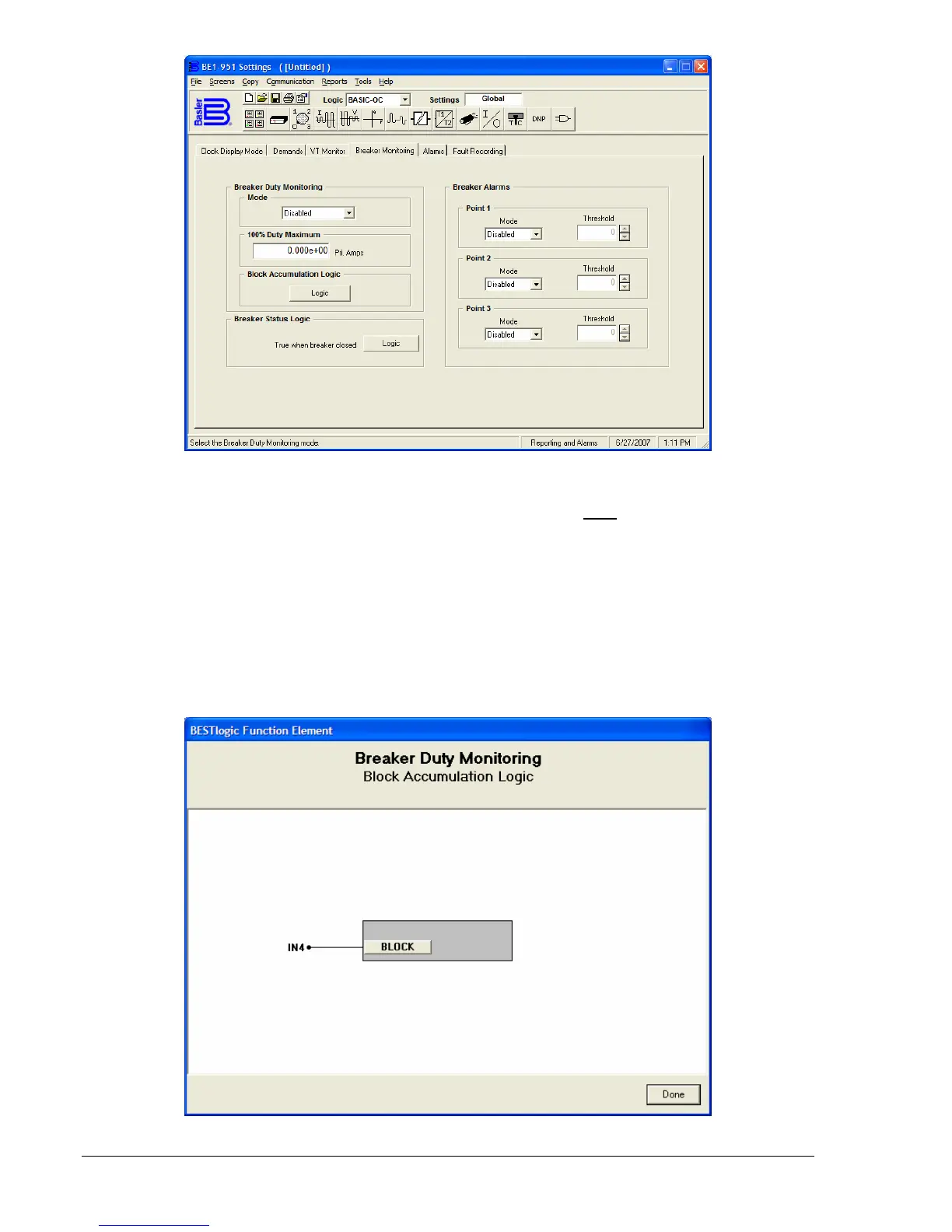

Figure 6-7. Reporting and Alarms Screen, Breaker Monitoring Tab
At the top of the screen is a pull-down menu labeled Logic. This menu allows viewing of the BESTlogic
settings for each preprogrammed logic scheme. A custom logic scheme must
be selected on this menu in
order to allow changes to be made to the mode and inputs of the element.
Using the pull-down menus and buttons, make the application appropriate settings to the Breaker Duty
Monitoring function.
To connect the functions BLOCK logic input. Select the Logic button in the Block Accumulation Logic box.
See
Figure 6-8. The BESTlogic Function Element screen for Breaker Duty Monitoring will appear. Then
select the BLOCK input button. The BESTlogic Expression Builder screen will open. Select the
expression type to be used. Then, select the BESTlogic variable, or series of variables to be connected to
the input. Select Save when finished to return to the BESTlogic Function Element screen. For more
details on the BESTlogic Expression Builder, See Section 7, BESTlogic Programmable Logic. Select
Done when the settings have been completely edited.
Figure 6-8. BESTlogic Function Element Screen, Breaker Duty Monitoring
