6-32 BE1-951 Reporting and Alarm Functions 9328900990 Rev L

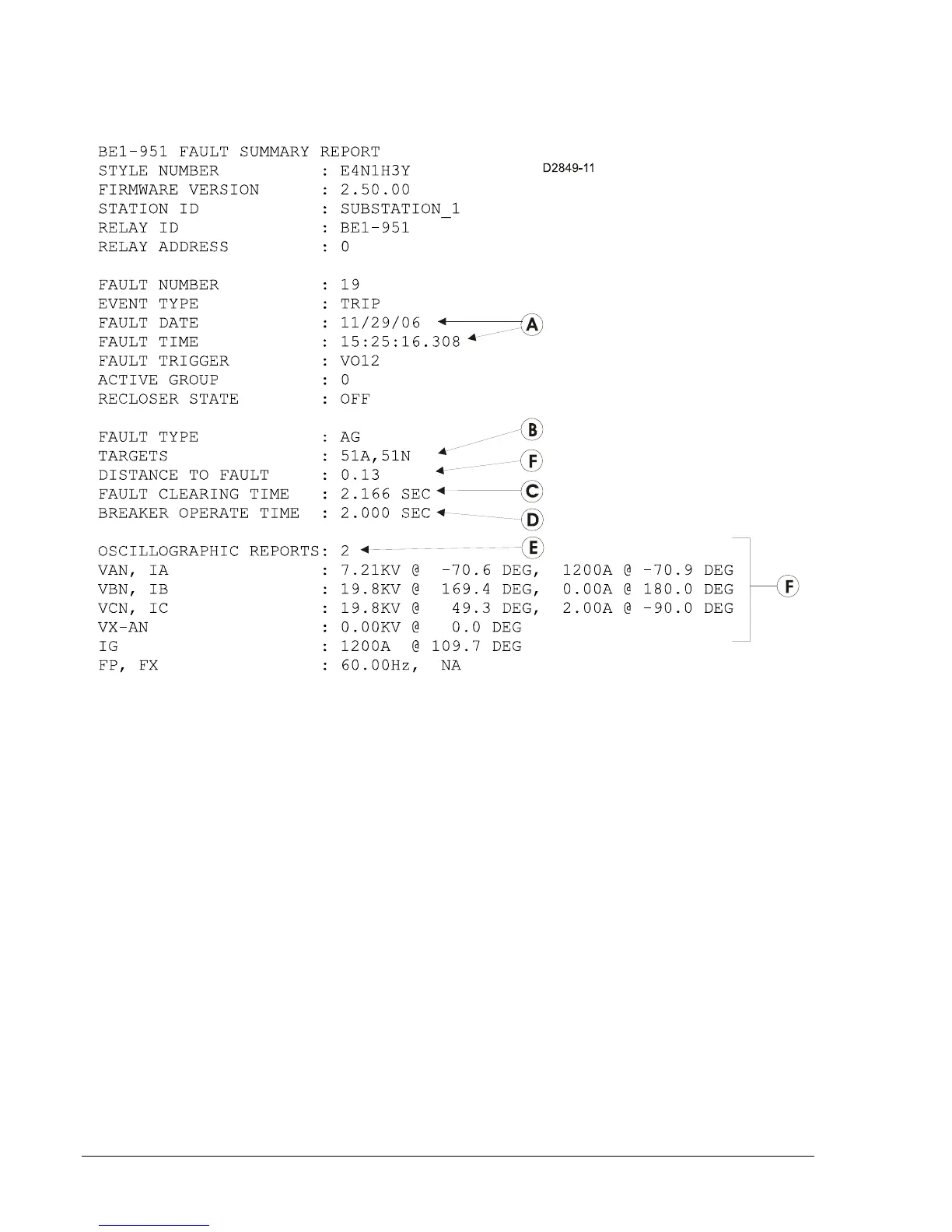

Fault Summary Report Example:
>RF-19
Style Number. This line reports the style number of the relay.
Firmware Version. This line reports the version of firmware that the relay holds.
Station ID and Relay ID. These lines report station and device identifier information as defined by the SG-
ID command.
Relay Address. This line reports the communications port address that the report was requested from.
The relay address number is assigned using the SG-COM command, described in Section 11, ASCII
Command Interface.
Fault Number. This line reports the sequential number (from 1 to 255) assigned to the report by the BE1-
951.
Event Type. This line reports the type of event that occurred. There are five event type categories:
• Trip: A fault was detected as defined by the pickup expression and the relay tripped to clear the
fault.
• Pickup: A fault was detected as defined by the pickup expression but the relay never tripped
indicating that the fault was cleared by another device.
• Logic: A fault report was recorded by the logic trigger expression but no fault was detected as
defined by the pickup expression.
• Breaker Failure: A fault was detected as defined by the pickup expression and the breaker failure
trip became TRUE before the fault was cleared.
• RF=TRIG: A fault report was recorded by the ASCII command interface.
