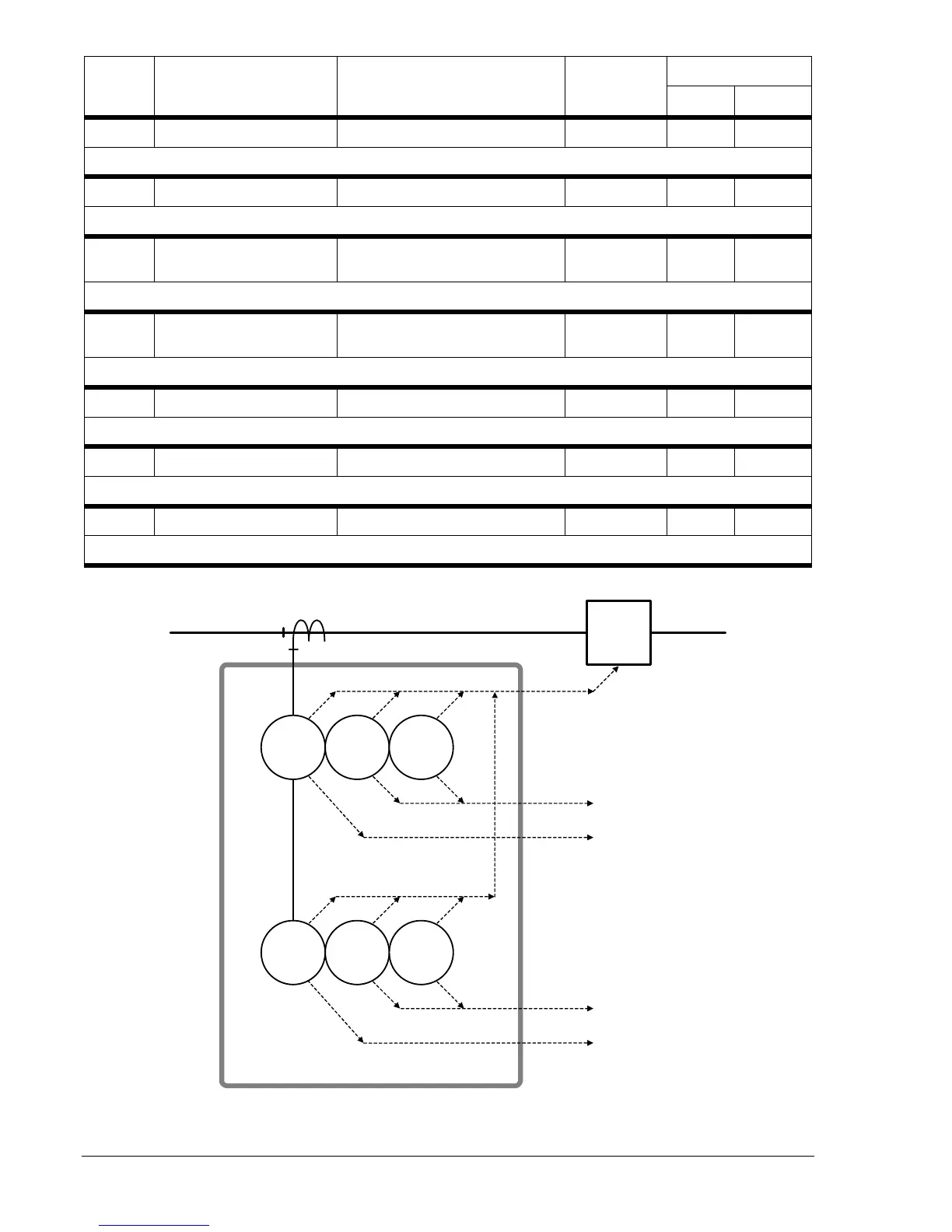

8-6 BE1-951 Application 9328900990 Rev L
State Labels
Output Purpose Description Label
True False
VO9 N/A N/A VO9 TRUE FALSE
BESTlogic Expression: VO9=0
VO10 N/A N/A VO10 TRUE FALSE
BESTlogic Expression: VO10=0
VO11
Protective Trip
Expression.
TRUE when any 50 or 51
element times out.
PROT_TRP TRIP NORMAL
BESTlogic Expression: VO11=50TPT+50TNT+50TQT+51PT+51NT+51QT
VO12
Protection Picked Up
Expression.
TRUE when any 50 or 51
element picks up.
PROT_PU PU NORMAL
BESTlogic Expression: VO12=50TPPU+50TNPU+50TQPU+51PPU+51NPU+51QPU
VO13 N/A N/A VO13 TRUE FALSE
BESTlogic Expression: VO13=0
VO14 N/A N/A VO14 TRUE FALSE
BESTlogic Expression: VO14=0
VO15 N/A N/A VO15 TRUE FALSE
BESTlogic Expression: VO15=0
52
51P 51N 51Q
50TP 50TN 50TQ
OUT2
OUT4
OUT3
OUT5
OUT1 TRIP
BE1-951
D2849-02
07-14-99
Figure 8-1. BASIC-OC One-Line Drawing
