9328900990 Rev L BE1-951 Application 8-13
State Labels
Output Purpose Description Label
True False
VO12
Protection Picked Up
Expression.
TRUE when any 50, 150, or 51
element picks up.
PROT_PU PU NORMAL
BESTlogic Expression:
VO12=50TPPU+50TNPU+50TQPU+150TPPU+150TNPU+150TQPU+51PPU+51NPU+51QPU
VO13 N/A N/A VO13 TRUE FALSE
BESTlogic Expression: VO13=0
VO14 N/A N/A VO14 TRUE FALSE
BESTlogic Expression: VO14=0
VO15 N/A N/A VO15 TRUE FALSE
BESTlogic Expression: VO15=0
52
CLOSE
51P 51N 51Q
OUT1
TRIP
TRIP
IN4
N &Q
ENABLE
BE1-951
50TQ50TN50TP
d2849-08
06-19-99
79
79C
RI
79
SCB
DTL
OUT2
IN3
RI
150TP 150TN 150TQ
IN2
DTL
BLOCK

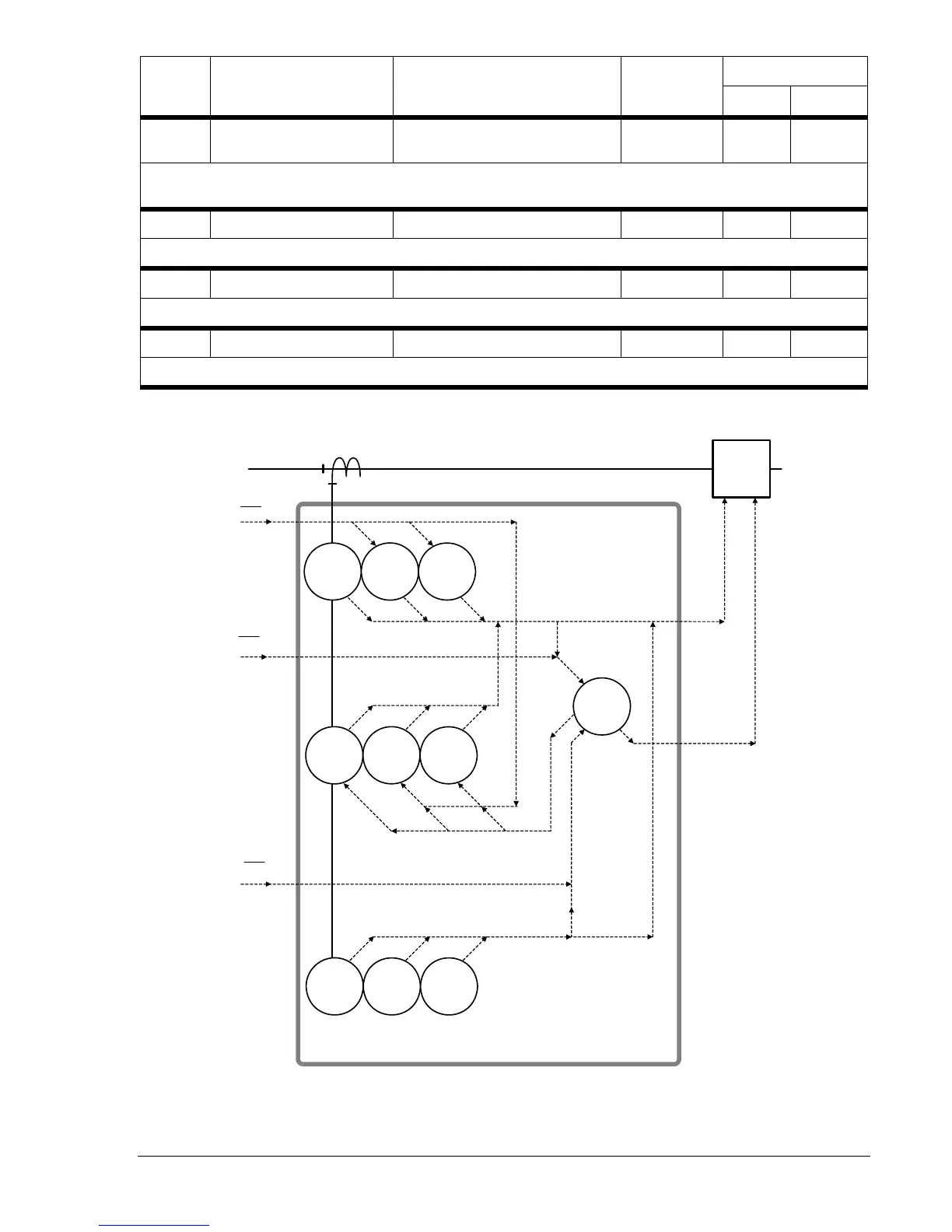

Figure 8-3. OC-W-79 One-Line Drawing
