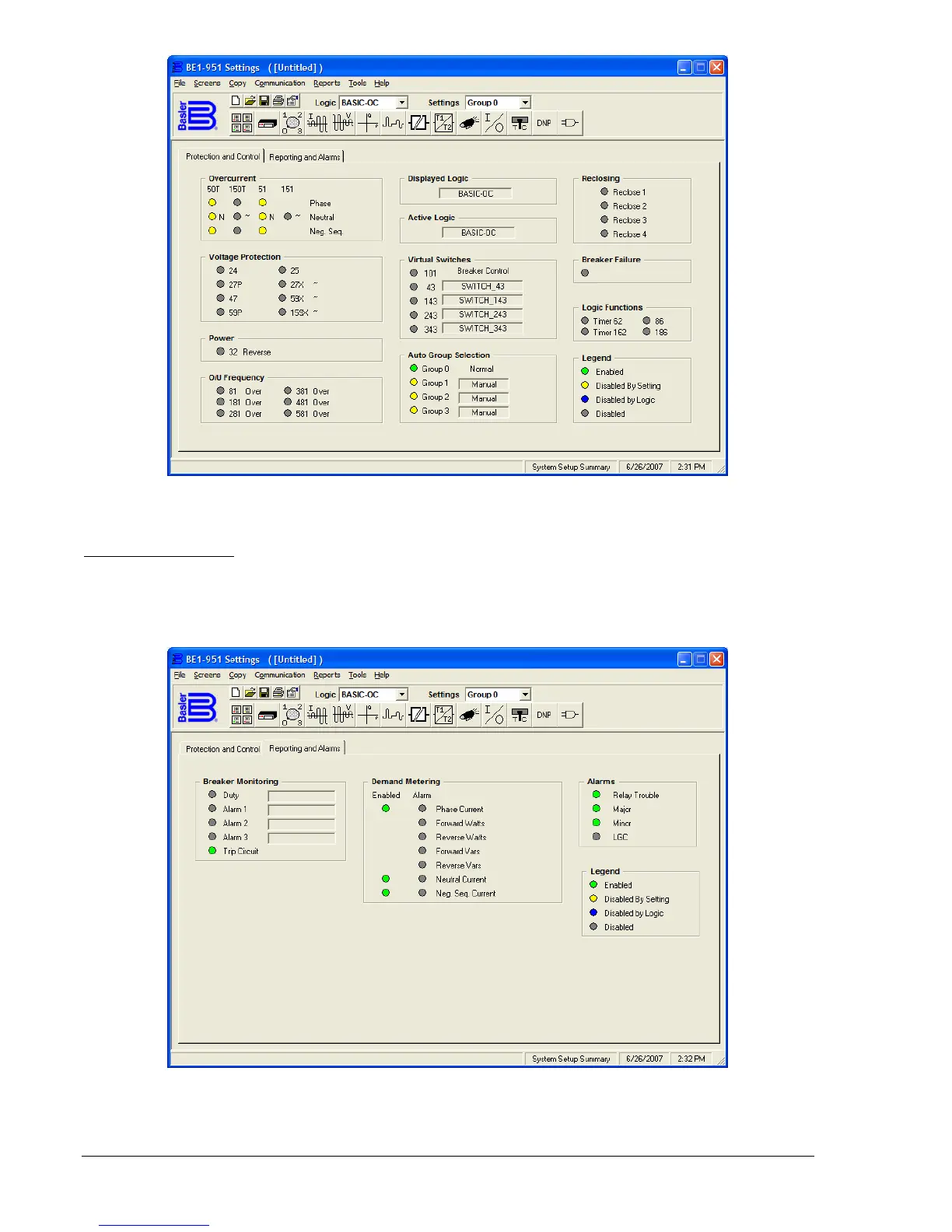

Figure 14-3. System Setup Summary Screen, Protection and Control Tab
Reporting and Alarms
This second tab of the System Setup Summary screen (
Figure 14-4) provides the remaining summary
information for the relay in regard to monitoring, metering, and alarms. Again, a legend for the color-
coding of relay status is provided in the lower right side of the screen.
Figure 14-4. System Setup Summary Screen, Reporting and Alarms Tab
To Next Page
