Roll Width Weight Roll to Use
A0 Width: 841.0 mm (33.1 in) B+E
431.8 mm (17 in) C
609.6 mm (24 in) E
762.0 mm (30 in) B+D
914.4 mm (36 in) G
1,066.8 mm (42 in) C+E
1,117.6 mm (44 in) D+E
Weight Flange
Roll Type
Weight Flange to
Use
Canon Premium Glossy Paper 2 280, Semi-Glossy Photo Paper, Canon Premium Glossy Paper 2 280, Heavy-
weight SemiGlossy Photo Paper, Fine Art Photo, Fine Art Heavyweight Photo, Fine Art Textured, Canvas
Matte, Fine Art Block Print, Fine Art Watercolor, Canon Proofing Paper, Canon Coated Paper, Canon
Heavyweight Coated Paper, Extra Heavyweight Coated Paper, Colored Coated Paper, Adhesive Synthetic
Paper, Synthetic Paper, Backprint Film, Backlit Film, Canon Flame-Resistant Cloth, Fabric Banner, Thin Fab-
ric Banner
Weight Flange
1 (*1)
Premium Matte Paper Weight Flange
2
*1: If you cannot retract stiff paper well using Weight Flange 1 or if the diameter of the retracted paper is wider than the Rewind
Spool, use Weight Flange 2. When using Weight Flange 2, adjust the paper feed amount by executing Auto(GenuinePpr) or
Auto(OtherPaper). (See "Automatic Banding Adjustment.") ➔ P.719
Important
• Do not use combinations other than those identified here.
• Insert the Weight Flange and Weight Joint firmly on the Weight Roll.
• Use identical Weight Flange on the left and right ends. Insert matching Weight Flanges (1 or 2) on both ends of
the Weight Roll.
Note
• Keep unused weight rolls, weight joints, and weight flanges handy by putting them in the box and putting the
box under the Stand.
17

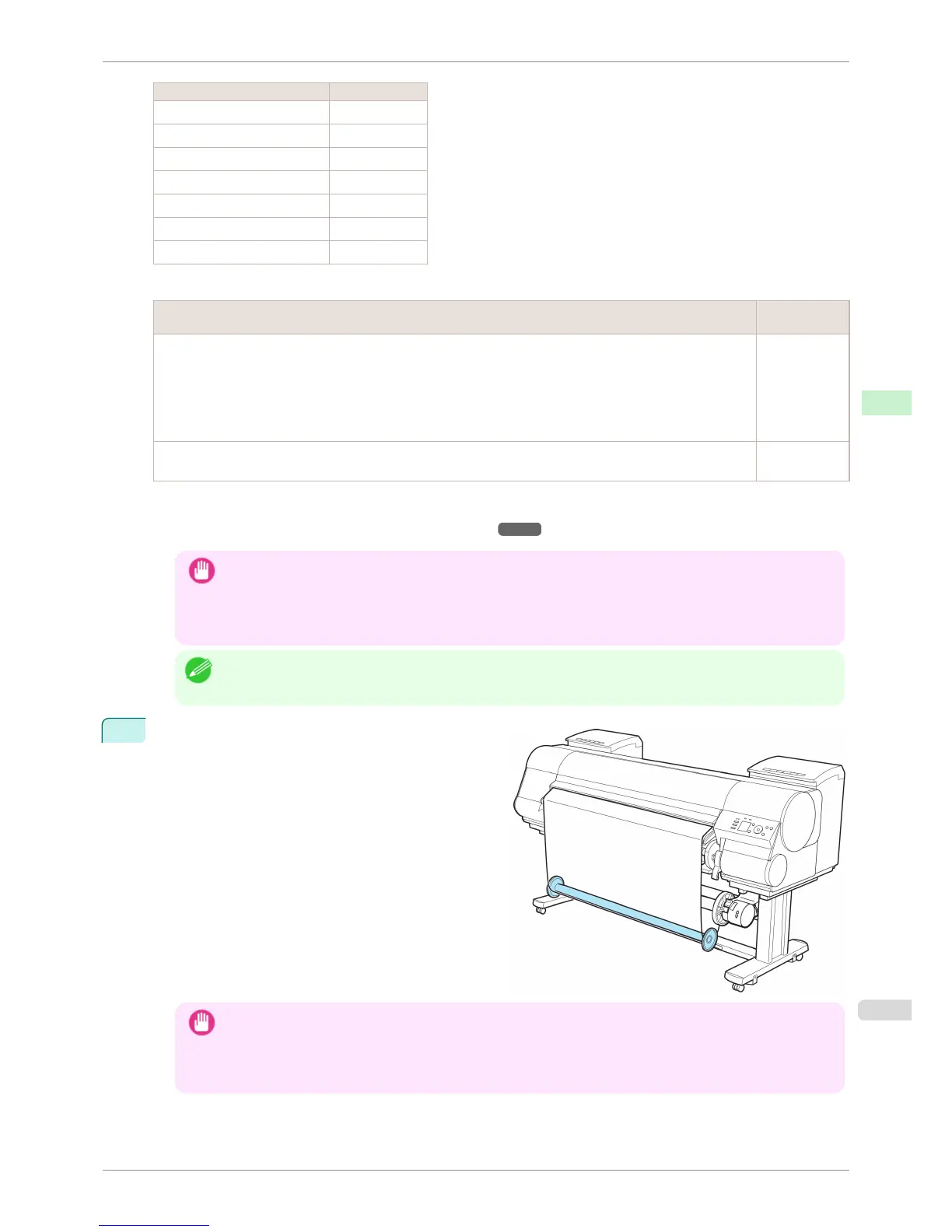

Set the Weight Roll gently on top of the slack in the
roll paper.
The media take-up unit is now ready for use. Printed
rolls can now be rewound automatically.
Important
• Always set the Weight Roll on the paper. Failure to do this may cause rewinding problems.
• When setting the Weight Roll on the paper, avoid touching the paper core and causing the wound roll to be-
come misaligned on the left and right end. If it is misaligned on the left and right ends, a rewinding problem
may result.
iPF8400S
Loading the Rewind Spool on the Media Take-up Unit
User's Guide
Handling and Use of Paper Media take-up unit
513
