Headlight fairing - rear-view mirrors
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_5_1.19.1.html[11/12/2015 18:40:16]
Refitting the rear-view mirrors

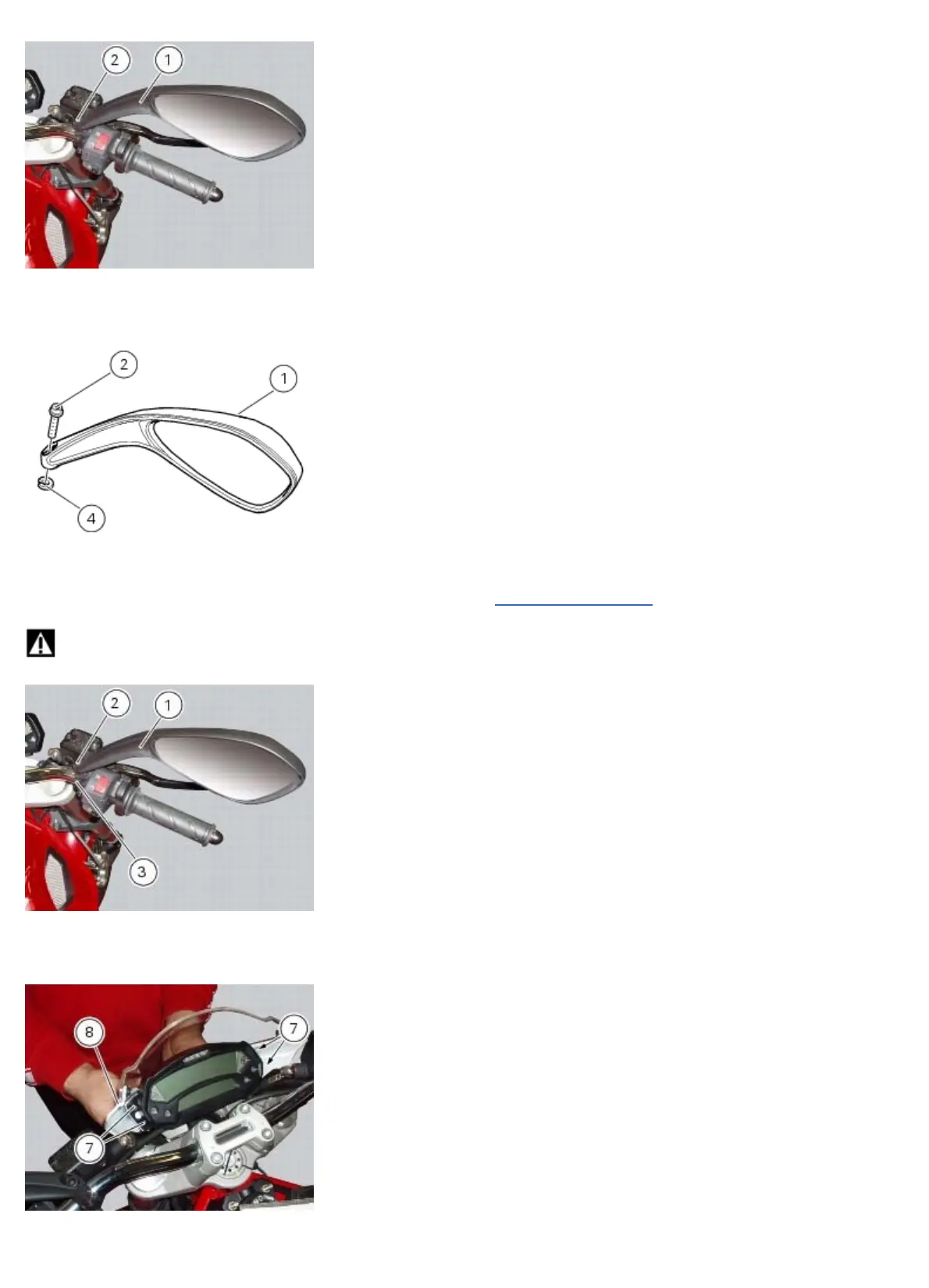

Start the screws (2) in their thread on the rear-view mirrors (1), inserting the washers (4) as shown in the picture.
Insert the rear-view mirrors (1) in the U-bolts (3).
Tighten the screws (2) to a torque of 25 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
Warning
The left rear-view mirror screw (2) has a left-handed threading.
Removal of the headlight fairing
Unscrew the screws (7) and slide out the headlight fairing (8).
To remove the brackets (5) undo the screws (9), while holding the nuts (6).
