Rear swingarm
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_13.51.1.html[11/12/2015 18:40:35]

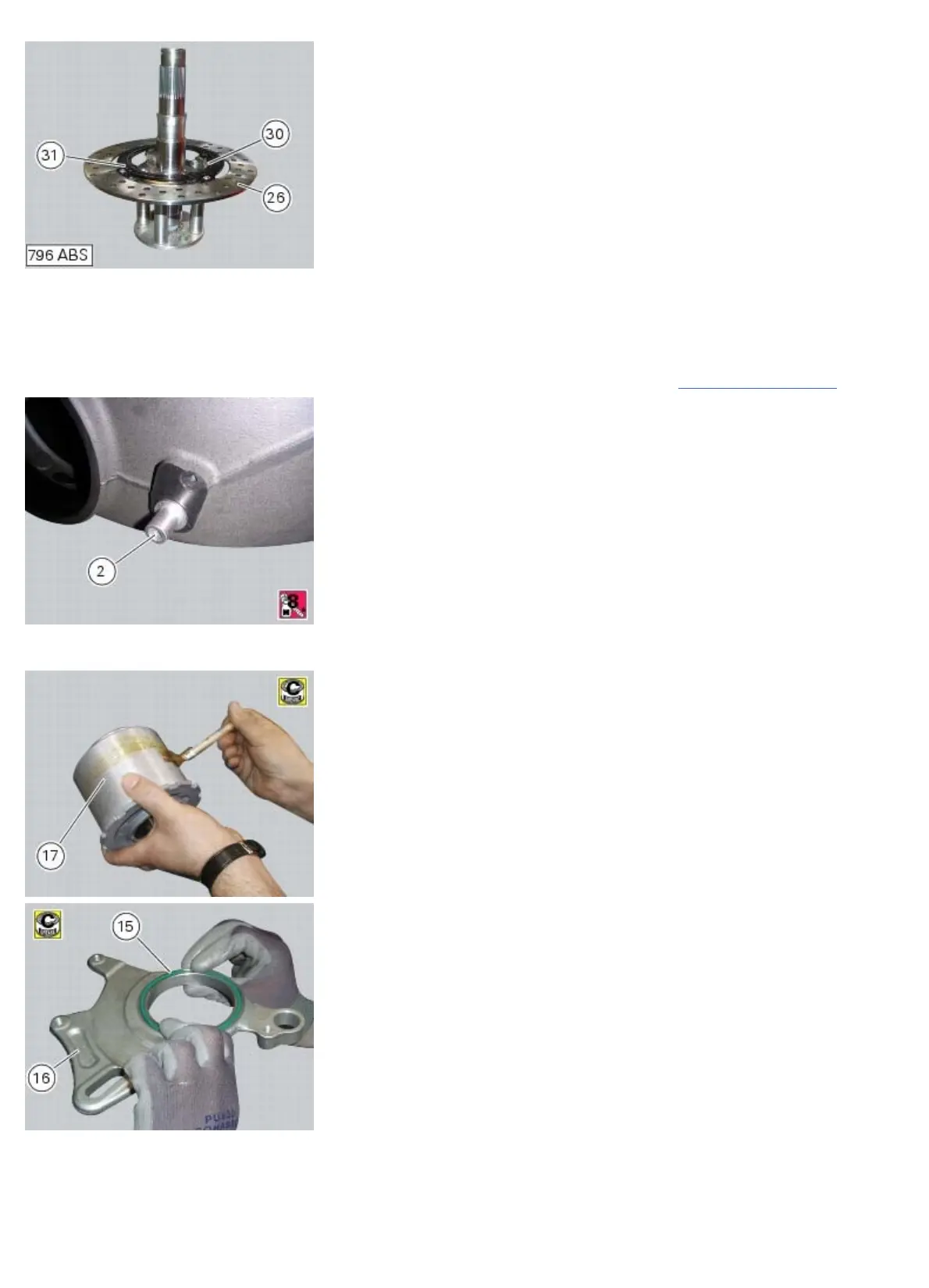

Refitting the rear wheel eccentric hub and rear wheel shaft
If the calliper bracket locating pin (2) was removed during disassembly, apply the recommended threadlocker upon
reassembly, fit it on the swinging arm and tighten to a torque of 33 Nm ±5% (Sect. 3 - 3,
Frame torque settings).
Before refitting, apply the recommended grease on the seat of the eccentric hub (17) on the calliper mounting bracket
(16) on which the rings (15), also greased, will be installed.
Fit the eccentric hub (17) fully home in its housing on swinging arm.
