Clutch assembly: primary drive gears
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_6C.74.1.html[11/12/2015 18:40:49]

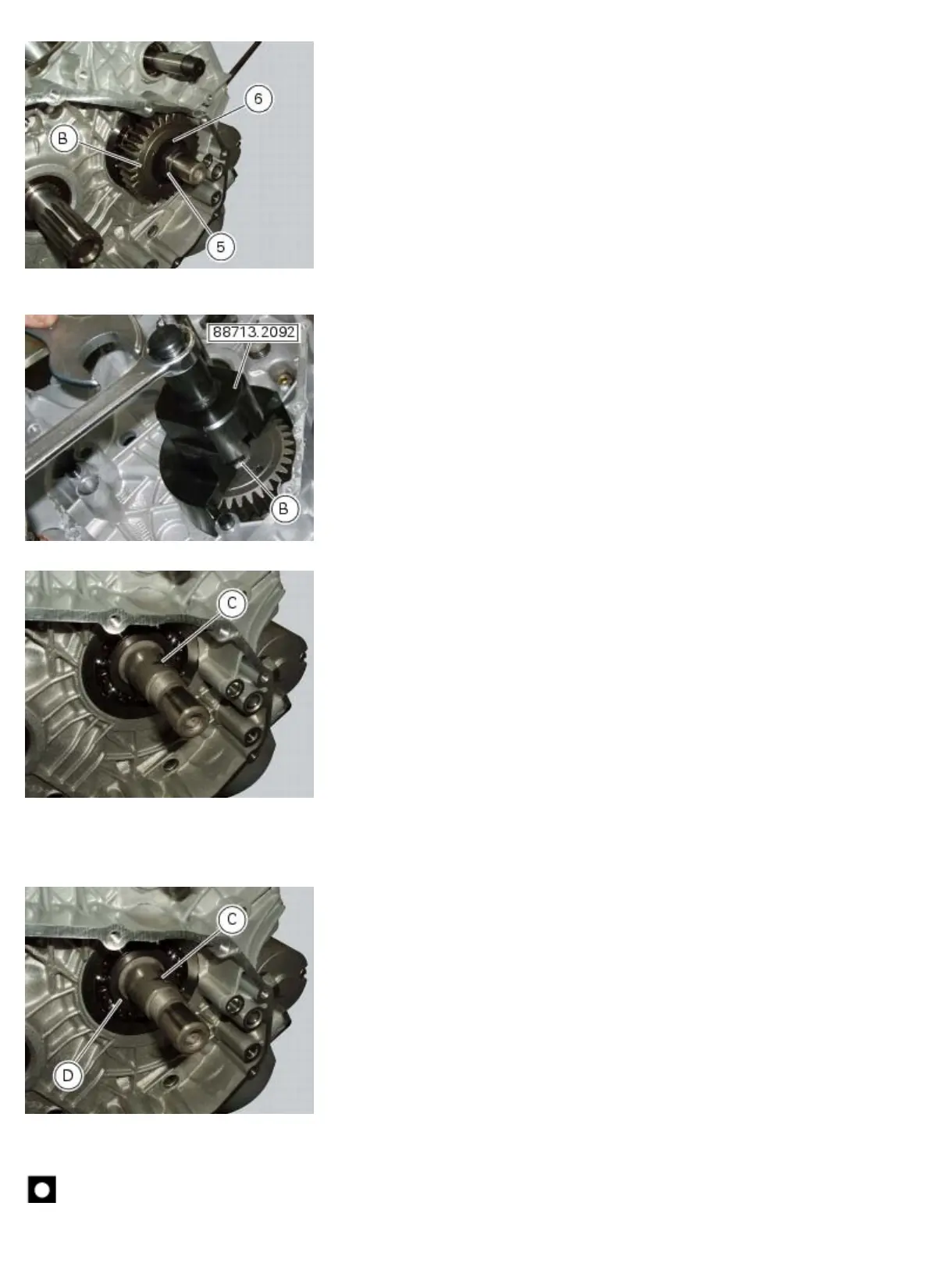

Remove the primary driving gear (B) using puller 88713.2092 and interposing a packing piece of aluminium or copper
between the crankshaft and the screw of the puller.
Take care to recover the key (C) from the crankshaft and the internal spacer.
Refitting the primary drive gears and checking backlash
Fully degrease the crankshaft splined end and the corresponding spline on the primary drive gear.
Check that the key (C) and internal spacer (D) are in position on the crankshaft.
Fit the driving gear (B) onto the crankshaft with the oil pump drive sprocket facing the crankcase.
Temporarily secure the gear with the washer (6) and nut (5).
Important
If fitting a new primary driving gear (B), check the backlash.
