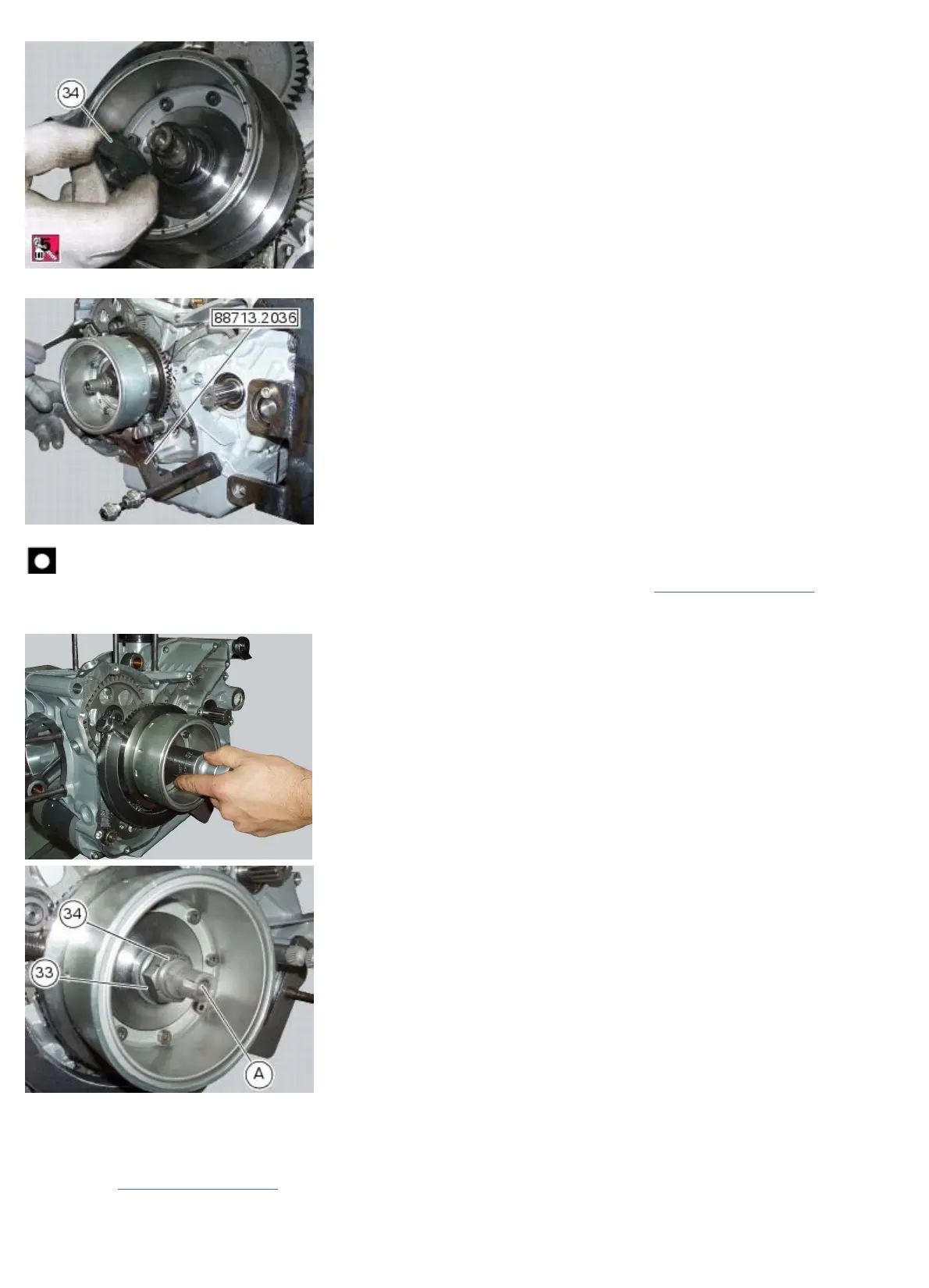

Restrain the rotation of the flywheel with the holding tool 88713.2036.
Important
Tighten the nut (34) to a torque of 270 Nm (Min. 256 Nm - Max. 284 Nm) (Sect. 3 - 3, Engine torque settings).
Remove all traces of Loctite from the threads of the nut (34) and the crankshaft (A).
Reassembly of the generator cover
Fit the stator (32) to the generator cover, routing the cable through the notch in the cover.
Apply threadlocker to the stator retaining screws (24) and tighten them to a torque of 10 Nm (Min. 9 Nm - Max. 11 Nm)
(Sect. 3 - 3,
Engine torque settings).
Fit the cable plate (30) and fix it to the cover with the two screws (31).
Before refitting, make sure that the crankshaft end bearing (26) and relative retaining ring (27) are installed on the
generator cover (28).
