Crankcase assembly: external components
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9A.78.1.html[11/12/2015 18:40:52]
Operations Section reference
Refit the cylinder barrel/piston
assemblies
9 - 5, Refitting the cylinder/piston
assembly
Refit the cylinder heads 9 - 4.4, Refitting the cylinder head
assembly
Refit the timing belts 9 - 4.2, Refitting the timing
system assembly
Refit the timing belt covers 9 - 4.2, Refitting the timing belt
covers
Refit the engine starter system 6 - 3, Electric starting system
Refit the generator cover 9 - 8, Refitting the generator cover
Refit the oil pump 9 - 2.1, Refitting the oil pump
Refit the clutch assembly 9 - 6.1, Refitting the APTC clutch
Refit the clutch cover 9 - 6.2, Refitting the clutch cover
Refit the engine to the frame 9 - 1, Refitting the engine
Removal of the timing gears
Operations Section reference
Drain the engine oil 4 - 3, Changing the engine oil and
filter cartridge
Remove the gearchange control 7 - 9,
Removal of the gearchange
control
Remove the clutch transmission
unit
7 - 8.2,
Removal of the clutch
transmission unit
Remove the front sprocket cover 7 - 14,
Removing of the front
sprocket
Remove the generator cover 9 - 8,
Removal of the generator
cover
Remove the flywheel/alternator
assembly
9 - 8,
Removal of the
flywheel/alternator assembly

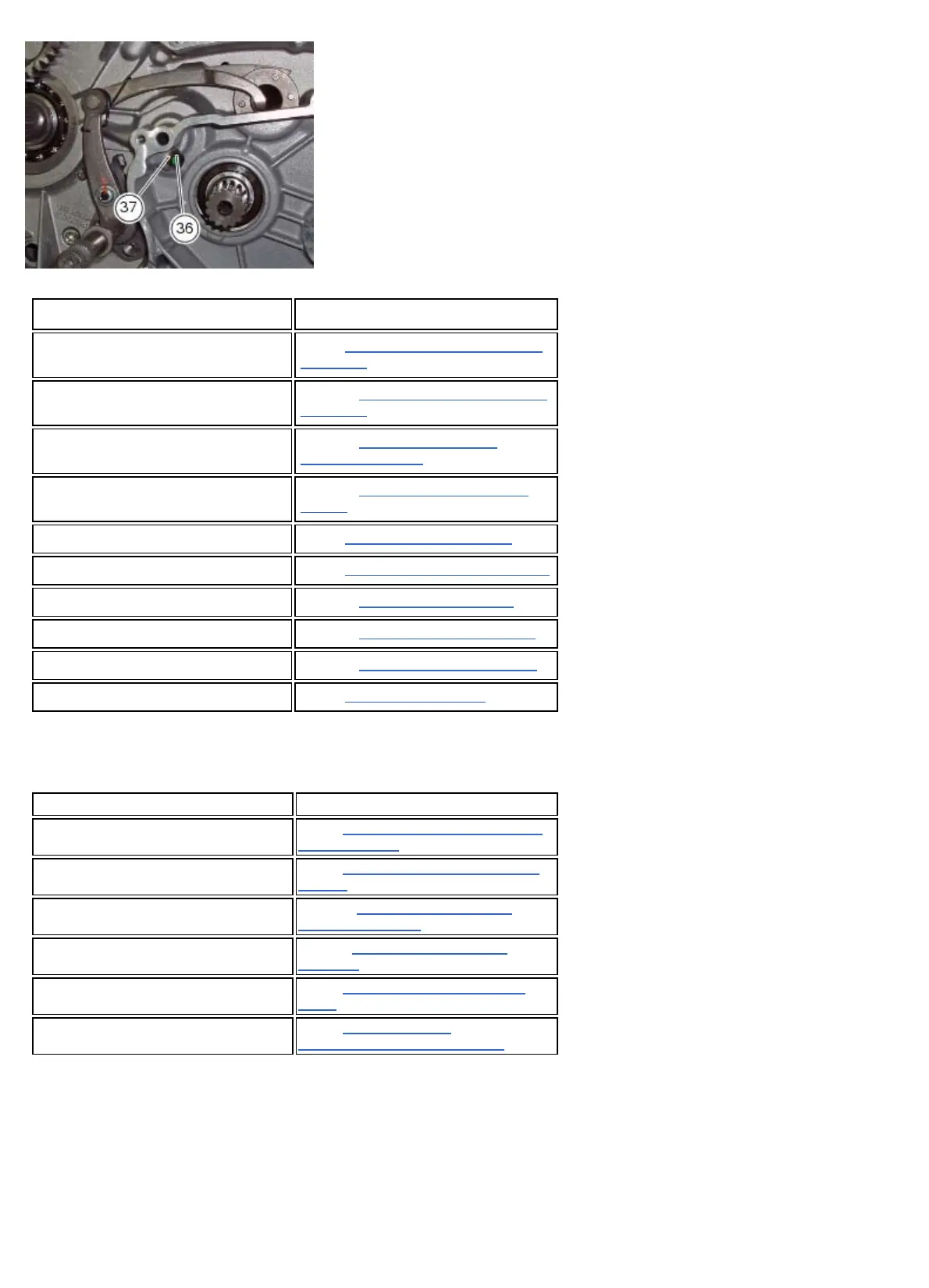

Slide out driving gear (A) of timing gear pair (2).
Relieve the staking on the lock washer (3) of the nut (4) that locks timing gear in place.
Restrain the driven timing gear by inserting a pin in one of the holes, and unscrew the nut (4).
