Crankcase assembly: external components
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9A.78.1.html[11/12/2015 18:40:52]

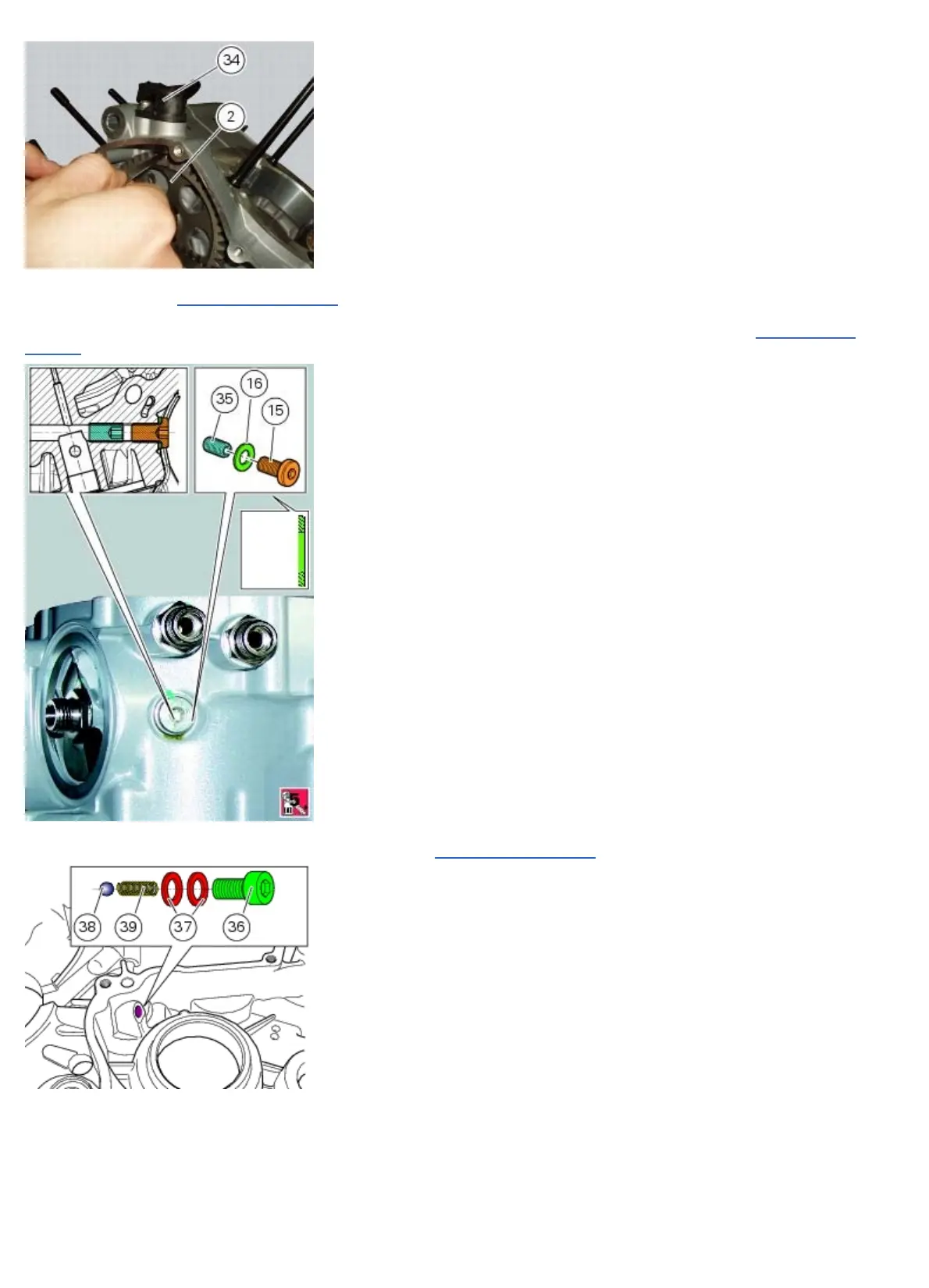

If removed, apply prescribed threadlocker on the dowel (35), tighten the dowel to a torque of 15 Nm (Min. 13 Nm - Max.
17 Nm) (Sect. 3 - 3,
Engine torque settings), insert the gasket (16) on the service plug (15): the seal must be oriented so
that the square edge faces the clutch-side crankcase half. Apply the recommended threadlocker to the plug thread (15),
fit it onto the crankcase and tighten it to a torque of 15 Nm (Min. 13 Nm - Max. 17 Nm) (Sect. 3 - 3,
Engine torque
settings).
Insert the ball (38) and the spring (39) on the crankcase and screw in the bush (36) with the seal (37), tightening it to a
torque of 10 Nm (Min. 9 Nm - Max. 11 Nm) (Sect. 3 - 3,
Engine torque settings).
