Ducati Monster 796 - 2 Rear Wheel; Removal of the Rear Wheel

Rear wheel
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_2.39.1.html[11/12/2015 18:40:29]

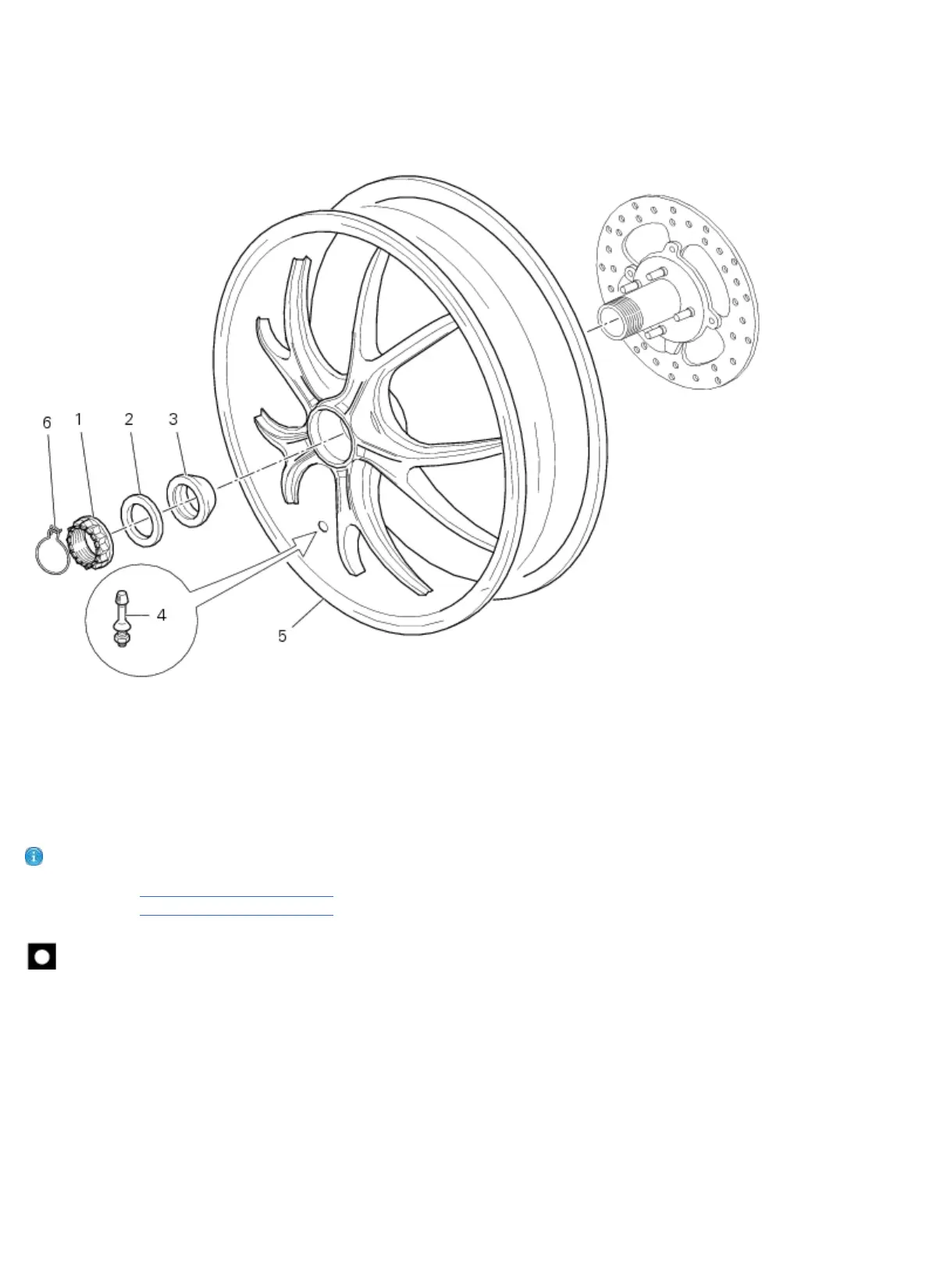

2 -Rear wheel
1 Right-hand wheel nut
2 Washer
3 Bush
4 Valve
5 Wheel
6 Circlip
Spare parts catalogue
796
FRONT AND REAR WHEELS
796 ABS
FRONT AND REAR WHEELS
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in
the exploded view diagram.
Removal of the rear wheel
Place the motorcycle on the rear service stand and engage the 1
st
gear.
Remove the circlip (6) securing the wheel nut.
Using a suitable socket wrench, loosen the wheel nut (1).
Fully unscrew the nut (1), then slide off the washer (2) and the bush (3).
