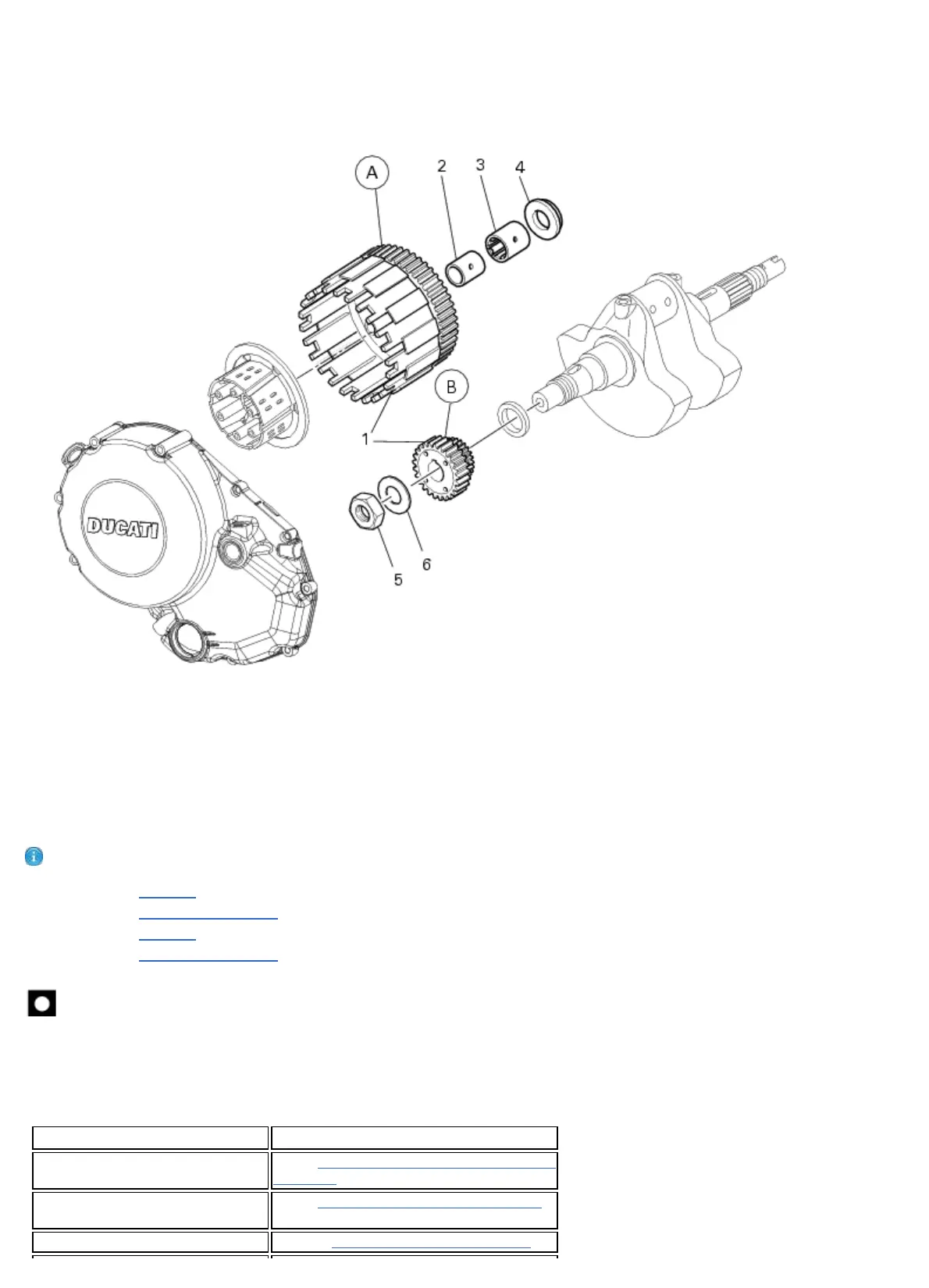

6.3 -Clutch assembly: primary drive gears
1 Clutch drum/Primary drive gears
2 Inner ring
3 Inner bearing
4 Spacer
5 Threaded ringnut
6 Lock washer
Spare parts catalogue
796
CLUTCH
796
CONNECTING RODS
796 ABS
CLUTCH
796 ABS
CONNECTING RODS
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in
the exploded view diagram.
Removal of the primary drive gear
Operations Section reference
Drain the engine oil 4 - 3, Changing the engine oil and filter
cartridge
Disconnect the oil pressure
sensor
6 - 5,
Checking the indicating devices
Remove the clutch cover 9 - 6.2,
Removal of the clutch cover
