Ducati Monster 796 - Removal of the Rear Wheel Eccentric Hub and Rear Wheel Shaft

Rear swingarm
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_13.51.1.html[11/12/2015 18:40:35]
32 Pin
33 Screw
34 Screw
35 Rubber block*
36 Hose clip*
37 Spacer*
38 Hose clip*
39 Rubber block*
40 Spacer*
Spare parts catalogue
796
REAR WHEEL AXLE
796
SWINGARM
796 ABS
REAR WHEEL AXLE
796 ABS
SWINGARM
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in
the exploded view diagram.
Note
* The marked parts are present only in the “ABS“ version.
Removal of the rear wheel eccentric hub and rear wheel shaft
Before removing the eccentric hub, you must first remove the parts listed below.
Operations Section reference
Slacken the chain 4 - 3,
Adjusting the chain tension
Remove the rear wheel 7 - 2,
Removal of the rear wheel
Remove the rear sprocket 7 - 14,
Replacing of the rear
sprocket

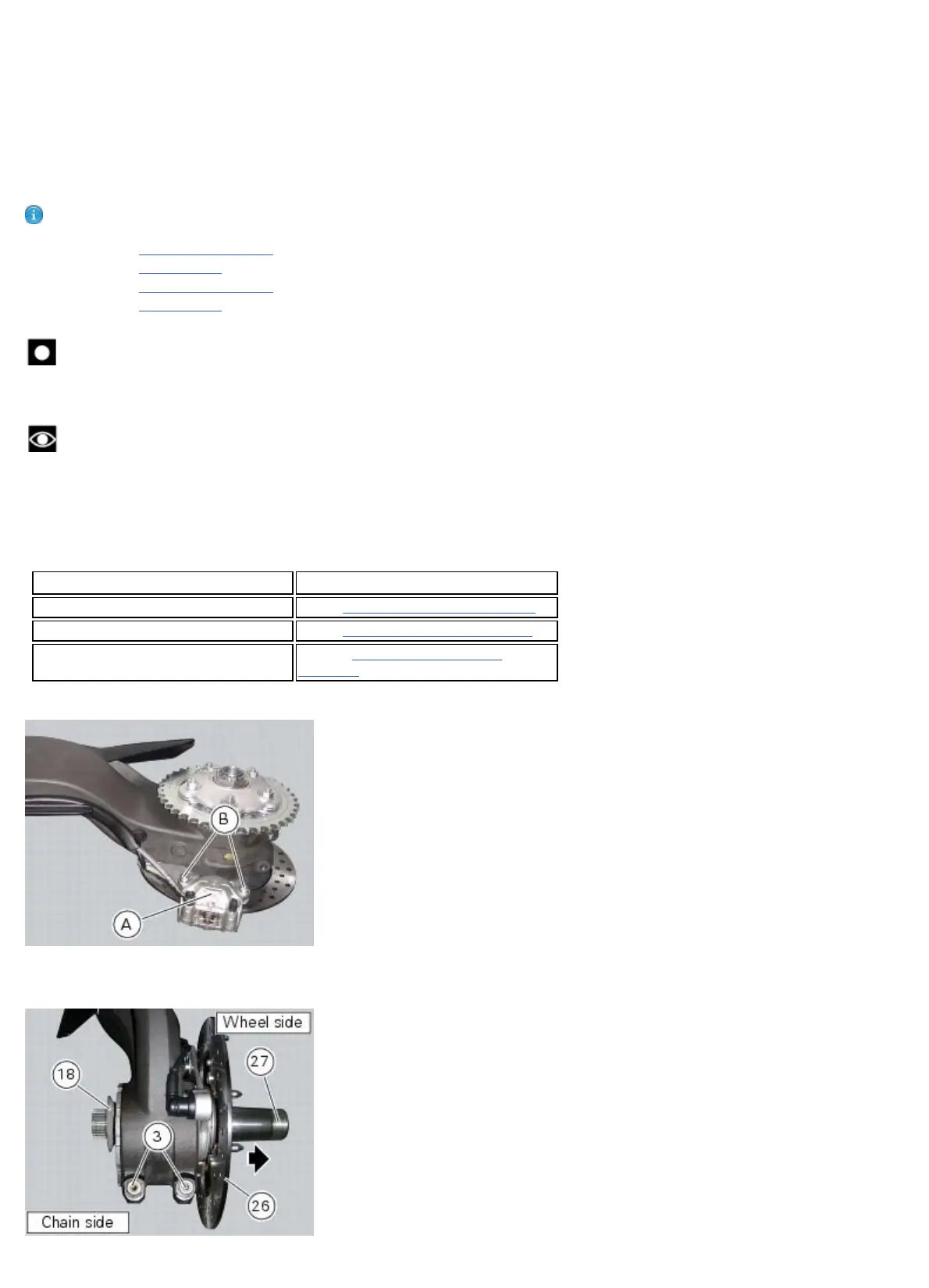

Remove the rear brake calliper (A) by unscrewing the two screws (B).
Slacken off the screws (3).
Withdraw the spacer (18) on the chain side and withdraw the wheel shaft (27) complete with brake disc (26) from the
opposite side.
Remove the circlip (19) on the wheel side of the eccentric hub.
