Final drive
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_14.52.1.html[11/12/2015 18:40:36]

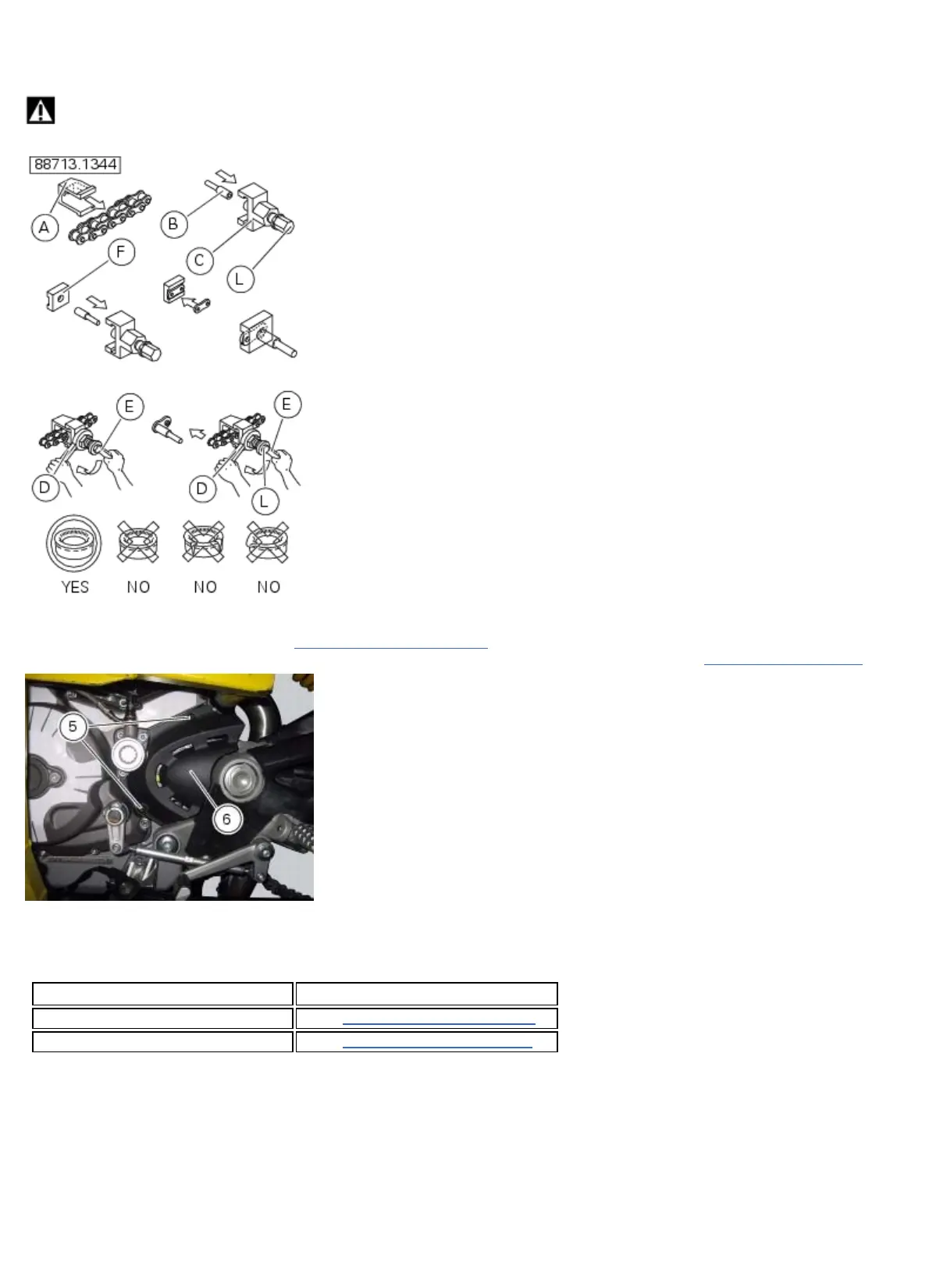

Use wrenches (D) and (E) to turn the bolt clockwise until the punch (B) is seated against the chain plate.
To complete reassembly, repeat the entire procedure with the second pin.
Warning
Carefully check the two pins: the figure shows the correct result of the procedure.
Adjust the chain tension (Sect. 4 - 3, Adjusting the chain tension).
Place the sprocket cover (6) tightening the screws (5) to a torque of 6 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
Replacing of the rear sprocket
Operations Section reference
Slacken the chain 4 - 3, Adjusting the chain tension
Remove the rear wheel 7 - 2,
Removal of the rear wheel
Remove the circlip (18) from the nut (8).
Restrain the wheel shaft against rotation and, using a socket wrench, loosen the nut (B).
