Ducati Monster 796 - Removal of the Gearbox Assembly

Gearbox assembly: gearbox shafts
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_7B.76.1.html[11/12/2015 18:40:50]
29
5
th
, 6
th
speed selector fork
30 Selector fork shaft
31 Shim, thickness 1
32 Needle roller retaining circlip
Spare parts catalogue
796
GEARCHANGE CONTROL
796
GEARBOX
796 ABS
GEARCHANGE CONTROL
796 ABS
GEARBOX
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in
the exploded view diagram.

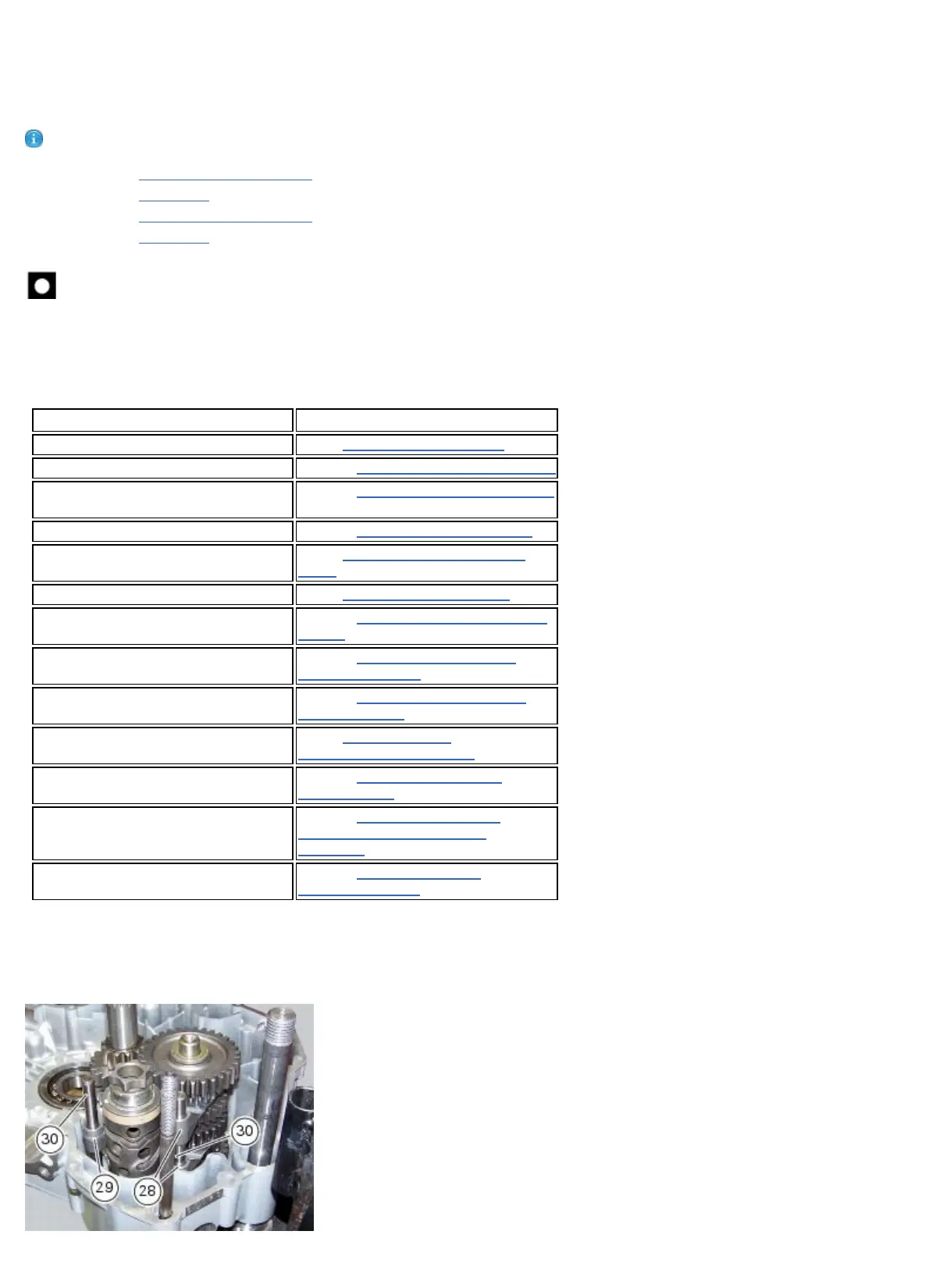

Removal of the gearbox assembly
Operations Section reference
Remove the engine from the frame 9 - 1, Removal of the engine
Remove the clutch cover 9 - 6.2,
Removal of the clutch cover
Remove the complete clutch
assembly
9 - 6.1,
Removal of the APTC clutch
Remove the lubrication system 9 - 2.1,
Removal of the oil pump
Remove the generator cover 9 - 8,
Removal of the generator
cover
Remove the engine starting system 6 - 3,
Electric starting system
Remove the side timing belt covers 9 - 4.2,
Removal of the timing belt
covers
Remove the timing belts 9 - 4.2,
Removal of the timing
system assembly
Remove the cylinder heads 9 - 4.4,
Removal of the cylinder
head assembly
Remove the cylinder barrel/piston
assemblies
9 - 5,
Removal of the
cylinder/piston assembly
Remove the gear selector lever 9 - 7.1,
Removal of the gear
selector lever
Remove the gear interlock plunger 9 - 7.1,
Disassembly of gear
interlock plunger and pawl
assembly
Separation of the crankcase halves 9 - 9.2,
Separation of the
crankcase halves
Withdraw the selector fork shafts (30).
Move the forks (28) and (29) to disengage them from the slots in the selector drum.
Remove the selector drum (13) taking care not to lose shims (31) and (27) mounted on the shaft. Note that the
positions of the shims must not be inverted.
Now you can renew the needle roller retaining ring (32) and the special needle rollers (14).
Remove gear selector forks (29) and (28).
