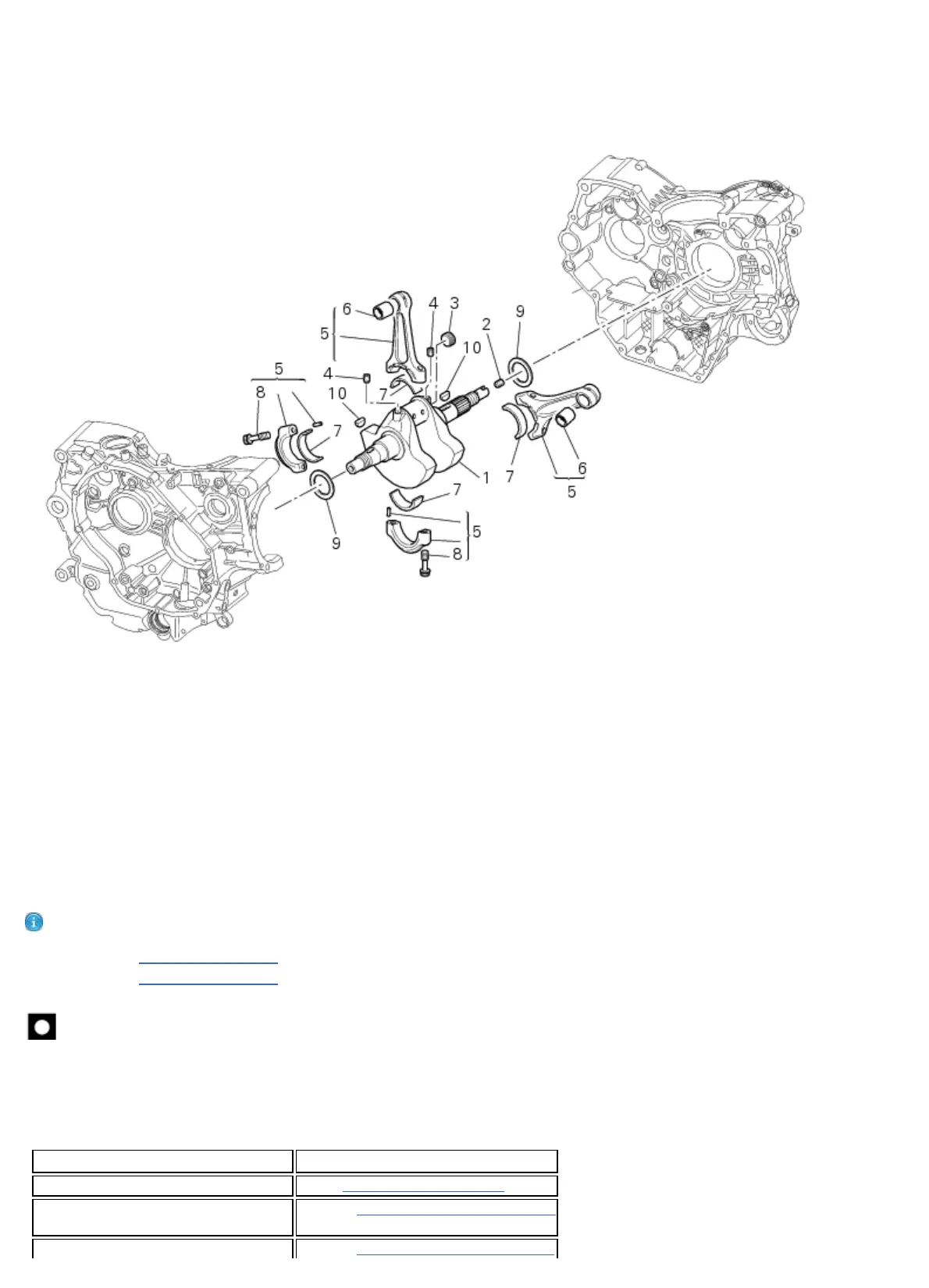

9.3 -Crankcase assembly: crankshaft/connecting rods assembly
1 Crankshaft
2 Drilled grub screw
3 Plug
4 Grub screw
5 Connecting rod assembly
6 Bush
7 Half bearing
8 Banjo bolt
9 Shim washer
10 Key
Spare parts catalogue
796
CONNECTING RODS
796 ABS
CONNECTING RODS
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in
the exploded view diagram.
Removal of the crankshaft/connecting rods assembly
Operations Section reference
Remove the engine from the frame 9 - 1, Removal of the engine
Remove the clutch-side crankcase
cover
9 - 6.2,
Removal of the clutch cover
Remove the complete clutch 9 - 6.1,
Removal of the APTC clutch
