Refitting the ABS control unit
When refitting the system, pay attention to the orientation of the couplings of the hoses (7), (8), (9) and (10).
Warning
If incorrectly positioned, the hose can affect brake operation and foul moving parts.

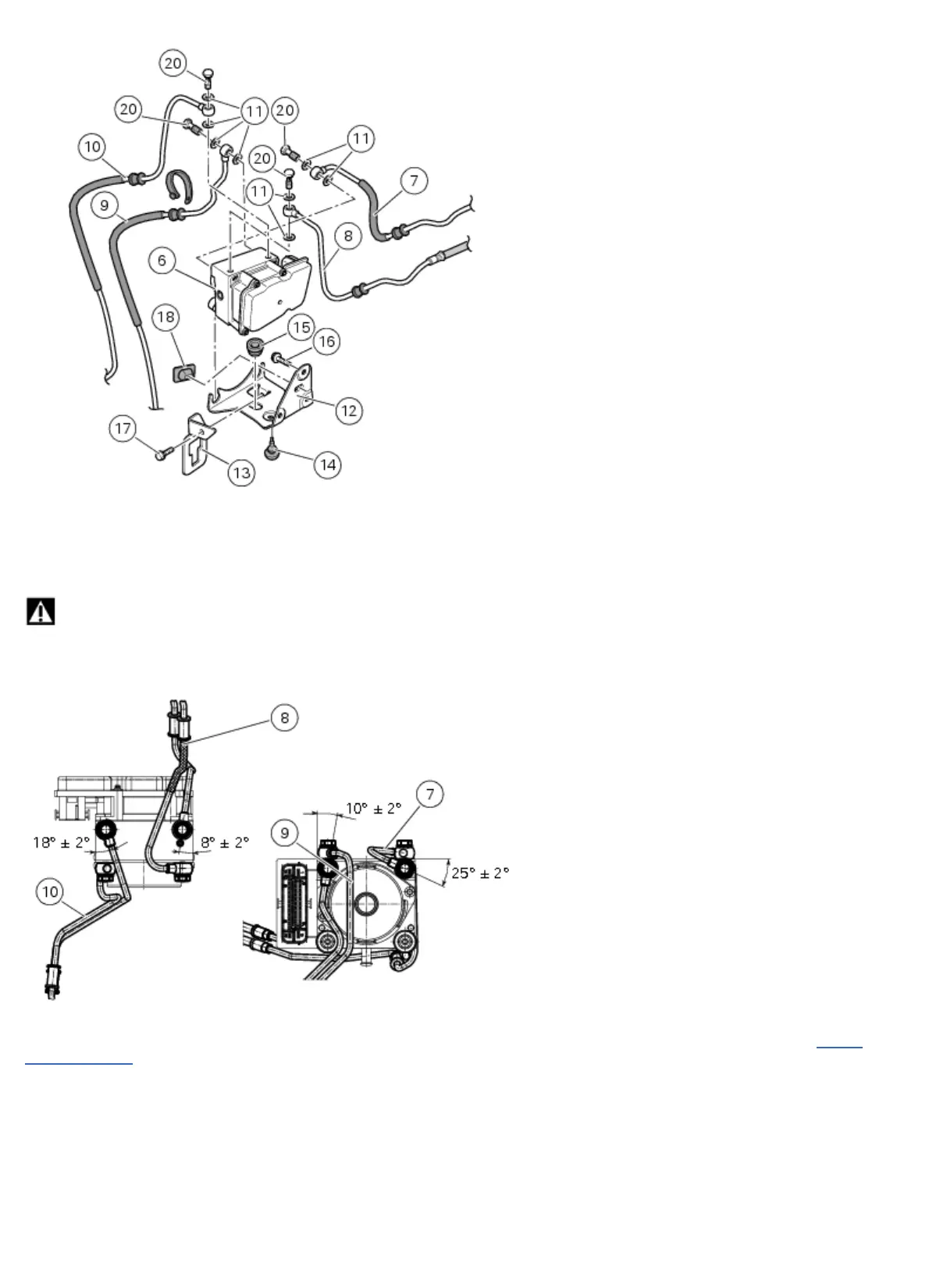

Position the hose as shown in the figure.
Refitting is the reverse of removal.
In particular, use a new gasket set (11) and tighten the screws (23) to a torque of 23 Nm ±10% (Sect. 3 - 3,
Frame
torque settings).
