Clutch assembly: APTC wet clutch
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_6A.72.1.html[11/12/2015 18:40:48]
Refitting the APTC clutch

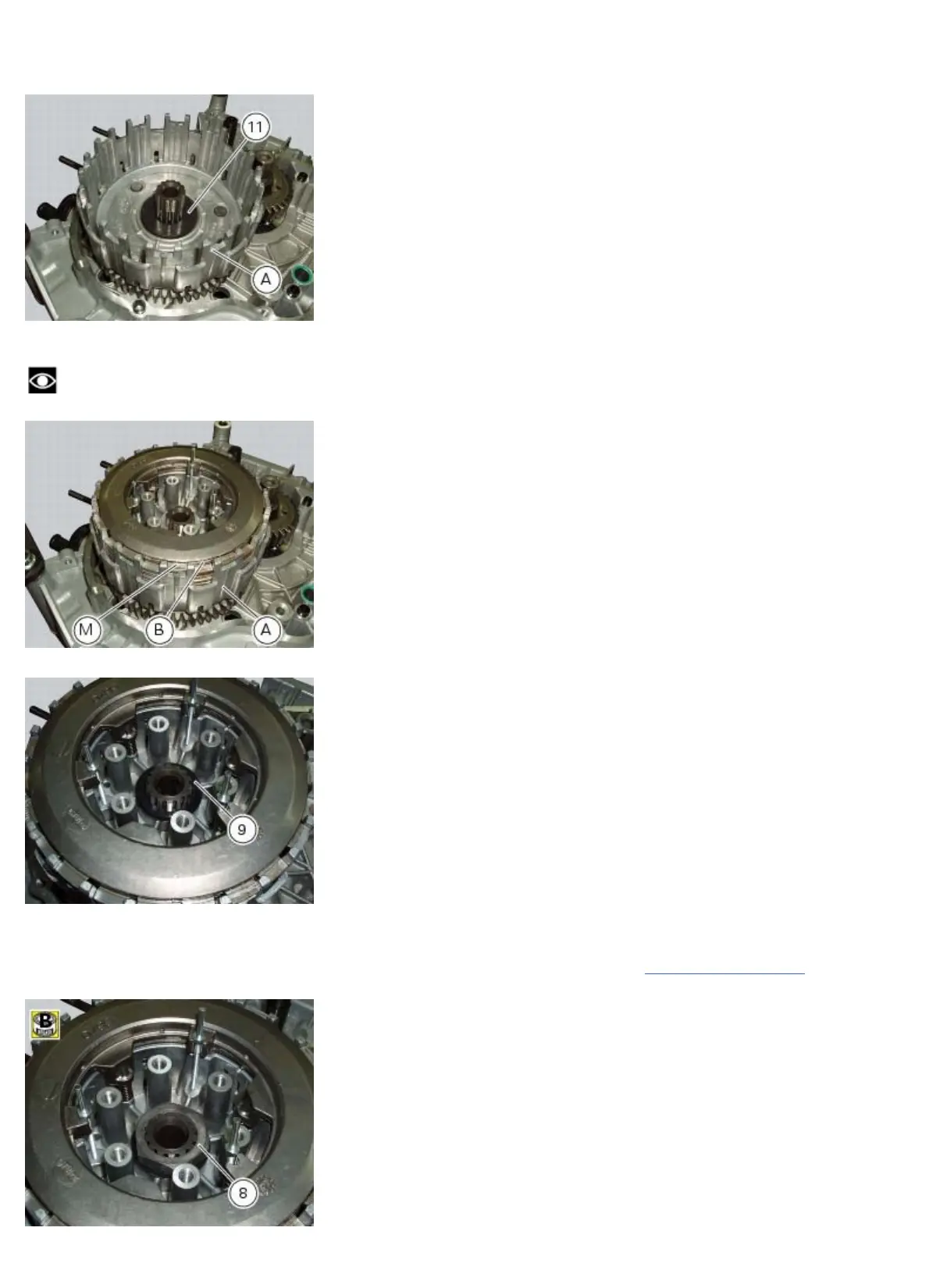

Locate the spacer (11) on the drum (A).
Position the hub-plates-drum assembly (B) inside the drum (A).
Note
Place the last clutch plate (M) offset with respect to the others.
Locate the lock washer (9) on the primary shaft, seating it against the clutch assembly.
Apply the recommended grease to the contact face of the nut (8) and to thread of the primary shaft, then fit the nut to
the input shaft and tighten by hand.
Restrain the clutch drum with tool part no. 88713.2556 when tightening nut (8).
Tighten the nut (8) to a torque of 190 Nm (Min. 180 Nm - Max. 200 Nm) (Sect. 3 - 3,
Engine torque settings).
Remove service tool no. 88713.2556.
